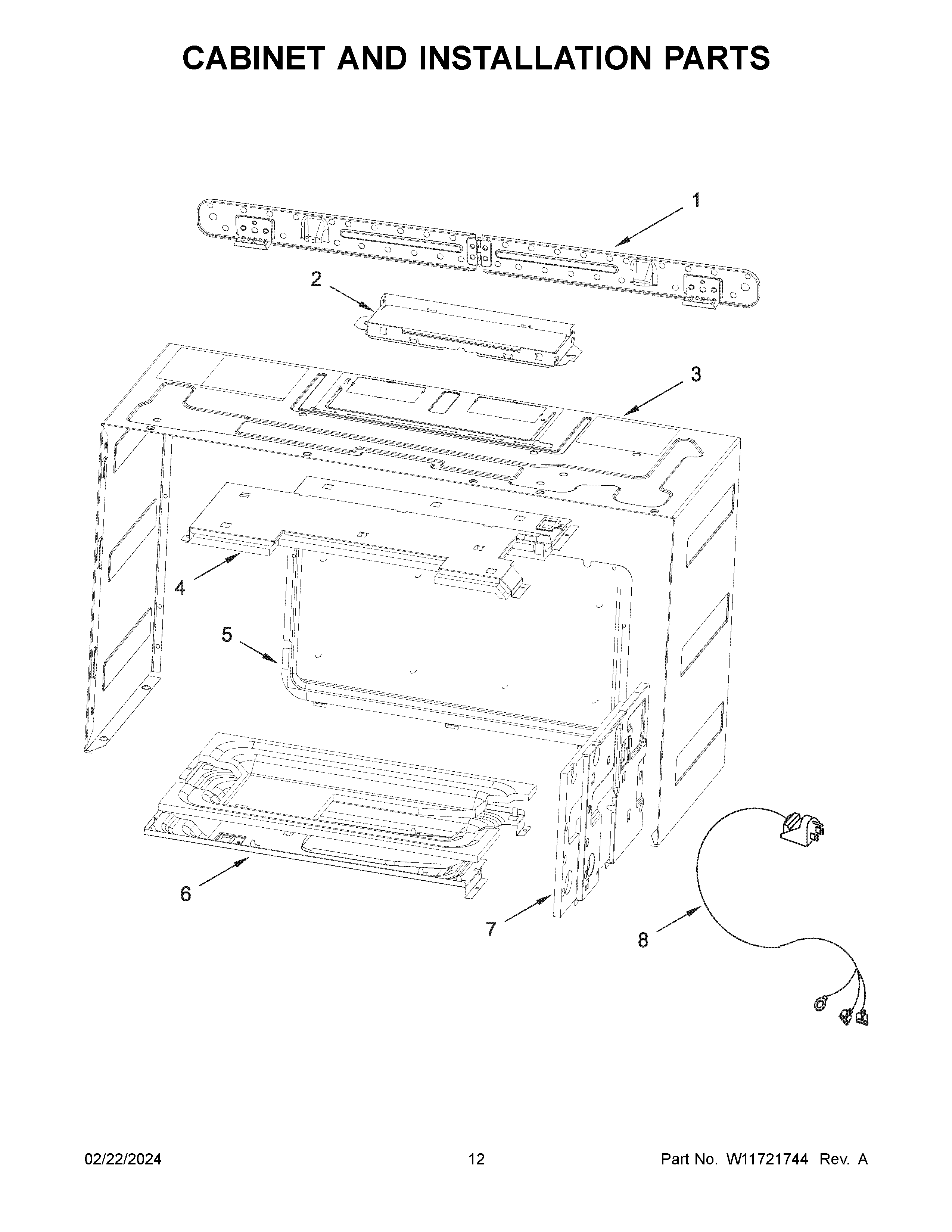

KMMF530PBS00 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIPLATE-MTNG
NIMISCELLANEOUS PARTS, HARNESS, VENT MOTOR TO ACU
NIW11630290 Whirlpool Mounting Hardware
NIMISCELLANEOUS PARTS, HARNESS, CAVITY LED TO ACU
NIMISCELLANEOUS PARTS, HARNESS, HOOD LED TO ACU
NIMISCELLANEOUS PARTS, SIGNAL HARNESS, HMI TO DOOR HINGE
NIMISCELLANEOUS PARTS, HARNESS, MIMAS TO ACU
NIMISCELLANEOUS PARTS, MOUNTING KIT, SILICONE SPACERS
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIMISCELLANEOUS PARTS, SIGNAL HARNESS, DOOR & ODM TO ACU
NIMISCELLANEOUS PARTS, HARNESS, DOOR HINGE TO ACU
1W11593197 Whirlpool Mounting Plate
2W10843943 Whirlpool Microwave Vent Damper
3AW11593183 Whirlpool Cabinet Wrapper
3CASE, OUTER (WHITE)
4INSULATION, TOP PLATE
5INSULATION, BACK PLATE
6INSULATION, BOTTOM PLATE
7INSULATION, RIGHT PLATE
8CORD, POWER
