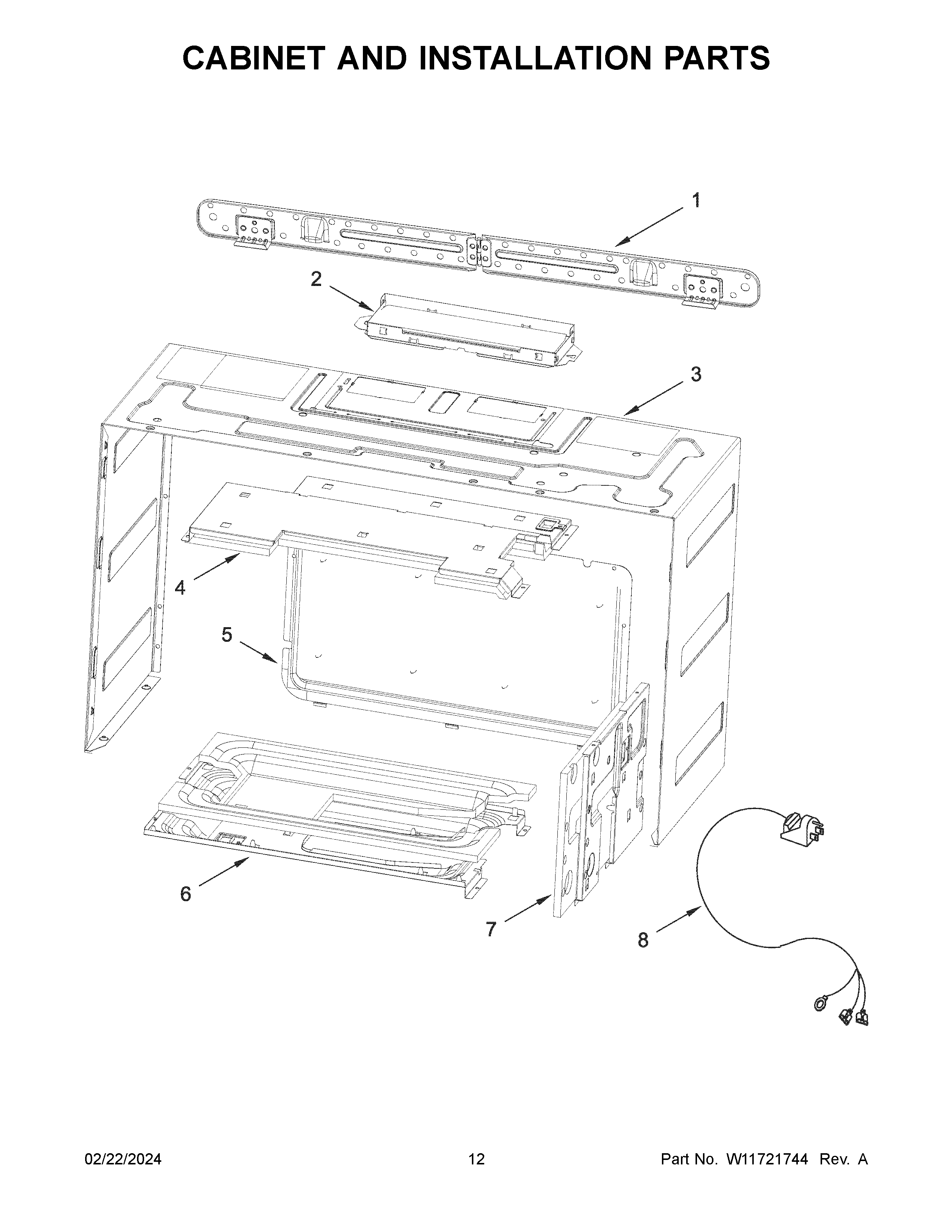

KMMF530PPS00 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	PLATE-MTNG
NI	MISCELLANEOUS PARTS, HARNESS, VENT MOTOR TO ACU
NI	W11630290 Whirlpool Mounting Hardware
NI	MISCELLANEOUS PARTS, HARNESS, CAVITY LED TO ACU
NI	MISCELLANEOUS PARTS, HARNESS, HOOD LED TO ACU
NI	MISCELLANEOUS PARTS, SIGNAL HARNESS, HMI TO DOOR HINGE
NI	MISCELLANEOUS PARTS, HARNESS, MIMAS TO ACU
NI	MISCELLANEOUS PARTS, MOUNTING KIT, SILICONE SPACERS
NI	MISCELLANEOUS PARTS, HARNESS, MAIN
NI	MISCELLANEOUS PARTS, SIGNAL HARNESS, DOOR & ODM TO ACU
NI	MISCELLANEOUS PARTS, HARNESS, DOOR HINGE TO ACU
1	W11593197 Whirlpool Mounting Plate
2	W10843943 Whirlpool Microwave Vent Damper
3A	W11593183 Whirlpool Cabinet Wrapper
3	CASE, OUTER (WHITE)
4	INSULATION, TOP PLATE
5	INSULATION, BACK PLATE
6	INSULATION, BOTTOM PLATE
7	INSULATION, RIGHT PLATE
8	CORD, POWER
