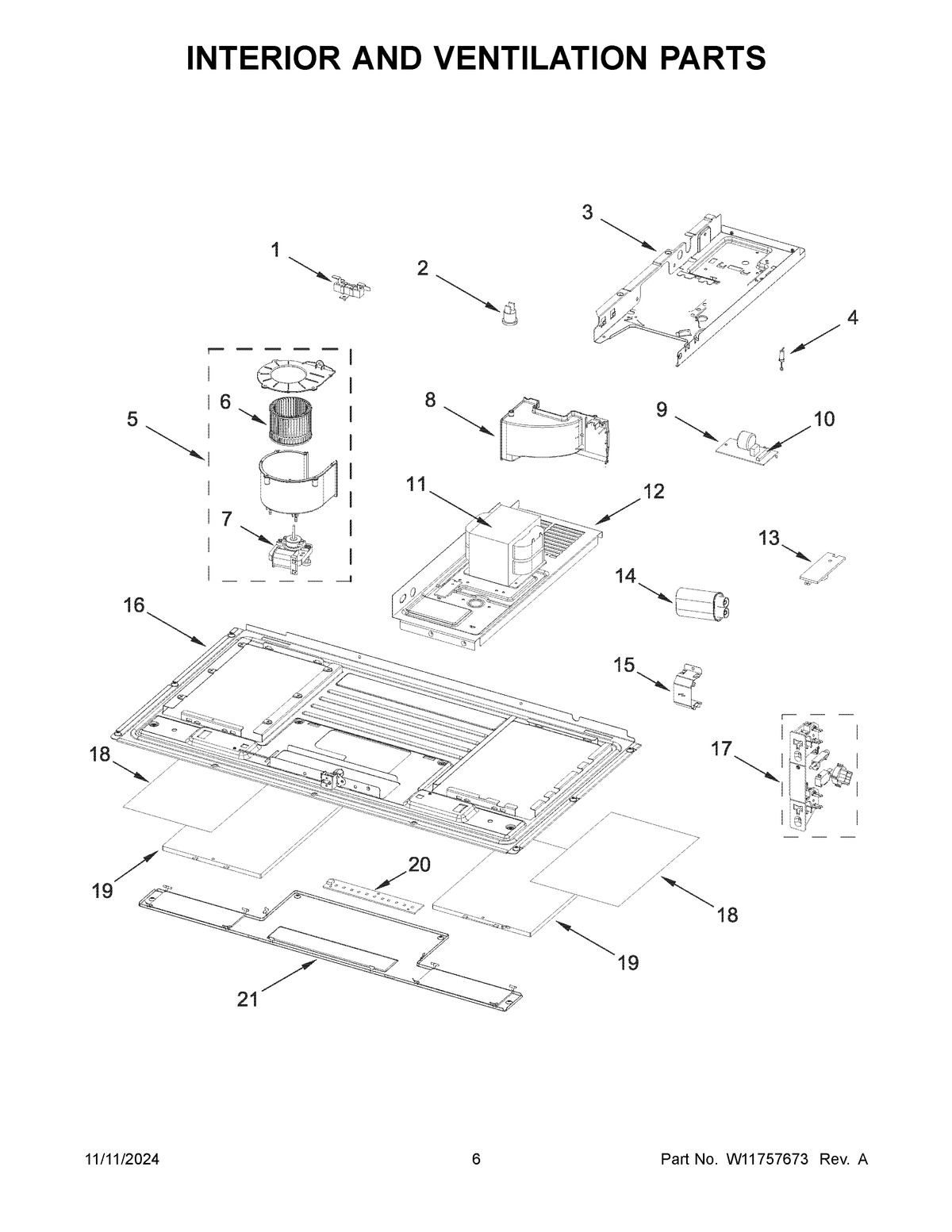

KMML550RPS00 04 – INTERIOR AND VENTILATION PARTSadmin2025-04-26T12:26:18+00:00KMML550RPS00 04 – INTERIOR AND VENTILATION PARTS
Products
| Position | Product |
|---|
| 1 | W11259893 Whirlpool Resistor Assembly |
| 2 | W11378281 Whirlpool Fix Thermostat |
| 3 | PLATE, CHASSIS |
| 4 | W11256462 Whirlpool Microwave Diode |
| 5 | MOTOR-FAN |
| 6 | W11088354 Whirlpool Microwave Fan Wheel |
| 7 | W11443154 Whirlpool Microwave Fan Motor |
| 8 | W11088358 Whirlpool Microwave Air Guide |
| 9 | BOARD, NOISE FILTER |
| 10 | FUSE-THRML |
| 11 | TRANSFORMER, HIGH VOLTAGE |
| 12 | CHASSIS, TRANSFORMER |
| 13 | W10536989 Whirlpool Microwave Thermistor |
| 14 | CAPACTR-MG |
| 15 | W11095808 Whirlpool Compactor Bracket |
| 16 | PLATE, BOTTOM |
| 17 | ASSEMBLY, INTERLOCK |
| 18 | FILTER, CHARCOAL |
| 19 | FILTER, GREASE |
| 20 | STRIP, LED LIGHT |
| 21 | ASSEMBLY, GLASS HOLDER |
