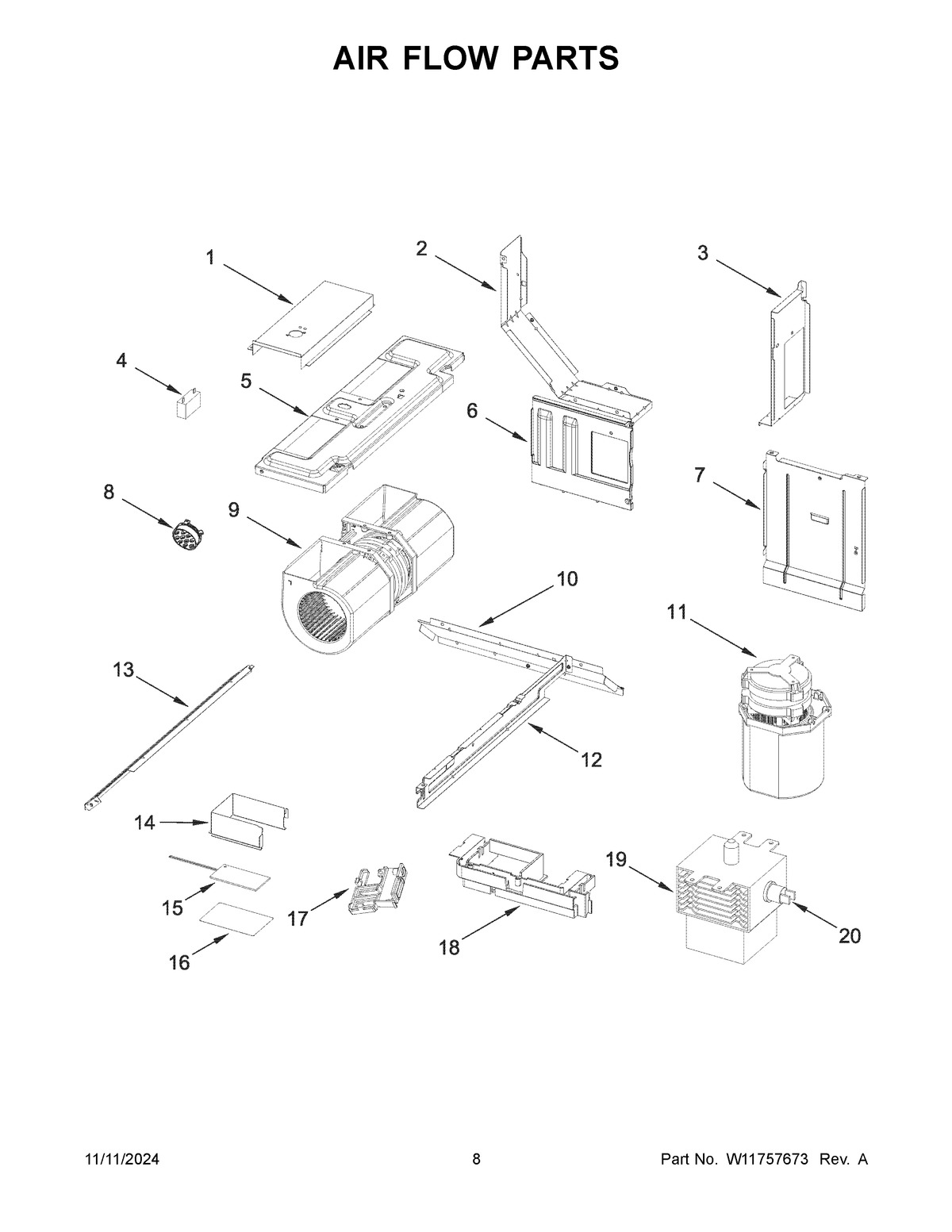

KMML550RPS00 05 – AIR FLOW PARTS

Products

Position	Product
1	OUTLET, CAVITY (BACK)
2	AIR DEFLECTOR, RIGHT
3	OUTLET DEFLECTOR, RIGHT
4	W11405833 Whirlpool Microwave Hood Motor
5	CHASSIS, FAN
6	DEFLECTOR, COOLING FAN
7	W11095804 Whirlpool Deflector Assembly
8	W10557536 Whirlpool Microwave Sensor
9	W11409093 Whirlpool Microwave Fan Motor
10	HOOD DEFLECTOR, BACK
11	W11213353 Whirlpool Microwave Fan Motor
12	DIVIDER, AIR
13	AIR GUIDE, LEFT
14	W11086300 Whirlpool Microwave Reflector
15	W11443139 Whirlpool Microwave Light
16	FOIL, LAMP
17	W11098921 Whirlpool Microwave Light Cover
18	HOLDER, WIRE
19	W11402082 Whirlpool Microwave Magnetron
20	W11443128 Whirlpool Thermostat
