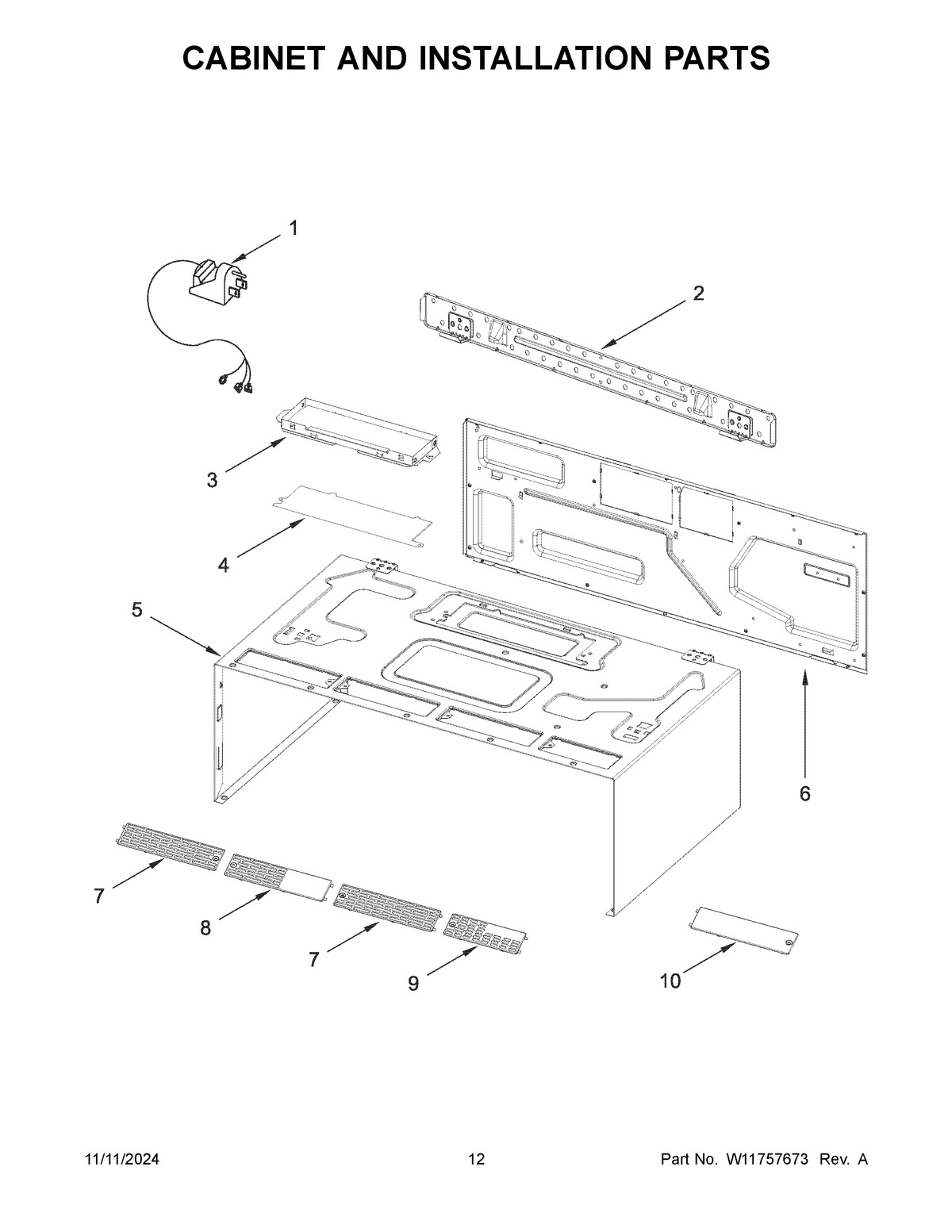

KMML550RPS00 07 – CABINET AND INSTALLATION PARTS

KMML550RPS00 07 – CABINET AND INSTALLATION PARTS

Written by

in

KMML550RPS00 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMISCELLANEOUS PARTS, HARNESS, HMI TO DOOR HINGE A07
NIW10821385 Whirlpool Hardware Kit
NIMISCELLANEOUS PARTS, HARNESS, DOOR HINGE TO ACU
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIMISCELLANEOUS PARTS, SIGNAL HARNESS, DOOR & ODM TO ACU
1W11187358 Whirlpool Microwave Power Cord
2W11025649 Whirlpool Microwave Mounting Plate
3W10843943 Whirlpool Microwave Vent Damper
4COVER, EXHAUST (BLACK)
5CASE, OUTER (STAINLESS)
5ACASE, OUTER (BLACK STAINLESS)
6W11360416 Whirlpool Plate
7W11086309 Whirlpool Microwave Vent Grille
8W11095781 Whirlpool Microwave Vent Grille
9W11086310 Whirlpool Microwave Vent Grill
10W11397086 Whirlpool Microwave Vent Grill
