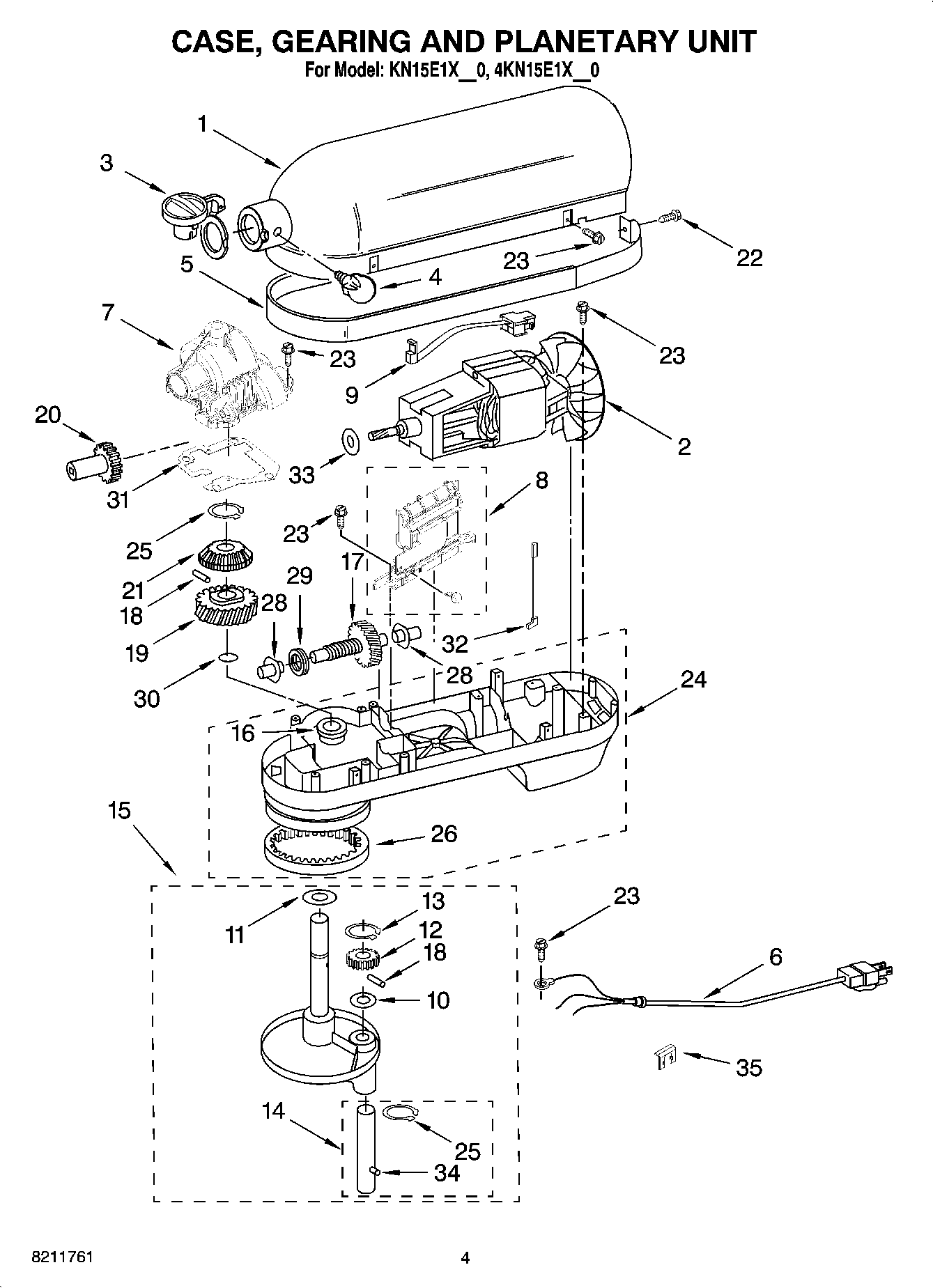

KN15E1XSB0 02 – CASE, GEARING AND PLANETARY UNIT

Products

Position	Product
1	Gearcase Motor Housing
2	WPW10247536 Whirlpool Motor
3	W11401152 Whirlpool Hub Cap
4	WP9709194 Whirlpool Black Thumb Screw
4	WP9709196 Whirlpool Screw
5	Band, Trim
6	Power Cord (Black)
6	Power Cord
7	8212396 Whirlpool Housing
9	WP9706648 Whirlpool Speed Control
10	WP9706090 Whirlpool Washer
11	W11084660 Whirlpool Washer
12	W11133646 Whirlpool Gear
13	WP9703438 Whirlpool Snap Retaining Ring
14	WP9708191 Whirlpool Agitator Shaft
15	Planetary Assembly
16	WP16897 Whirlpool Bearing
17	WP9709231 Whirlpool Gear Assembly
18	WP9707223 Whirlpool Dowel Pin
19	GEAR
21	W11192795 Whirlpool Gear
22	W10853069 Whirlpool Screw
23	WP3400814 Whirlpool Screw
24	Lower Gear Case
25	WP9703680 Whirlpool Retainer Ring
26	W11181966 Whirlpool Gear
28	WPW10170080 Whirlpool Bearing Assembly
28	WPW10170081 Whirlpool Bearing
29	WP9703445 Whirlpool Bearing Kit Thrust
30	O RING
31	WP9709511 Whirlpool Microwave High Voltage Transformer
32	9706036 Whirlpool Wire Assembly
33	WP9706247 Whirlpool Seal
34	W11664709 Whirlpool Groove Pin
35	Clip, Cord Retainer
