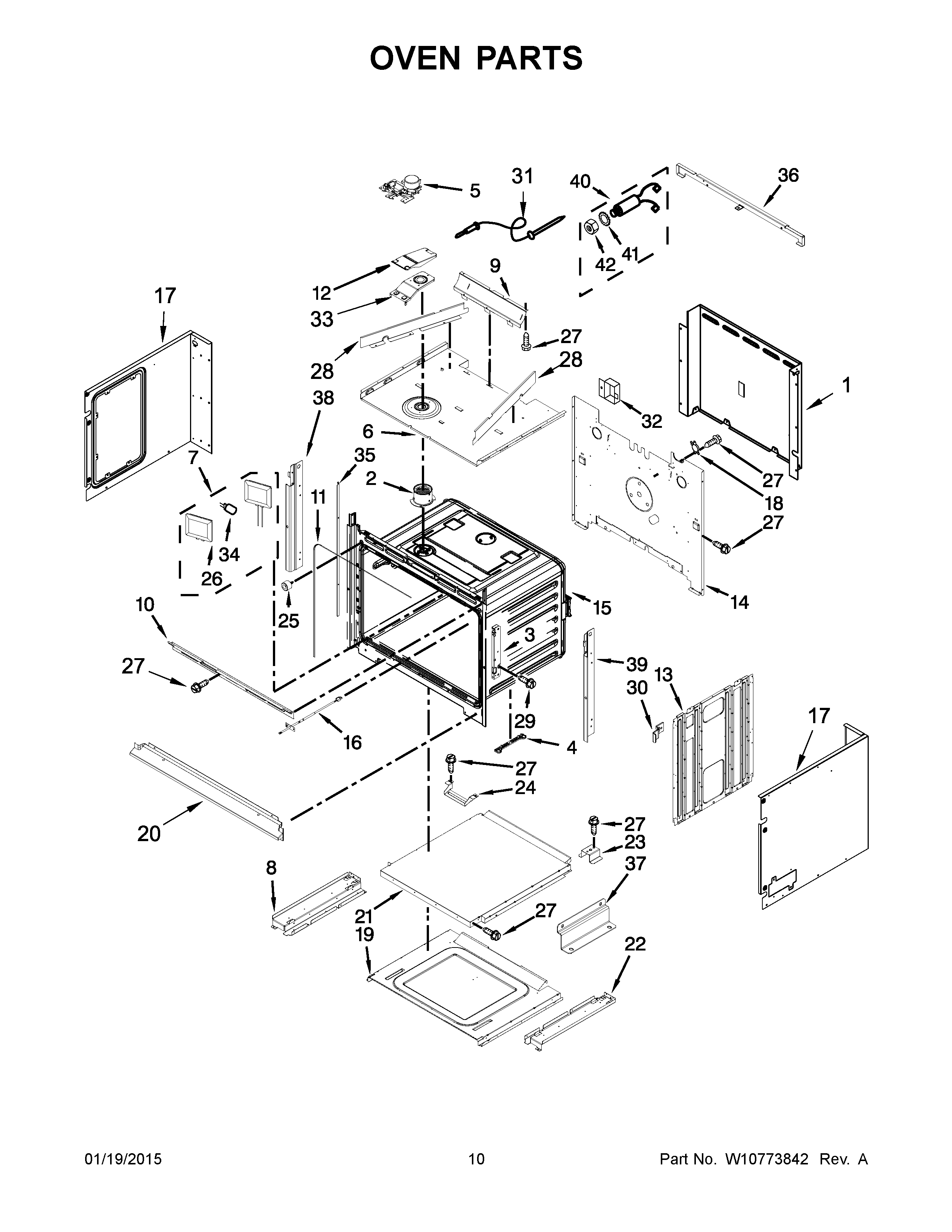

KOCE500EBL00 06 – OVEN PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11684789 Whirlpool Insulation
NI	W11688731 Whirlpool Insulation
1	COVER, BACK DUCT
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	W11240831 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	TOP, CHASSIS
8	W10283020 Whirlpool Support
9	W10904163 Whirlpool Vent Deflector
10	W10495154 Whirlpool Oven Vent
11	W11623080 Whirlpool Gasket
12	W10616810 Whirlpool Exhaust Cover
13	SIDE, CHASSIS
14	BACK, CHASSIS
16	PROBE, SENSOR
17A	W10283029 Whirlpool Side Cover
17	CHASSIS, COMBO SIDE (LEFT)
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	W11238787 Whirlpool Manifold Pipe
20B	WPW10327374 Whirlpool Oven Vent
20C	ASSEMBLY, BOTTOM VENT (BLACK STAINLESS)
20A	WPW10506348 Whirlpool Oven Vent
20	WPW10351275 Whirlpool Oven Vent
21	WPW10283008 Whirlpool Access Cover
22	W10283021 Whirlpool Support
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	WPW10351278 Whirlpool Bumper
26	WPW10519866 Whirlpool Light
27	SCREW
28	W10681156 Whirlpool Vent Deflector
29	WPW10254050 Whirlpool Screw
30	W11376811 Whirlpool Spacer Assembly
31	WP9755542 Whirlpool Oven Meat Probe
32	8285593 Whirlpool Oven Wire Cover
33	W10616809 Whirlpool Vent Tube
34	WPW10472384 Whirlpool Light Bulb
35A	W10536162 Whirlpool Microwave Trim Cover Kit
36	W10283022 Whirlpool Support
37	W10283024 Whirlpool Mounting Bracket
38	W10360517 Whirlpool Dishwasher Mounting Bracket
39	BRKT-MNTG
40	WPW10524044 Whirlpool Jack Probe
41	WP9755547 Whirlpool Lockwasher
42	WP9755546 Whirlpool Locknut
