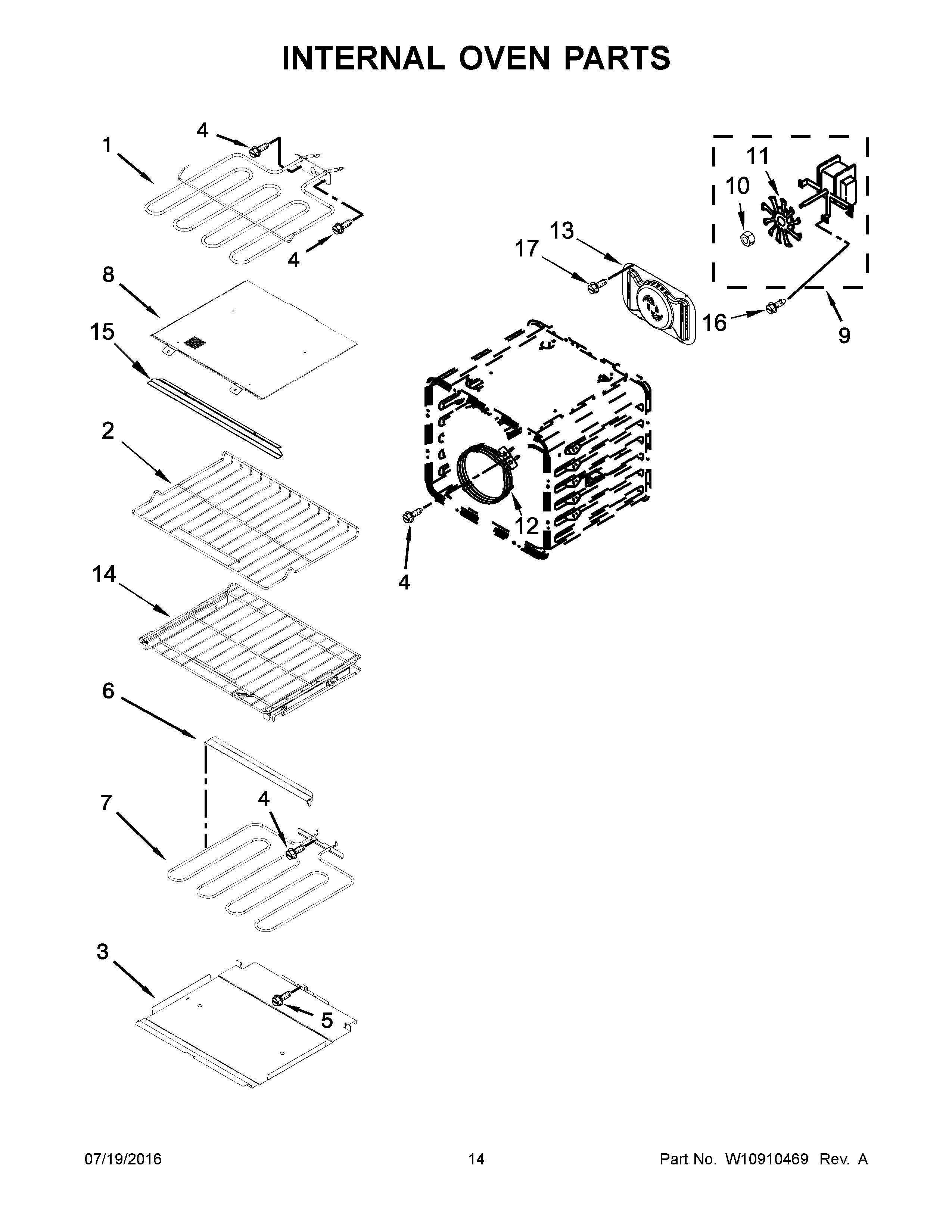

KOCE500EBL05 08 – INTERNAL OVEN PARTS

KOCE500EBL05 08 – INTERNAL OVEN PARTS

Written by

in

KOCE500EBL05 08 – INTERNAL OVEN PARTS

Products

PositionProduct
1W10804429 Whirlpool Broil Element
2WPW10554526 Whirlpool Oven Rack
3W10318198 Whirlpool Bake Tray
4SCREW
5SCREW
6W10282957 Whirlpool Bracket Support
7BAKE ELEMENT
8W11290999 Whirlpool Shield Heat
9W10860984 Whirlpool Fan Motor
10W10794042 Whirlpool Nut
11W10819914 Whirlpool Convection Fan
12W11678579 Whirlpool Element
13W11234761 Whirlpool Baffle Convector
13AW10725944 Whirlpool Convection Baffle
14W11718046 Whirlpool Rack
15W10588738 Whirlpool Heat Shield
16W10850807 Whirlpool Screw
17SCREW
