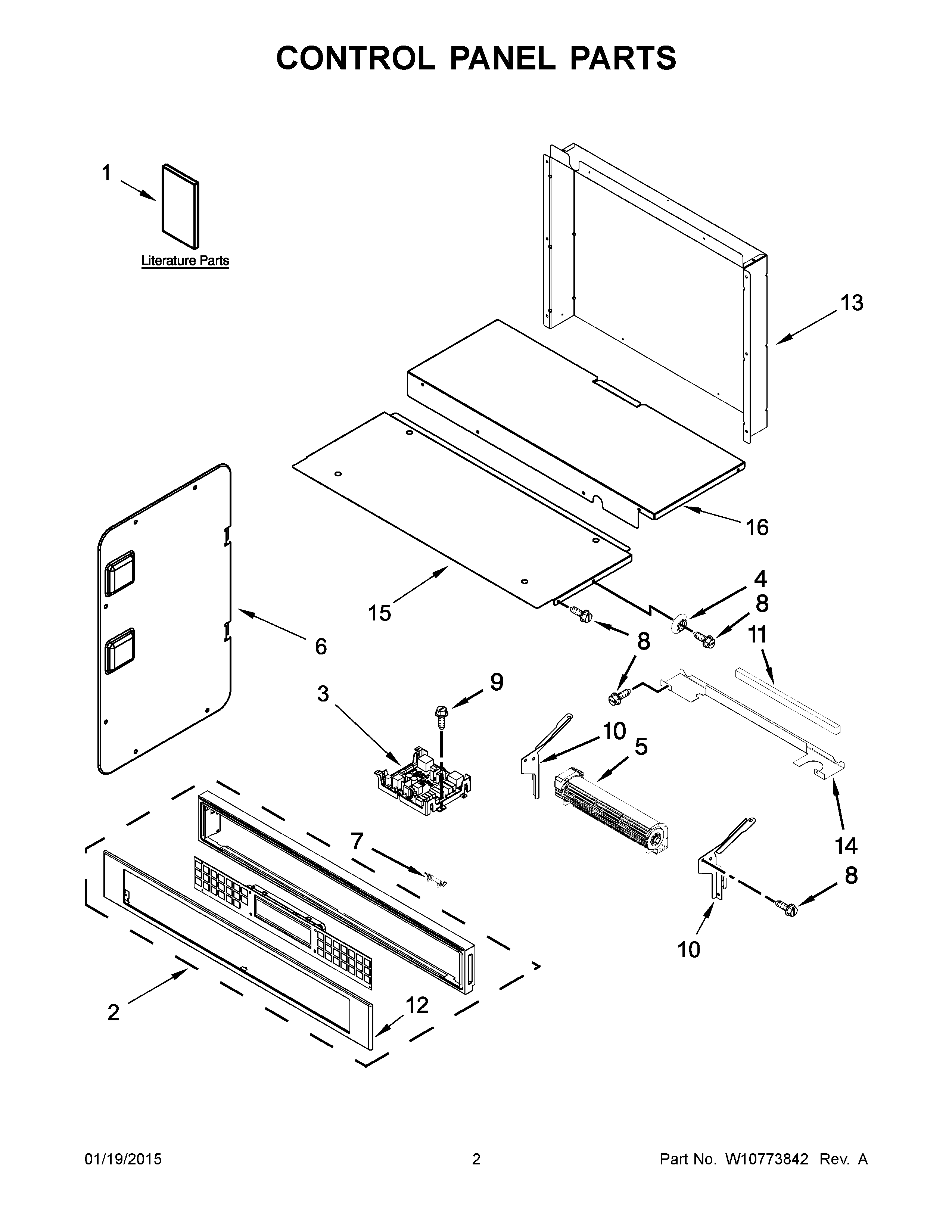

KOCE500EBS00 02 – CONTROL PANEL PARTS
Written by
in
KOCE500EBS00 02 – CONTROL PANEL PARTS
Products
Position
Product
NI
W10603949 Whirlpool Wire Harness
NI
W10603947 Whirlpool Wire Harness
NI
W10632455 Whirlpool Wire Harness
NI
W10573327 Whirlpool Wire Harness
NI
WPW10017410 Whirlpool Fuse
NI
W11226264 Whirlpool Wire Harness
NI
4454949 Whirlpool Oven Fuse Block
NI
16515 Whirlpool Clip
NI
4450800 Whirlpool Oven Screw
NI
4448664 Whirlpool Oven Mounting Bracket
NI
CABINET (NOT A SERVICEABLE PART)
1
GUIDE, USE & CARE (OVEN)
1B
INSTRUCTIONS, INSTALLATION
1A
GUIDE, USE & CARE (MICROWAVE OVEN)
2B
W11093254 Whirlpool Control Panel
2A
ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (WHITE)
2C
W10916778 Whirlpool Membrane Switch
2
W10588754 Whirlpool Control Panel
3
W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4
W10618105 Whirlpool Spacer
5
W11245567 Whirlpool Blower Assembly
6
W10655467 Whirlpool Side Cover
7
WPW10545291 Whirlpool Range Thermal Fuse
8
SCREW
9
SCREW
10
W10655463 Whirlpool Bracket Mounting
10A
W10655462 Whirlpool Mounting Bracket
11
W10491987 Whirlpool Foam Seal
12
W10588744 Whirlpool Control Panel
12C
W10776407 Whirlpool Control Panel
12B
W10588740 Whirlpool Control Panel
12A
PANL-CNTRL
13
W10519703 Whirlpool Rear Cover
14
W10655465 Whirlpool Mounting Bracket
15
W10318158 Whirlpool Access Cover Assembly
16
W10283031 Whirlpool Access Cover
←
