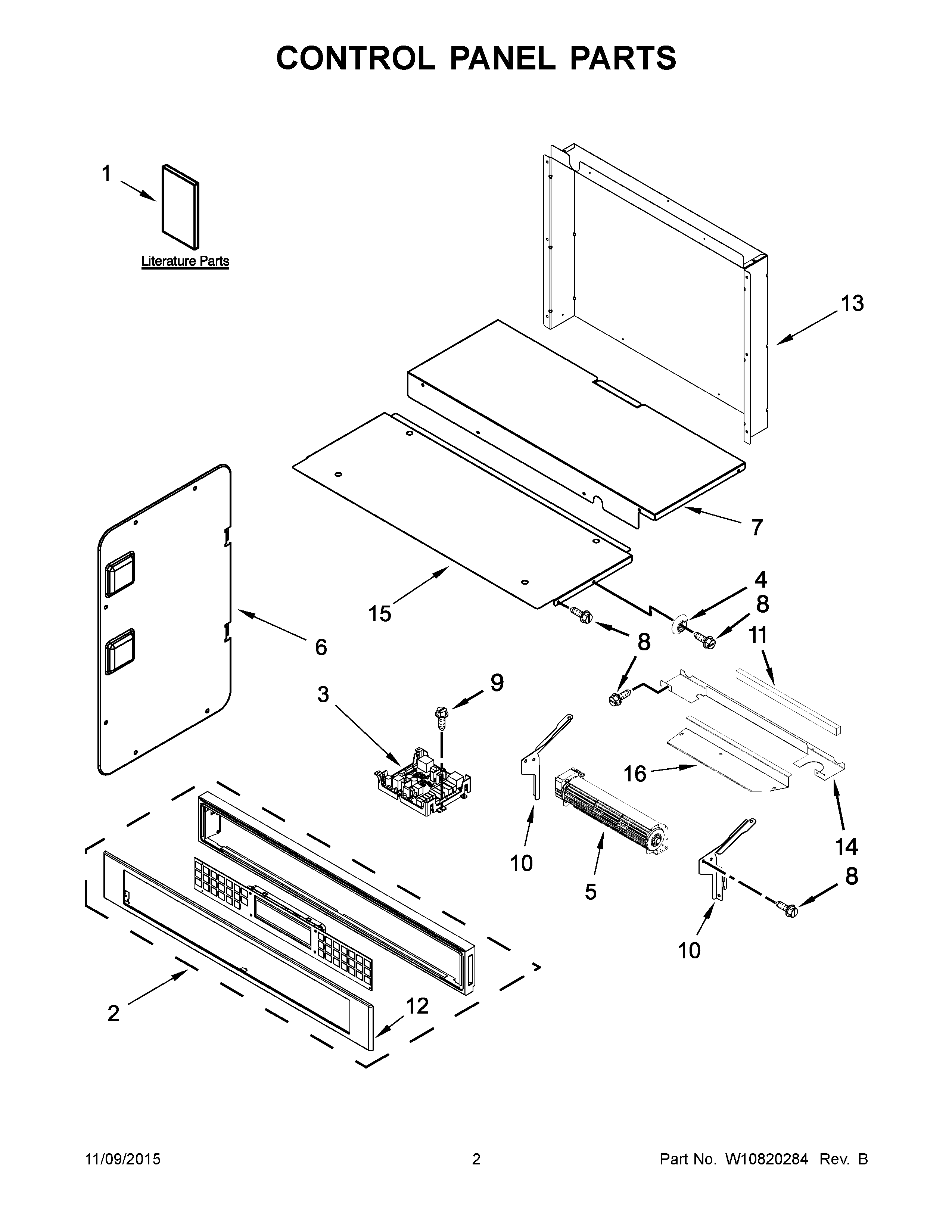

KOCE500EBS02 02 – CONTROL PANEL PARTS
Written by
in
KOCE500EBS02 02 – CONTROL PANEL PARTS
Products
Position
Product
NI
W10603947 Whirlpool Wire Harness
NI
W10874060 Whirlpool Microwave Wire Harness
NI
W10603949 Whirlpool Wire Harness
NI
W10632455 Whirlpool Wire Harness
NI
W10573327 Whirlpool Wire Harness
NI
WPW10017410 Whirlpool Fuse
NI
W11226264 Whirlpool Wire Harness
NI
4454949 Whirlpool Oven Fuse Block
NI
16515 Whirlpool Clip
NI
4450800 Whirlpool Oven Screw
NI
4448664 Whirlpool Oven Mounting Bracket
NI
CABINET (NOT A SERVICEABLE PART)
1C
TECH SHEET (ENGLISH)
1B
GUIDE, USE & CARE (MICROWAVE OVEN)
1
INSTRUCTIONS, INSTALLATION
1A
GUIDE, USE & CARE (OVEN)
1D
TECH SHEET (FRENCH)
2
W10588754 Whirlpool Control Panel
2A
ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (WHITE)
2B
W11093254 Whirlpool Control Panel
2C
W10916778 Whirlpool Membrane Switch
3
W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4
W10618105 Whirlpool Spacer
5
W11245567 Whirlpool Blower Assembly
6
W10655467 Whirlpool Side Cover
7
W10283031 Whirlpool Access Cover
8
SCREW
9
SCREW
10
W10655463 Whirlpool Bracket Mounting
10A
W10655462 Whirlpool Mounting Bracket
11
W10491987 Whirlpool Foam Seal
12C
W10776407 Whirlpool Control Panel
12
W10588744 Whirlpool Control Panel
12A
PANL-CNTRL
12B
W10588740 Whirlpool Control Panel
13
W10519703 Whirlpool Rear Cover
14
W10655465 Whirlpool Mounting Bracket
15
W10318158 Whirlpool Access Cover Assembly
16
W10681157 Whirlpool Fan Cover
←
