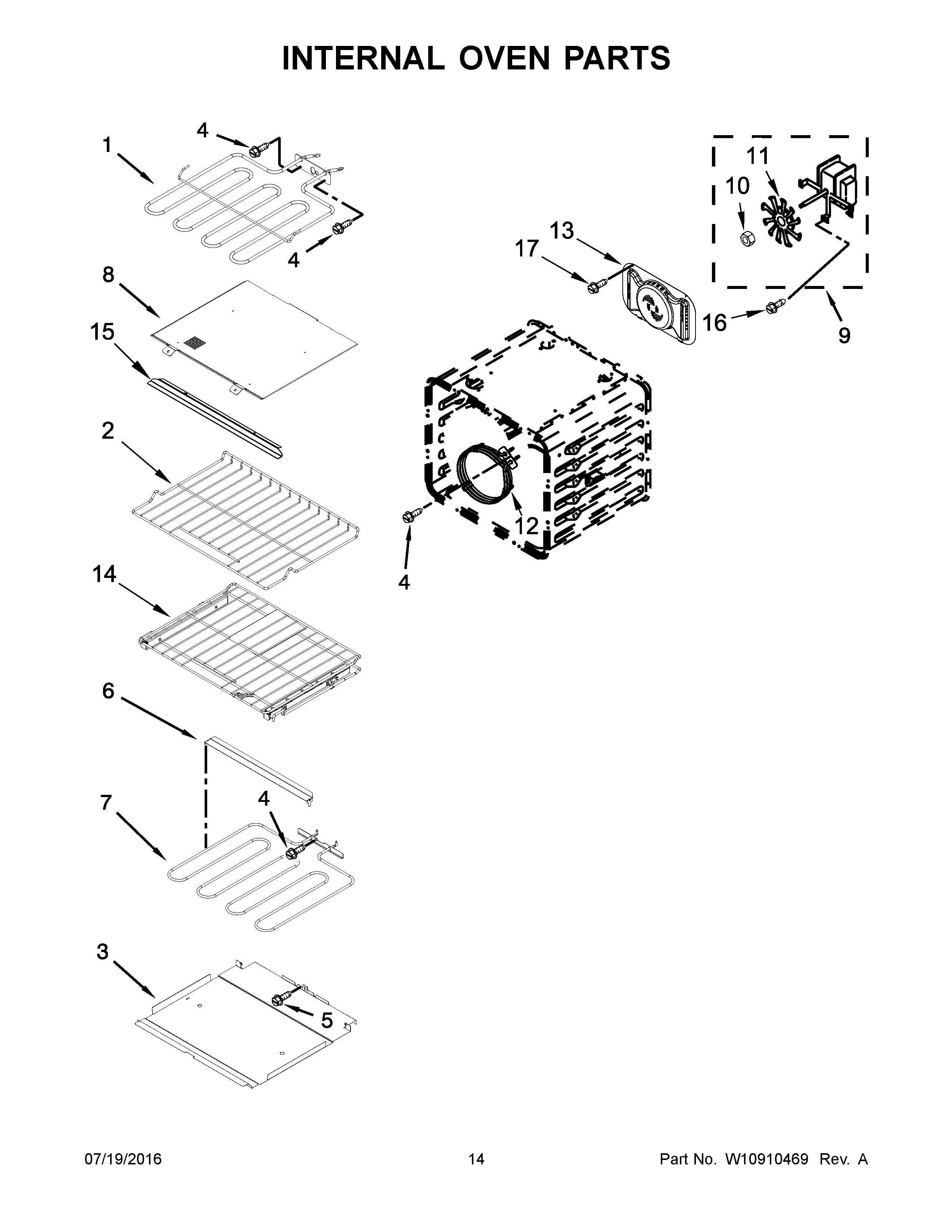

KOCE500EBS05 08 – INTERNAL OVEN PARTS

Products

Position	Product
1	W10804429 Whirlpool Broil Element
2	WPW10554526 Whirlpool Oven Rack
3	W10318198 Whirlpool Bake Tray
4	SCREW
5	SCREW
6	W10282957 Whirlpool Bracket Support
7	BAKE ELEMENT
8	W11290999 Whirlpool Shield Heat
9	W10860984 Whirlpool Fan Motor
10	W10794042 Whirlpool Nut
11	W10819914 Whirlpool Convection Fan
12	W11678579 Whirlpool Element
13	W11234761 Whirlpool Baffle Convector
13A	W10725944 Whirlpool Convection Baffle
14	W11718046 Whirlpool Rack
15	W10588738 Whirlpool Heat Shield
16	W10850807 Whirlpool Screw
17	SCREW
