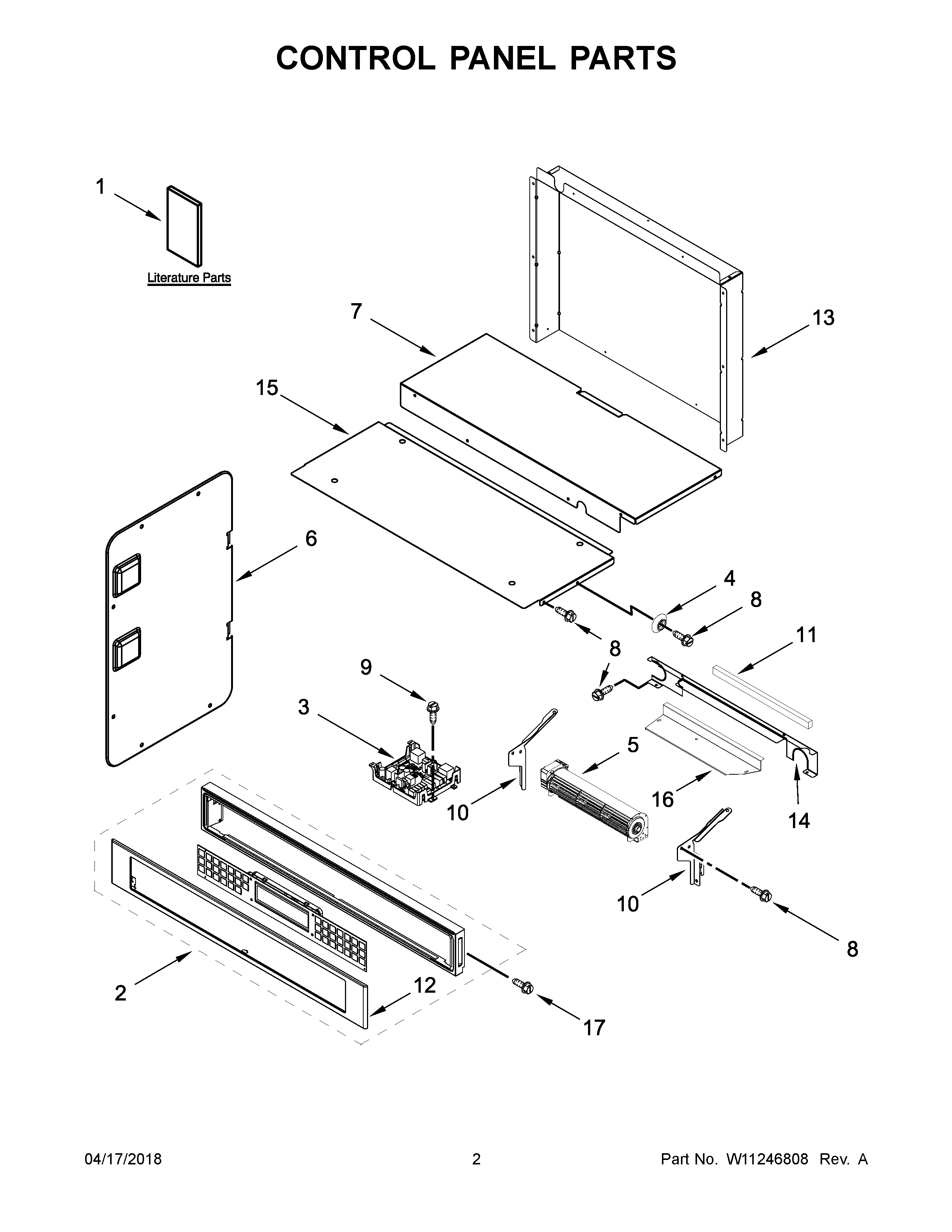

KOCE500EBS07 02 – CONTROL PANEL PARTS
Written by
in
KOCE500EBS07 02 – CONTROL PANEL PARTS
Products
Position
Product
NI
W11229448 Whirlpool Wire Harness
NI
W10874060 Whirlpool Microwave Wire Harness
NI
W11132989 Whirlpool Wire Harness
NI
W10760039 Whirlpool Hardware
NI
WPW10017410 Whirlpool Fuse
NI
W11226264 Whirlpool Wire Harness
NI
4454949 Whirlpool Oven Fuse Block
NI
W11157180 Whirlpool Wire Harness
NI
4450800 Whirlpool Oven Screw
NI
4448664 Whirlpool Oven Mounting Bracket
NI
CABINET (NOT A SERVICEABLE PART)
NI
W11157223 Whirlpool Wire Harness
1B
GUIDE, USE & CARE (MICROWAVE OVEN)
1
INSTRUCTIONS, INSTALLATION
1A
GUIDE, USE & CARE (OVEN)
1C
SHEET, TECH (ENGLISH)
1D
SHEET, TECH (FRENCH)
2A
W10916779 Whirlpool Membrane Switch
2C
W10916778 Whirlpool Membrane Switch
2B
W11093254 Whirlpool Control Panel
2
W11093255 Whirlpool Control Panel
3
W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4
W10618105 Whirlpool Spacer
5
W11245567 Whirlpool Blower Assembly
6
W10655467 Whirlpool Side Cover
7
W10588732 Whirlpool Cover Access
8
SCREW
9
SCREW
10
W10655463 Whirlpool Bracket Mounting
10A
W10655462 Whirlpool Mounting Bracket
11
W10491987 Whirlpool Foam Seal
12B
W10588740 Whirlpool Control Panel
12A
PANL-CNTRL
12
W10588744 Whirlpool Control Panel
12C
W10776407 Whirlpool Control Panel
13
W11037653 Whirlpool Rear Cover
14
CHASSIS, BACK DIVIDER
15
W10318158 Whirlpool Access Cover Assembly
16
W10681157 Whirlpool Fan Cover
17
SCREW
←
