KOCE500EBS09 06 – OVEN PARTS

KOCE500EBS09 06 – OVEN PARTS

Written by

in

KOCE500EBS09 06 – OVEN PARTS

Products

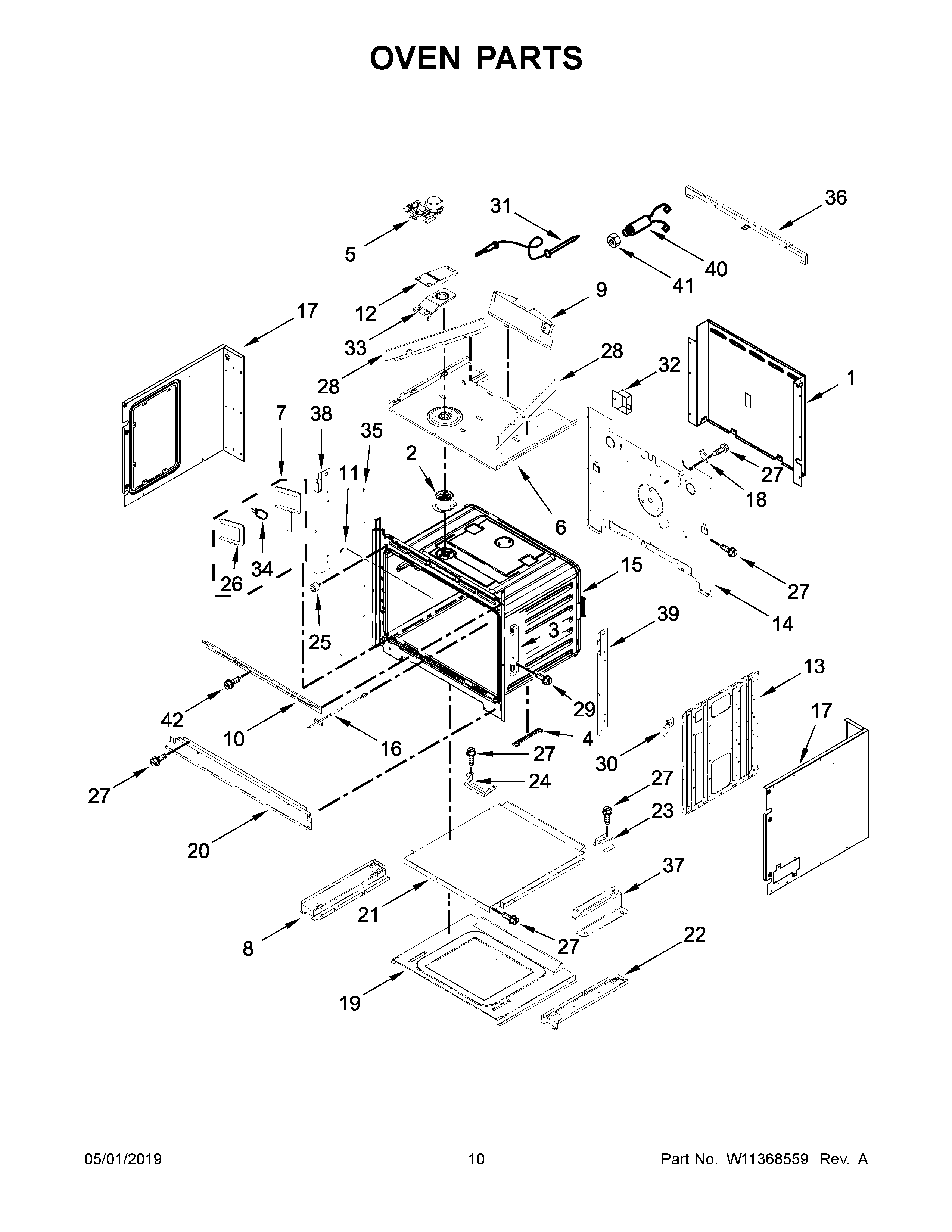

Position	Product
NI	W11684789 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11688731 Whirlpool Insulation
1	COVER, BACK DUCT
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	W11240831 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	TOP, CHASSIS
7	W11245268 Whirlpool Oven Light
8	W10283020 Whirlpool Support
9	W10904163 Whirlpool Vent Deflector
10	W10495154 Whirlpool Oven Vent
11	W11623080 Whirlpool Gasket
12	W10616810 Whirlpool Exhaust Cover
13	SIDE, CHASSIS
14	BACK, CHASSIS
16	W10859573 Whirlpool Range Oven Temperature Sensor
17	CHASSIS, COMBO SIDE (LEFT)
17A	W10283029 Whirlpool Side Cover
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	W11238787 Whirlpool Manifold Pipe
20B	WPW10351279 Whirlpool Oven Vent
20A	W10506344 Whirlpool Oven Vent
20C	ASSEMBLY, BOTTOM VENT (BLACK STAINLESS)
20	WPW10327373 Whirlpool Oven Vent
21	WPW10283008 Whirlpool Access Cover
22	W10283021 Whirlpool Support
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	WPW10351278 Whirlpool Bumper
26	WPW10519866 Whirlpool Light
27	SCREW
28	W10681156 Whirlpool Vent Deflector
29	WPW10254050 Whirlpool Screw
30	W10347649 Whirlpool Spacer
31	WP9755542 Whirlpool Oven Meat Probe
32	8285593 Whirlpool Oven Wire Cover
33	W10616809 Whirlpool Vent Tube
34	WPW10472384 Whirlpool Light Bulb
35A	W10536162 Whirlpool Microwave Trim Cover Kit
36	W10283022 Whirlpool Support
37	W10283024 Whirlpool Mounting Bracket
38	W10360517 Whirlpool Dishwasher Mounting Bracket
38A	W10710302 Whirlpool Mounting Bracket
39	BRKT-MNTG
39A	W10710309 Whirlpool Mounting Bracket
40	W11220388 Whirlpool Jack Probe
41	W11231343 Whirlpool Lock Nut
42	WPY706189 Whirlpool Stove Screw
