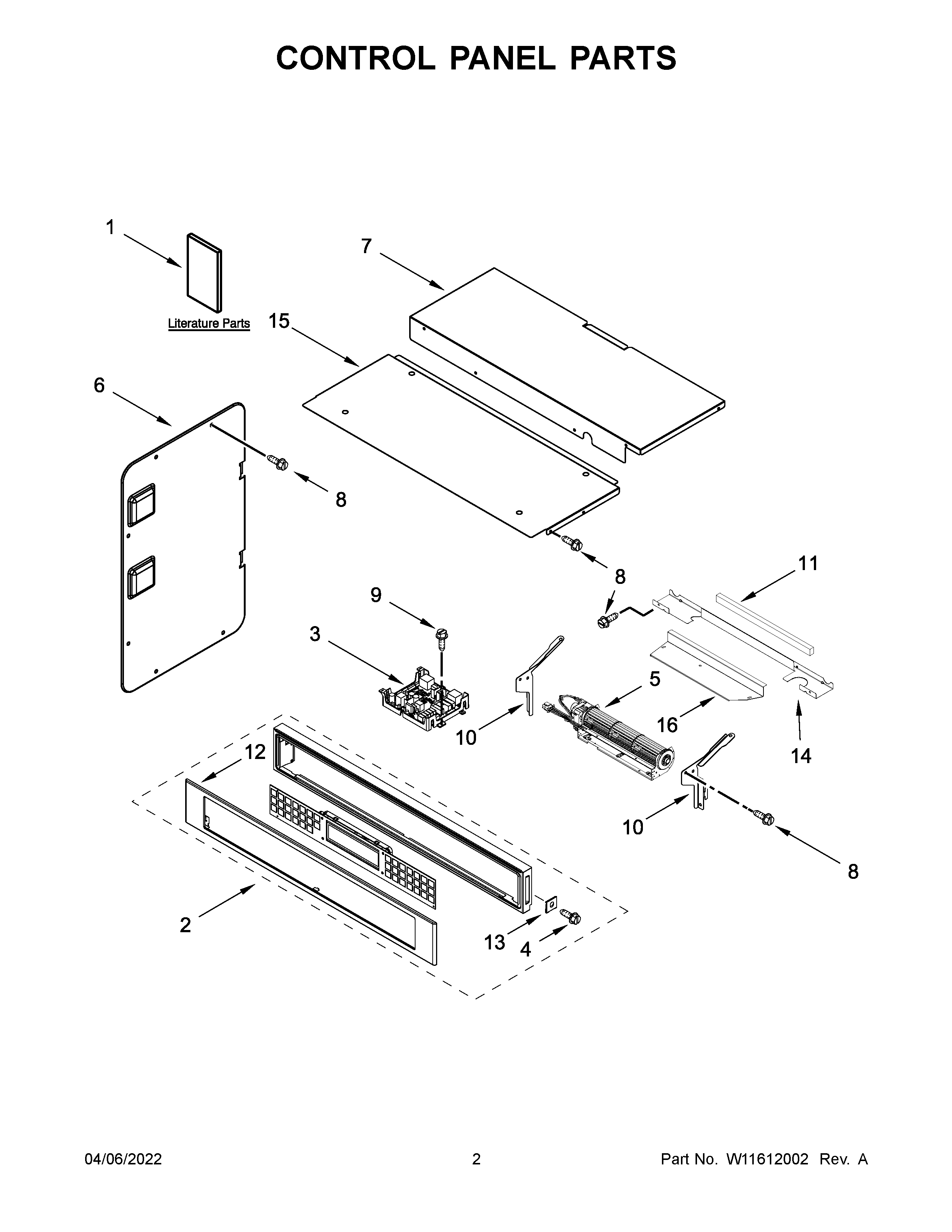

KOCE500EBS20 02 – CONTROL PANEL PARTS

KOCE500EBS20 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIWPW10017410 Whirlpool Fuse
NI4454949 Whirlpool Oven Fuse Block
NIW11602626 Whirlpool Oven Microwave Hardware
NI16515 Whirlpool Clip
NIW11727826 Whirlpool Wire Harness
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIWP3400015 Whirlpool Screw
NIW11731943 Whirlpool Wire Harness
NIW11229448 Whirlpool Wire Harness
NIW11256627 Whirlpool Wire Harness
NIW11226264 Whirlpool Wire Harness
1AQUICK START GUIDE
1BTECH SHEET
1OWNER'S MANUAL
2W11600635 Whirlpool Control Panel
2AW11600634 Whirlpool Control Panel
2BW11600633 Whirlpool Control Panel
3W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
4SCREW (BLACK)
5BLOWER
6W10655467 Whirlpool Side Cover
7W10588732 Whirlpool Cover Access
8SCREW
9SCREW
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12PANL-CNTRL
12AW10588740 Whirlpool Control Panel
12BW10776407 Whirlpool Control Panel
13WP4450118 Whirlpool Nut
14DIVIDER, CHASSIS BACK
15W10318158 Whirlpool Access Cover Assembly
16W10681157 Whirlpool Fan Cover
