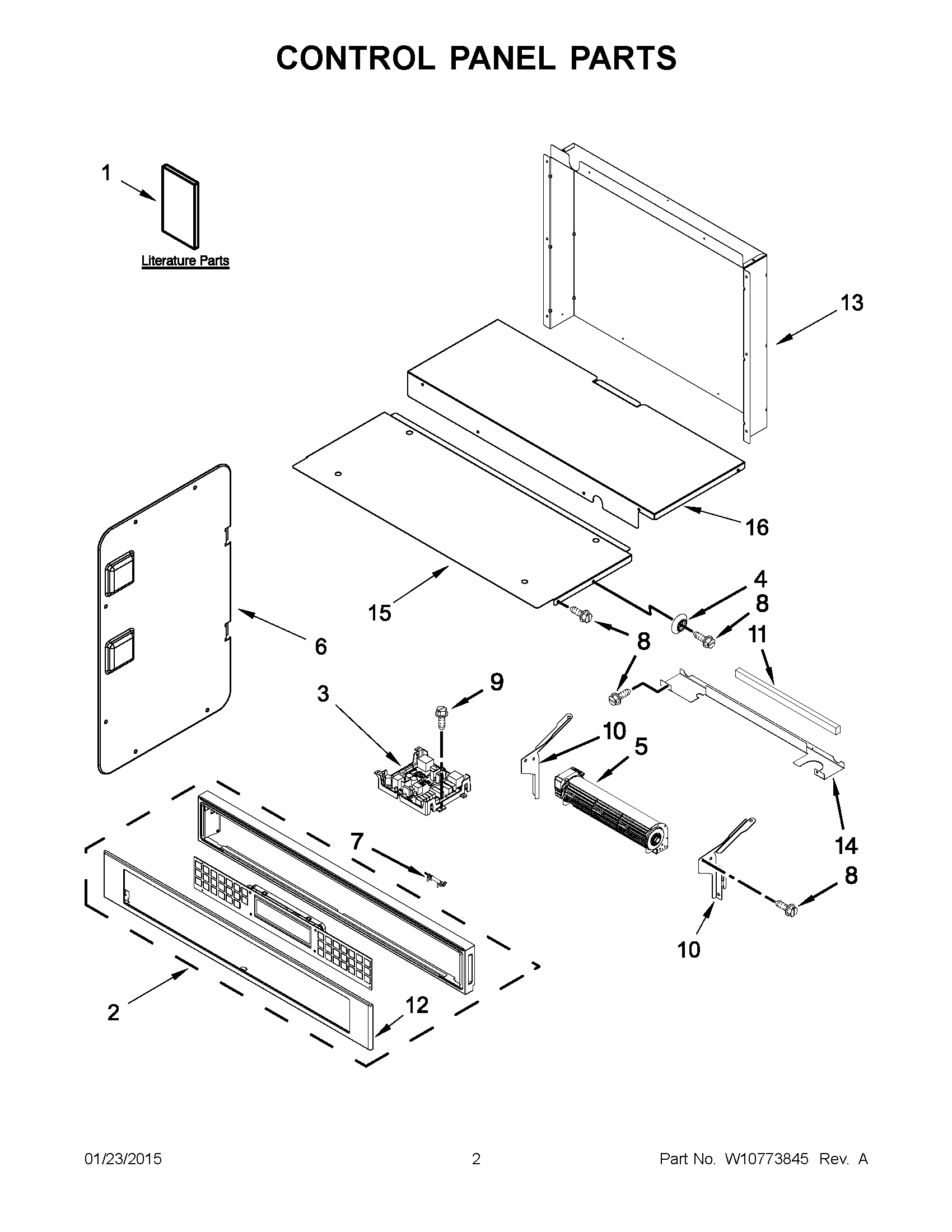

KOCE500ESS01 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW10603949 Whirlpool Wire Harness
NIW11226264 Whirlpool Wire Harness
NIWPW10017410 Whirlpool Fuse
NIW10573327 Whirlpool Wire Harness
NIW11449277 Whirlpool Microwave Wire Harness
NIW10632455 Whirlpool Wire Harness
NIW10389372 Whirlpool Microwave Wire Harness
NIW10874060 Whirlpool Microwave Wire Harness
NIW10603947 Whirlpool Wire Harness
NI4454949 Whirlpool Oven Fuse Block
NICABINET (NOT A SERVICEABLE PART)
NI16515 Whirlpool Clip
NI4448664 Whirlpool Oven Mounting Bracket
NI4450800 Whirlpool Oven Screw
1BINSTRUCTIONS, INSTALLATION
1AGUIDE, USE & CARE (MICROWAVE OVEN)
1GUIDE, USE & CARE (OVEN)
2AASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (WHITE)
2W10588754 Whirlpool Control Panel
2BW11093254 Whirlpool Control Panel
2CW10916778 Whirlpool Membrane Switch
3W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4W10618105 Whirlpool Spacer
5W11245567 Whirlpool Blower Assembly
6W10655467 Whirlpool Side Cover
7WPW10545291 Whirlpool Range Thermal Fuse
8SCREW
9SCREW
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12W10588744 Whirlpool Control Panel
12CW10776407 Whirlpool Control Panel
12BW10588740 Whirlpool Control Panel
12APANL-CNTRL
13W10519703 Whirlpool Rear Cover
14W10655465 Whirlpool Mounting Bracket
15W10318158 Whirlpool Access Cover Assembly
16W10283031 Whirlpool Access Cover
