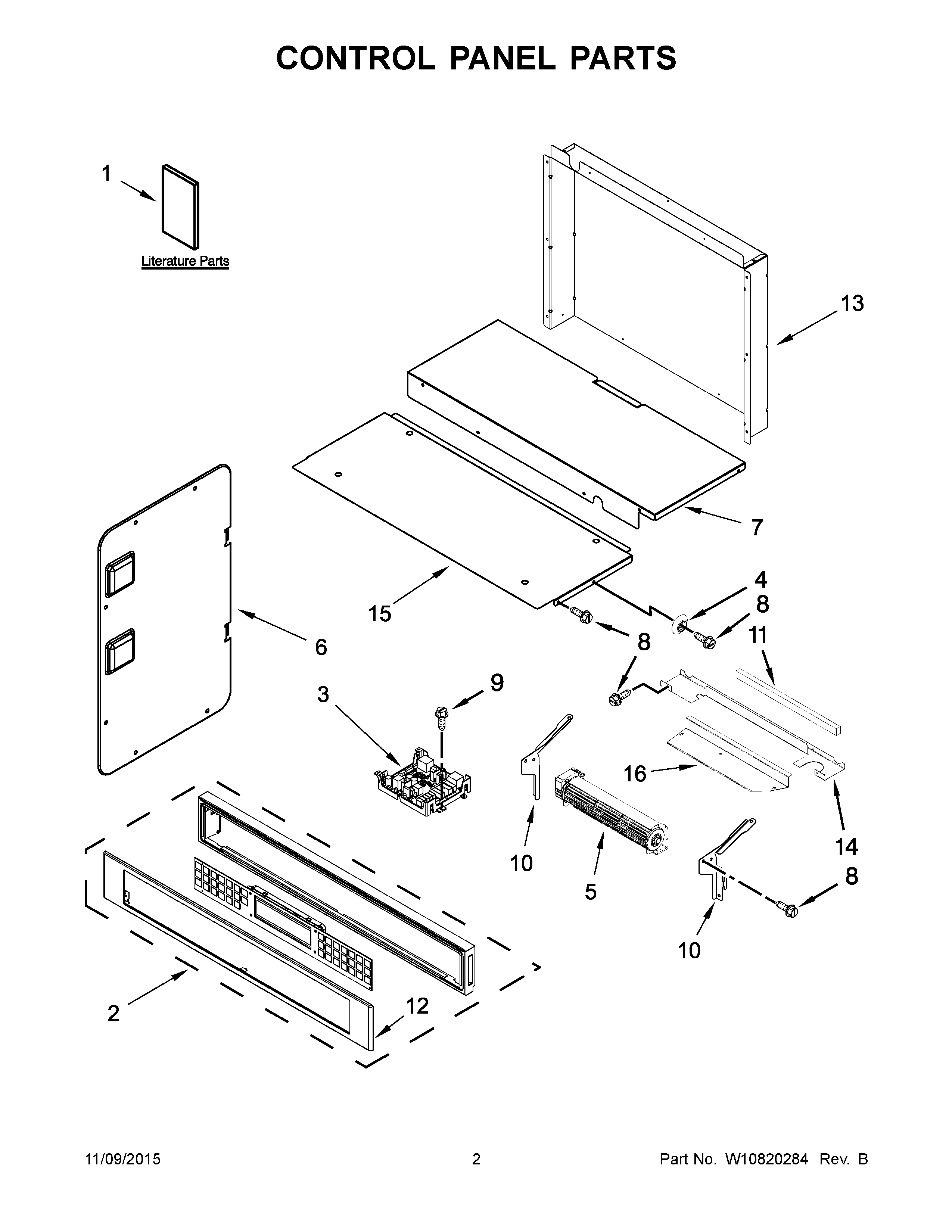

KOCE500ESS02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W10603947 Whirlpool Wire Harness
NI	W10874060 Whirlpool Microwave Wire Harness
NI	W10603949 Whirlpool Wire Harness
NI	W10632455 Whirlpool Wire Harness
NI	W10573327 Whirlpool Wire Harness
NI	WPW10017410 Whirlpool Fuse
NI	W11226264 Whirlpool Wire Harness
NI	4454949 Whirlpool Oven Fuse Block
NI	16515 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
1C	TECH SHEET (ENGLISH)
1B	GUIDE, USE & CARE (MICROWAVE OVEN)
1	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE & CARE (OVEN)
1D	TECH SHEET (FRENCH)
2	W10588754 Whirlpool Control Panel
2A	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (WHITE)
2B	W11093254 Whirlpool Control Panel
2C	W10916778 Whirlpool Membrane Switch
3	W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	W11245567 Whirlpool Blower Assembly
6	W10655467 Whirlpool Side Cover
7	W10283031 Whirlpool Access Cover
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12C	W10776407 Whirlpool Control Panel
12	W10588744 Whirlpool Control Panel
12A	PANL-CNTRL
12B	W10588740 Whirlpool Control Panel
13	W10519703 Whirlpool Rear Cover
14	W10655465 Whirlpool Mounting Bracket
15	W10318158 Whirlpool Access Cover Assembly
16	W10681157 Whirlpool Fan Cover
