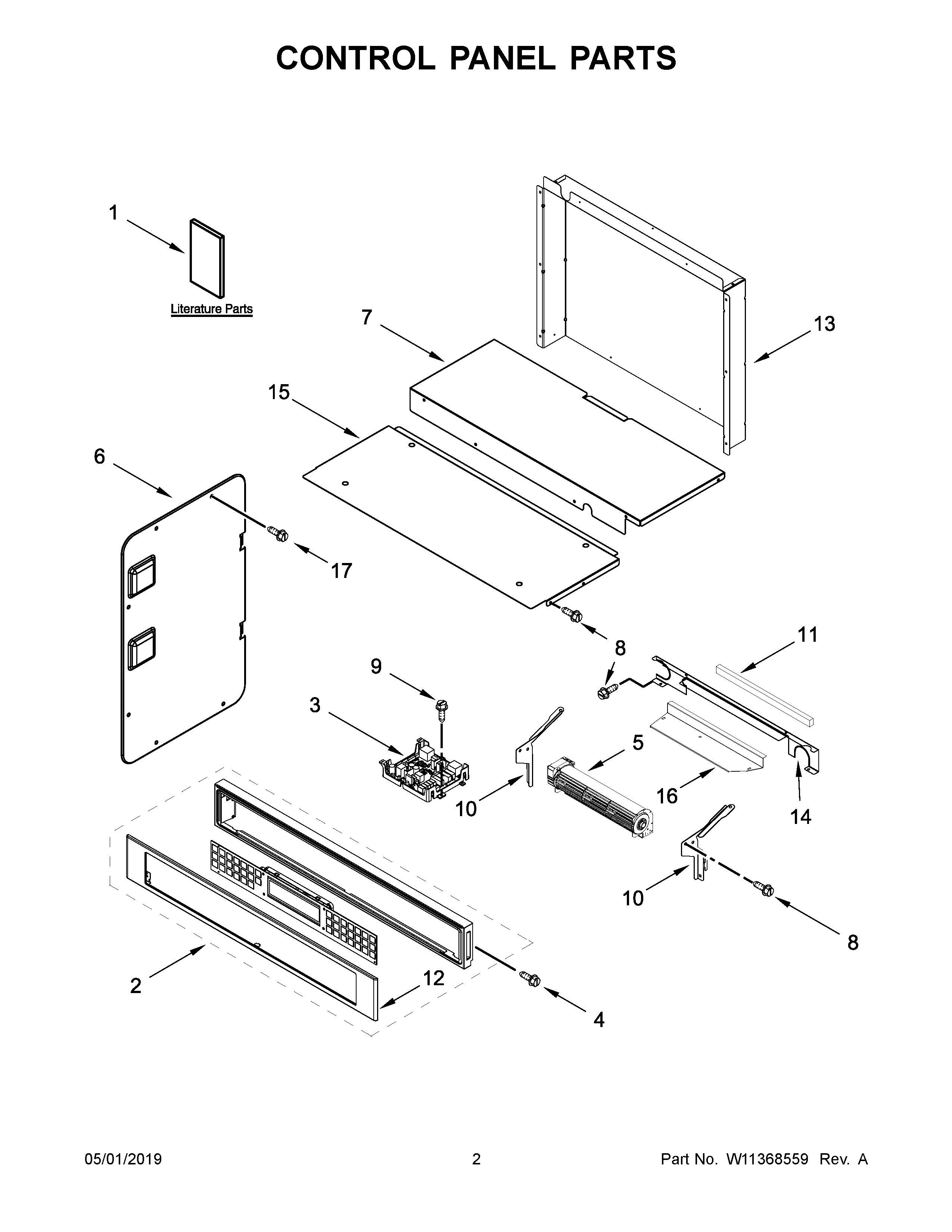

KOCE500ESS09 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11132989 Whirlpool Wire Harness
NI	W11229448 Whirlpool Wire Harness
NI	W10760039 Whirlpool Hardware
NI	W11356968 Whirlpool Wire Harness
NI	WPW10017410 Whirlpool Fuse
NI	W11226264 Whirlpool Wire Harness
NI	4454949 Whirlpool Oven Fuse Block
NI	4448664 Whirlpool Oven Mounting Bracket
NI	W11157223 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP3400015 Whirlpool Screw
NI	W11157180 Whirlpool Wire Harness
1B	GUIDE, USE & CARE (MICROWAVE OVEN)
1A	GUIDE, USE & CARE (OVEN)
1C	SHEET, TECH (ENGLISH)
1D	SHEET, TECH (FRENCH)
1	INSTRUCTIONS, INSTALLATION
2C	W10916778 Whirlpool Membrane Switch
2B	W11093254 Whirlpool Control Panel
2	W11093255 Whirlpool Control Panel
2A	W10916779 Whirlpool Membrane Switch
3	W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4	WPY706189 Whirlpool Stove Screw
5	W11245567 Whirlpool Blower Assembly
6	W10655467 Whirlpool Side Cover
7	W10588732 Whirlpool Cover Access
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12C	W10776407 Whirlpool Control Panel
12B	W10588740 Whirlpool Control Panel
12	W10588744 Whirlpool Control Panel
12A	PANL-CNTRL
13	W11037653 Whirlpool Rear Cover
14	CHASSIS, BACK DIVIDER
15	W10318158 Whirlpool Access Cover Assembly
16	W10681157 Whirlpool Fan Cover
17	W10443110 Whirlpool Screw
