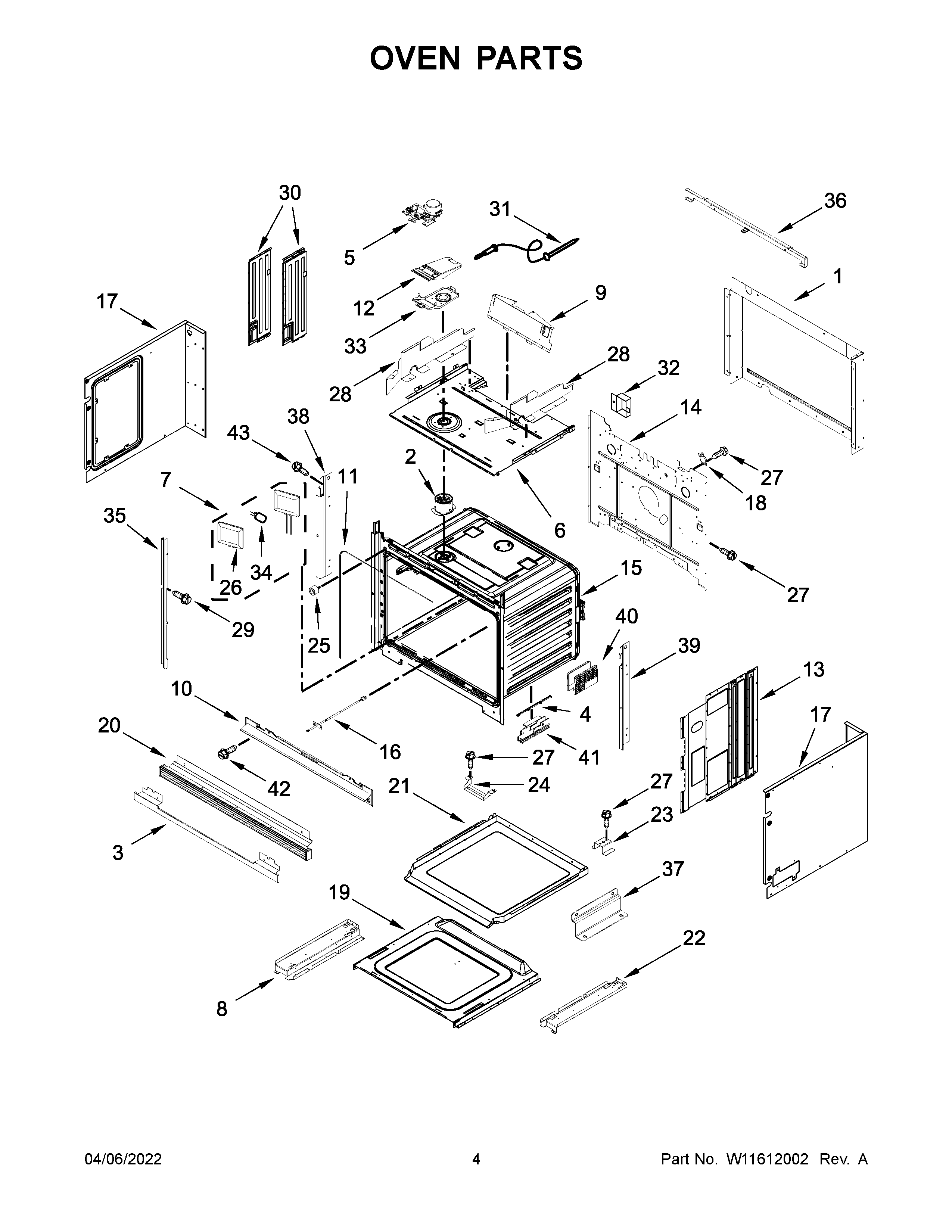

KOCE500ESS20 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, CAVITY
NI	INSULATION, WRAP
NI	CABINET (NOT A SERVICEABLE PART)
1	COVER-REAR
2	W11240525 Whirlpool Vent Tube
3	W11598135 Whirlpool Trim
4	W11598116 Whirlpool Spacer
5	W11686858 Whirlpool Door Latch
6	TOP, CHASSIS
7	W11292252 Whirlpool Oven Light
8	W10283020 Whirlpool Support
9	W10904163 Whirlpool Vent Deflector
10	VENT-OVEN
11	W11676903 Whirlpool Gasket
12	COVER, VENT EXHAUST
13	W11165274 Whirlpool Side Panel
14	BACK, CHASSIS
16	W11598120 Whirlpool Thermostat
17	SIDE, COMBO CHASSIS (LEFT)
17A	SIDE, COMBO CHASSIS (RIGHT)
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	COVR-ACESS
20	W11369885 Whirlpool Oven Vent
20A	W11598202 Whirlpool Oven Vent
20B	W11369884 Whirlpool Oven Heat Deflector
21	COVR-ACESS
22	W10283021 Whirlpool Support
23	SUPPORT, AIR CHANNEL
24	SPACER, CHASSIS BOTTOM DUCT
25	W11598125 Whirlpool Bumper
26	WPW10519866 Whirlpool Light
27	SCREW
28A	DEFLECTOR, CHASSIS (RIGHT)
28	DEFLECTOR, CHASSIS (LEFT)
29	W11602623 Whirlpool Screw
30A	W11598151 Whirlpool Side Cover
30	W11598150 Whirlpool Side Cover
31	WP9755542 Whirlpool Oven Meat Probe
32	8285593 Whirlpool Oven Wire Cover
33	BASE, VENT EXHAUST
34	WPW10472384 Whirlpool Light Bulb
35A	TRIM
35	TRIM
36	W10283022 Whirlpool Support
37	W10283024 Whirlpool Mounting Bracket
38	W11627410 Whirlpool Mounting Rail
39	W11627411 Whirlpool Mounting Rail
40	W11598170 Whirlpool Level Foot
41A	W11598168 Whirlpool Leveling Foot
41	W11598169 Whirlpool Foot Level Assembly
42	WPY706189 Whirlpool Stove Screw
43	SCREW
44	W11134657 Whirlpool Rear Cover
