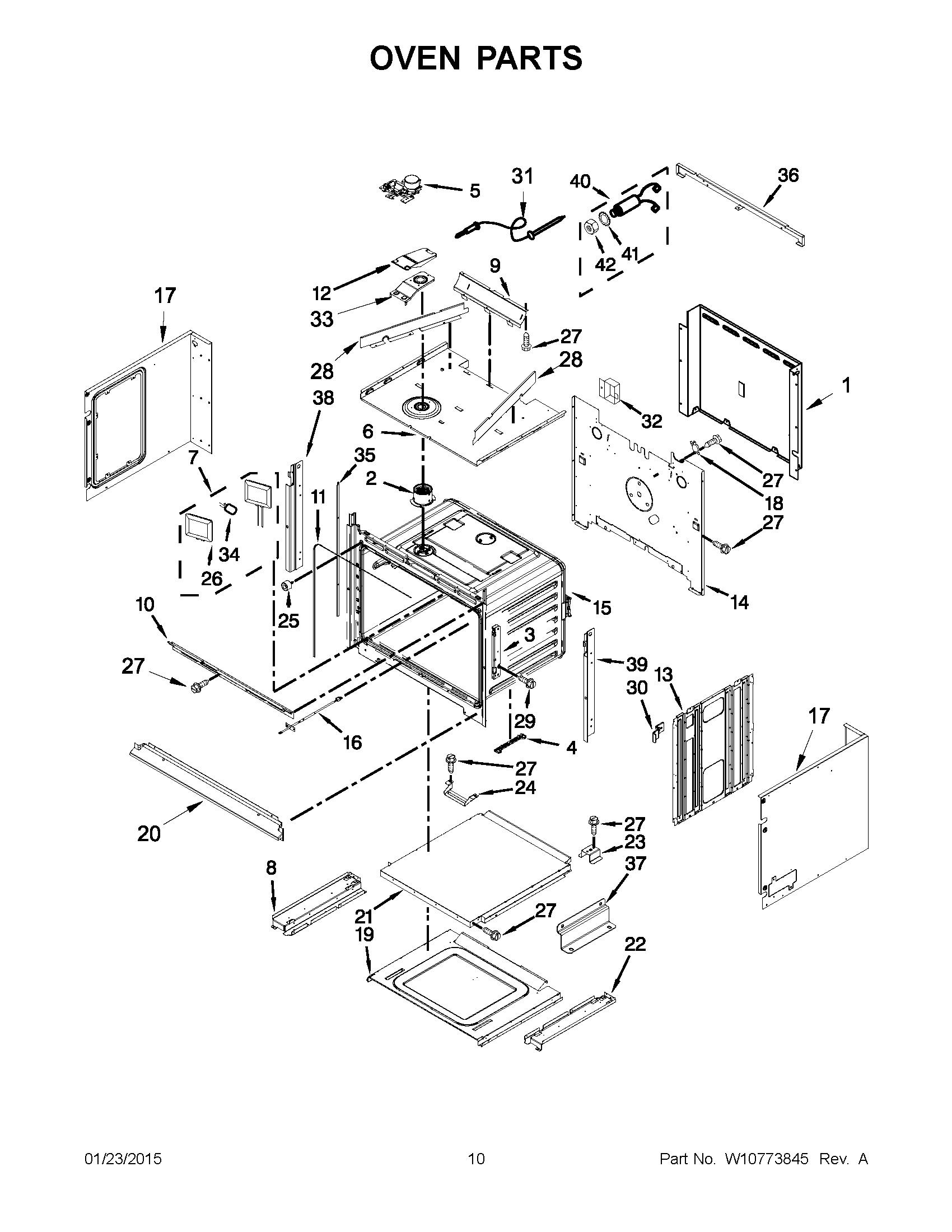

KOCE500EWH01 06 – OVEN PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11684789 Whirlpool Insulation
NIW11688731 Whirlpool Insulation
1COVER, BACK DUCT
2W11240525 Whirlpool Vent Tube
3W11613828 Whirlpool Hinge Receptacle
4W11240831 Whirlpool Spacer
5W10883049 Whirlpool Door Latch
6TOP, CHASSIS
8W10283020 Whirlpool Support
9W10904163 Whirlpool Vent Deflector
10W10495154 Whirlpool Oven Vent
11W11623080 Whirlpool Gasket
12W10616810 Whirlpool Exhaust Cover
13SIDE, CHASSIS
14BACK, CHASSIS
16PROBE, SENSOR
17AW10283029 Whirlpool Side Cover
17CHASSIS, COMBO SIDE (LEFT)
18WP4449751 Whirlpool Range Oven Thermostat Fix
19W11238787 Whirlpool Manifold Pipe
20BWPW10327374 Whirlpool Oven Vent
20CASSEMBLY, BOTTOM VENT (BLACK STAINLESS)
20AWPW10506348 Whirlpool Oven Vent
20WPW10351275 Whirlpool Oven Vent
21WPW10283008 Whirlpool Access Cover
22W10283021 Whirlpool Support
23W10213759 Whirlpool Support
24W10351308 Whirlpool Support Bracket
25WPW10351278 Whirlpool Bumper
26WPW10519866 Whirlpool Light
27SCREW
28W10681156 Whirlpool Vent Deflector
29WPW10254050 Whirlpool Screw
30W11376811 Whirlpool Spacer Assembly
31WP9755542 Whirlpool Oven Meat Probe
328285593 Whirlpool Oven Wire Cover
33W10616809 Whirlpool Vent Tube
34WPW10472384 Whirlpool Light Bulb
35AW10536162 Whirlpool Microwave Trim Cover Kit
36W10283022 Whirlpool Support
37W10283024 Whirlpool Mounting Bracket
38W10360517 Whirlpool Dishwasher Mounting Bracket
39BRKT-MNTG
40WPW10524044 Whirlpool Jack Probe
41WP9755547 Whirlpool Lockwasher
42WP9755546 Whirlpool Locknut
