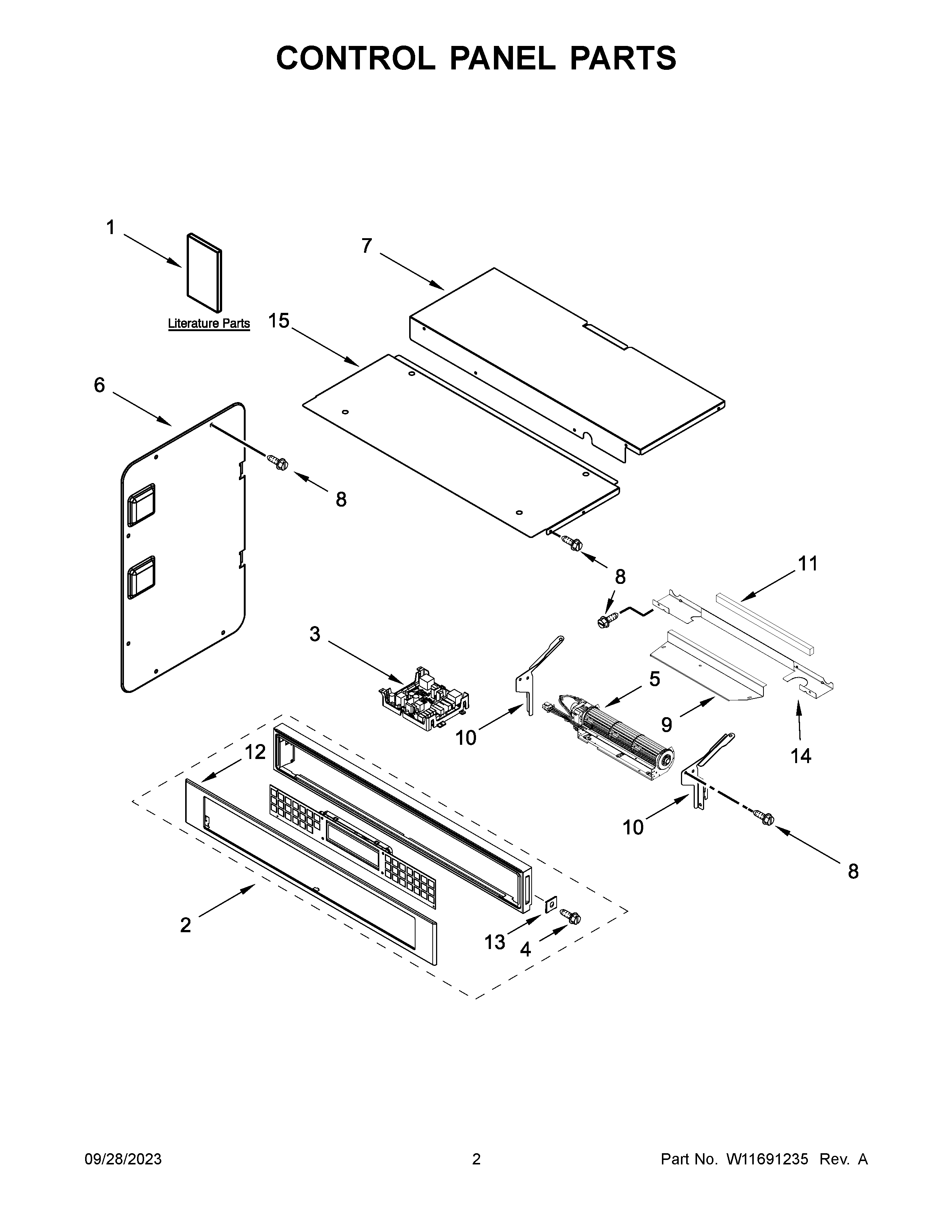

KOCE500EWH23 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11602626 Whirlpool Oven Microwave Hardware
NI	W11226264 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11727826 Whirlpool Wire Harness
NI	4448664 Whirlpool Oven Mounting Bracket
NI	WP3400015 Whirlpool Screw
NI	W11731943 Whirlpool Wire Harness
NI	W11229448 Whirlpool Wire Harness
NI	W11256627 Whirlpool Wire Harness
1A	QUICK START GUIDE
1B	TECH SHEET
1	OWNER'S MANUAL
2	W11600635 Whirlpool Control Panel
2A	W11600634 Whirlpool Control Panel
2B	W11600633 Whirlpool Control Panel
3	W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
4	SCREW (BLACK)
5	BLOWER
6	W10655467 Whirlpool Side Cover
7	W10588732 Whirlpool Cover Access
8	SCREW
9	W10681157 Whirlpool Fan Cover
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12A	W10588740 Whirlpool Control Panel
12B	W10776407 Whirlpool Control Panel
12	PANL-CNTRL
13	WP4450118 Whirlpool Nut
14	DIVIDER, CHASSIS BACK
15	W10318158 Whirlpool Access Cover Assembly
