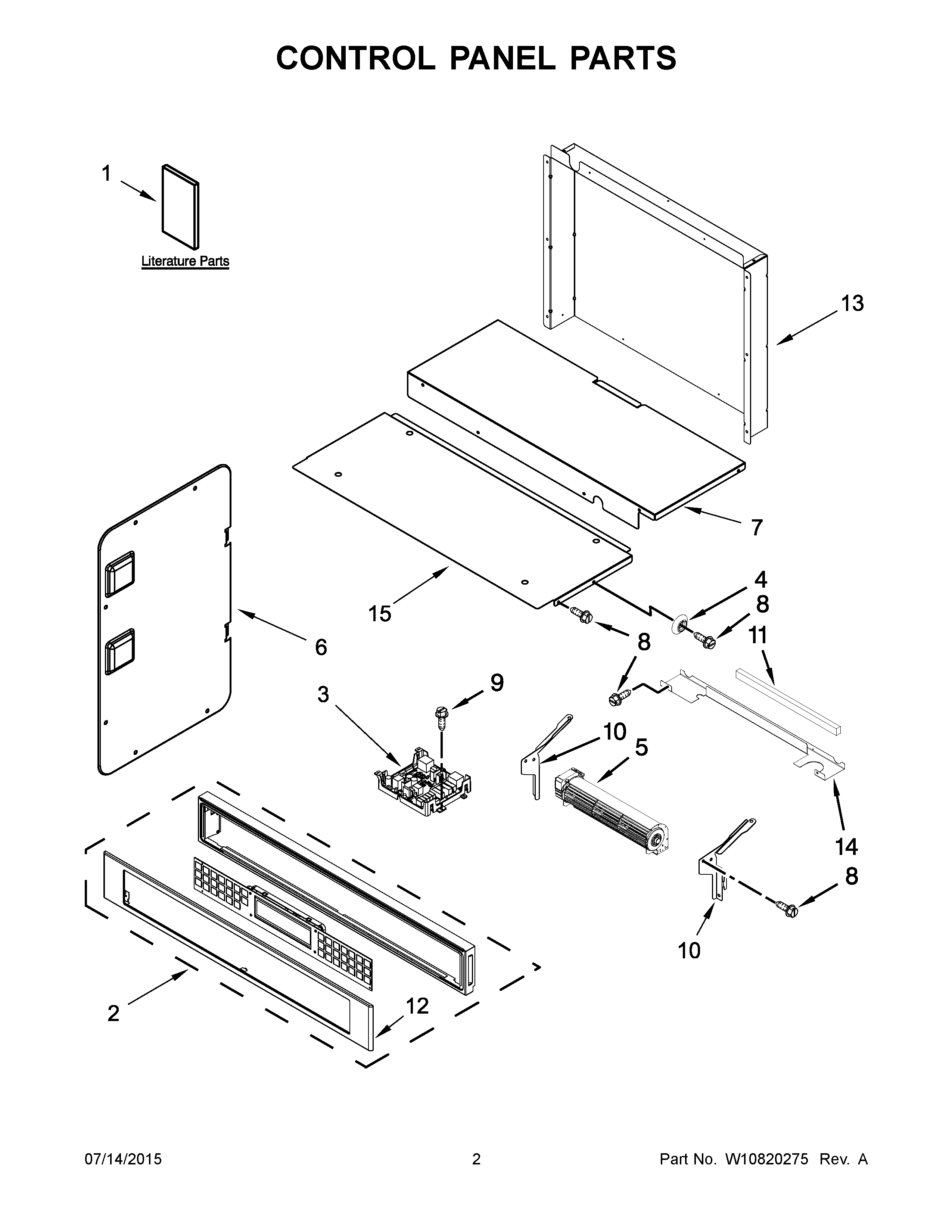

KOCE507EBL02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W10603947 Whirlpool Wire Harness
NI	W11226264 Whirlpool Wire Harness
NI	WPW10017410 Whirlpool Fuse
NI	16515 Whirlpool Clip
NI	W10573327 Whirlpool Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10632455 Whirlpool Wire Harness
NI	W10603949 Whirlpool Wire Harness
NI	W10874060 Whirlpool Microwave Wire Harness
NI	4454949 Whirlpool Oven Fuse Block
1B	GUIDE, USE & CARE (MICROWAVE OVEN)
1C	TECH SHEET (ENGLISH)
1D	TECH SHEET (FRENCH)
1A	GUIDE, USE & CARE (OVEN)
1	INSTRUCTIONS, INSTALLATION
2	W10916781 Whirlpool Membrane Switch
2A	W11093259 Whirlpool Console + Core
2B	W11093258 Whirlpool Control Panel
3	W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	W11245567 Whirlpool Blower Assembly
6	W10655467 Whirlpool Side Cover
7	CHASSIS, COVER TOP BACK 27``
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12A	W10588745 Whirlpool Control Panel
12B	W10588741 Whirlpool Control Panel
12	W10588747 Whirlpool Control Panel
13	W10519703 Whirlpool Rear Cover
14	W10655465 Whirlpool Mounting Bracket
15	W10318159 Whirlpool Access Cover
