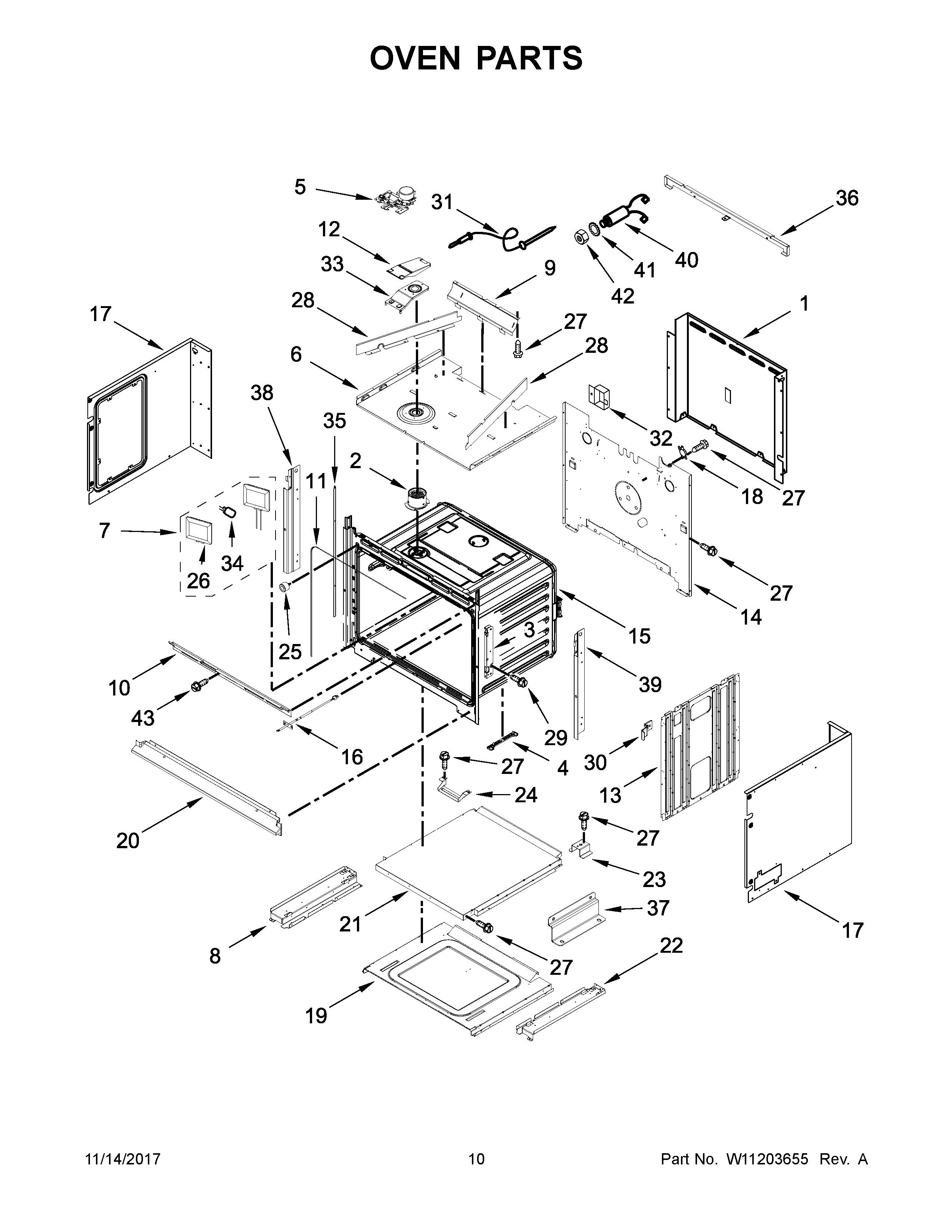

KOCE507EBL06 06 – OVEN PARTS

Products

Position	Product
NI	W10520716 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11688333 Whirlpool Insulation
1	COVER, BACK DUCT
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	W11240831 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	CHASSIS, TOP
8	W10283020 Whirlpool Support
9	W10904163 Whirlpool Vent Deflector
10	VENT, CENTER 27“
11	W10856596 Whirlpool Oven Gasket
12	W10616810 Whirlpool Exhaust Cover
13	SIDE, CHASSIS
14	BACK, CHASSIS
16	W10859573 Whirlpool Range Oven Temperature Sensor
17A	W10283029 Whirlpool Side Cover
17	CHASSIS, COMBO SIDE (LEFT)
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	BASE, CHASSIS
20B	WPW10351280 Whirlpool Oven Vent
20A	W10506345 Whirlpool Vent
20	WPW10327375 Whirlpool Oven Vent
21	WPW10283008 Whirlpool Access Cover
22	W10283021 Whirlpool Support
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	WPW10351278 Whirlpool Bumper
26	WPW10519866 Whirlpool Light
27	SCREW
28	W10681156 Whirlpool Vent Deflector
29	WPW10254050 Whirlpool Screw
30	W10347649 Whirlpool Spacer
31	WP9755542 Whirlpool Oven Meat Probe
32	8285593 Whirlpool Oven Wire Cover
33	W10616809 Whirlpool Vent Tube
34	WPW10472384 Whirlpool Light Bulb
35A	W10536162 Whirlpool Microwave Trim Cover Kit
36	W10283023 Whirlpool Support
37	SIDE, BRACKET
38	W10360517 Whirlpool Dishwasher Mounting Bracket
39	BRKT-MNTG
40	W11220388 Whirlpool Jack Probe
41	WP9755547 Whirlpool Lockwasher
42	WP9755546 Whirlpool Locknut
43	W11193480 Whirlpool Screw
