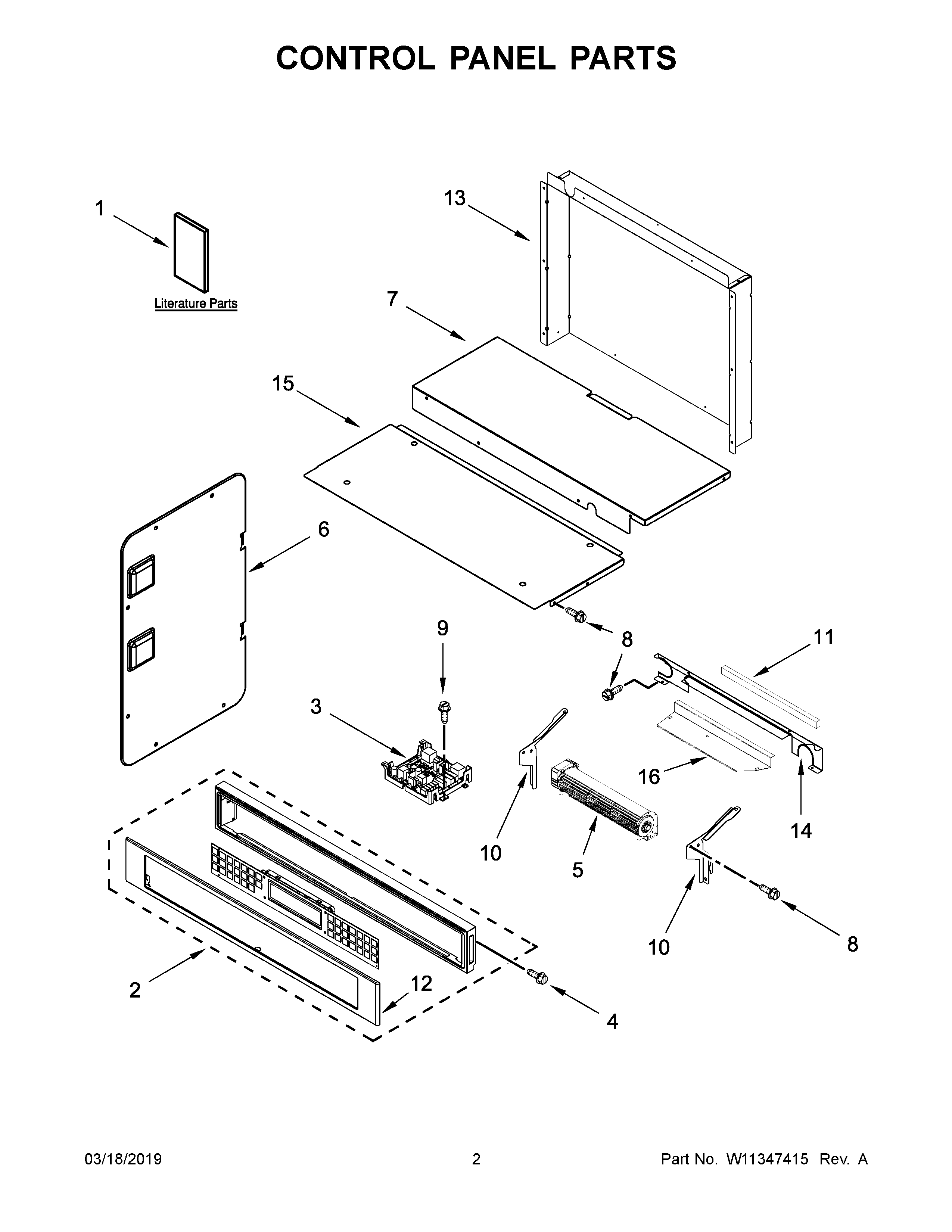

KOCE507EBL08 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11157223 Whirlpool Wire Harness
NI	W11132989 Whirlpool Wire Harness
NI	W11229448 Whirlpool Wire Harness
NI	W10760039 Whirlpool Hardware
NI	WPW10017410 Whirlpool Fuse
NI	W11226264 Whirlpool Wire Harness
NI	4454949 Whirlpool Oven Fuse Block
NI	W10874060 Whirlpool Microwave Wire Harness
NI	W11157180 Whirlpool Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
1B	GUIDE, USE & CARE (MICROWAVE OVEN)
1	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE & CARE (OVEN)
1C	SHEET, TECH (ENGLISH)
1D	SHEET, TECH (FRENCH)
2A	W10916781 Whirlpool Membrane Switch
2B	W11093258 Whirlpool Control Panel
2	W11093255 Whirlpool Control Panel
3	W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4	SCREW
5	W11245567 Whirlpool Blower Assembly
6	W10655467 Whirlpool Side Cover
7	CHASSIS, COVER TOP BACK 27 IN WIFI
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12A	W10588747 Whirlpool Control Panel
12B	W10588741 Whirlpool Control Panel
12	W10588745 Whirlpool Control Panel
13	W11037653 Whirlpool Rear Cover
14	CHASSIS, BACK DIVIDER
15	W10318159 Whirlpool Access Cover
16	W10681157 Whirlpool Fan Cover
