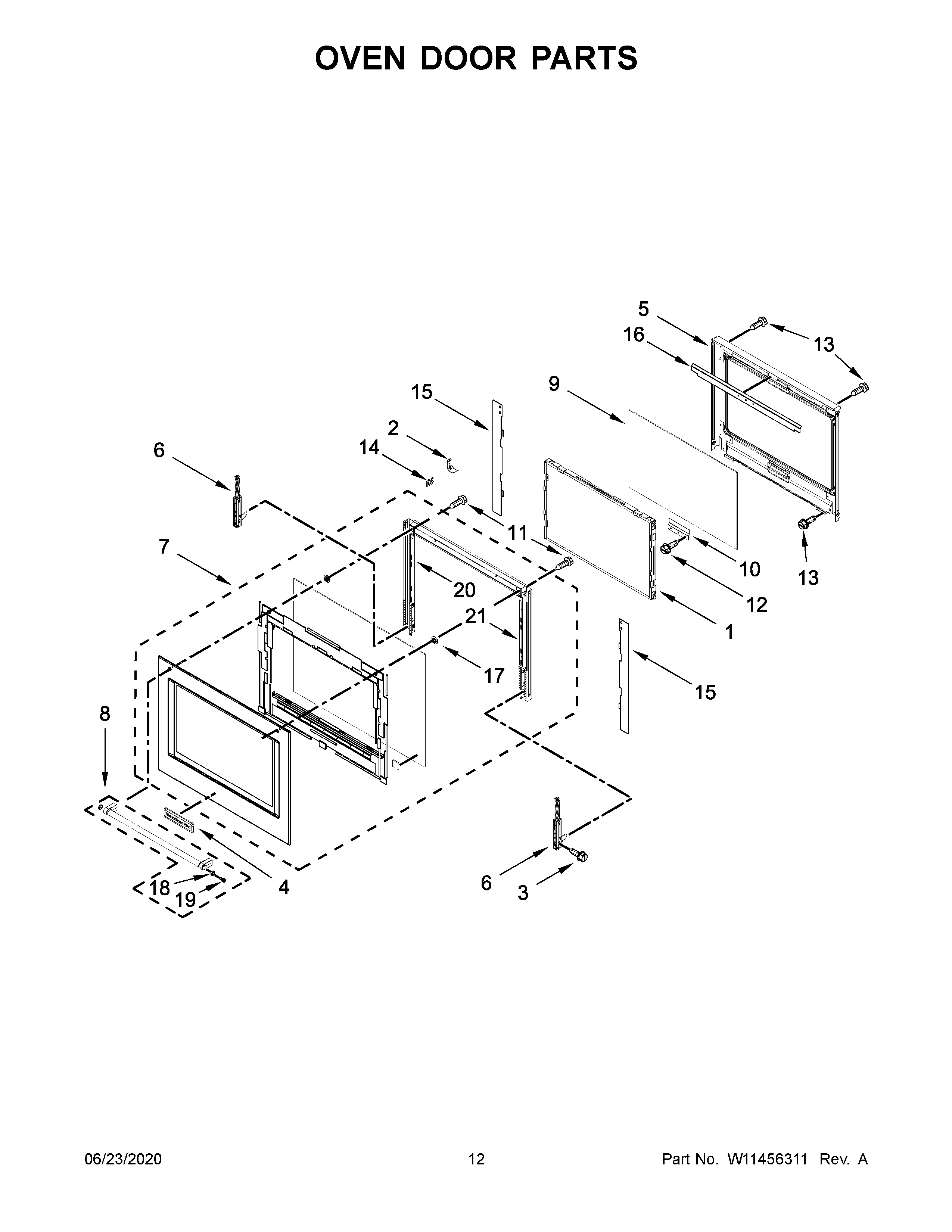

KOCE507EBL11 07 – OVEN DOOR PARTS

Products

Position	Product
1	W11458357 Whirlpool Door Glass
2	W10812024 Whirlpool Glass Bracket
3	WP3196183 Whirlpool Screw
4	W10839793 Whirlpool Refrigerator Nameplate
5	WPW10320793 Whirlpool Glass Frame
6	W11642291 Whirlpool Door Hinge
7	W10774421 Whirlpool Glass Door
7B	W10774423 Whirlpool Door Glass
7A	W10774422 Whirlpool Door Glass
8	W11525064 Whirlpool Door Handle
9	W11458359 Whirlpool Door Glass
10	W10853628 Whirlpool Oven Range Glass Bracket
11	W10831019 Whirlpool Stove Door Screw
12	SCREW
13	SCREW (BLACK)
14	W11025615 Whirlpool Glass Bracket
15	W10687815 Whirlpool Glass Bracket
15A	W10687814 Whirlpool Glass Bracket
16	W10669415 Whirlpool Glass Bracket
17	W11676355 Whirlpool Washer
18	W10846207 Whirlpool KA Handle MEDALLIONS-RED
19	W10920281 Whirlpool Screw
20	W11355410 Whirlpool Support Bracket Assembly
21	W11355411 Whirlpool Support Bracket
