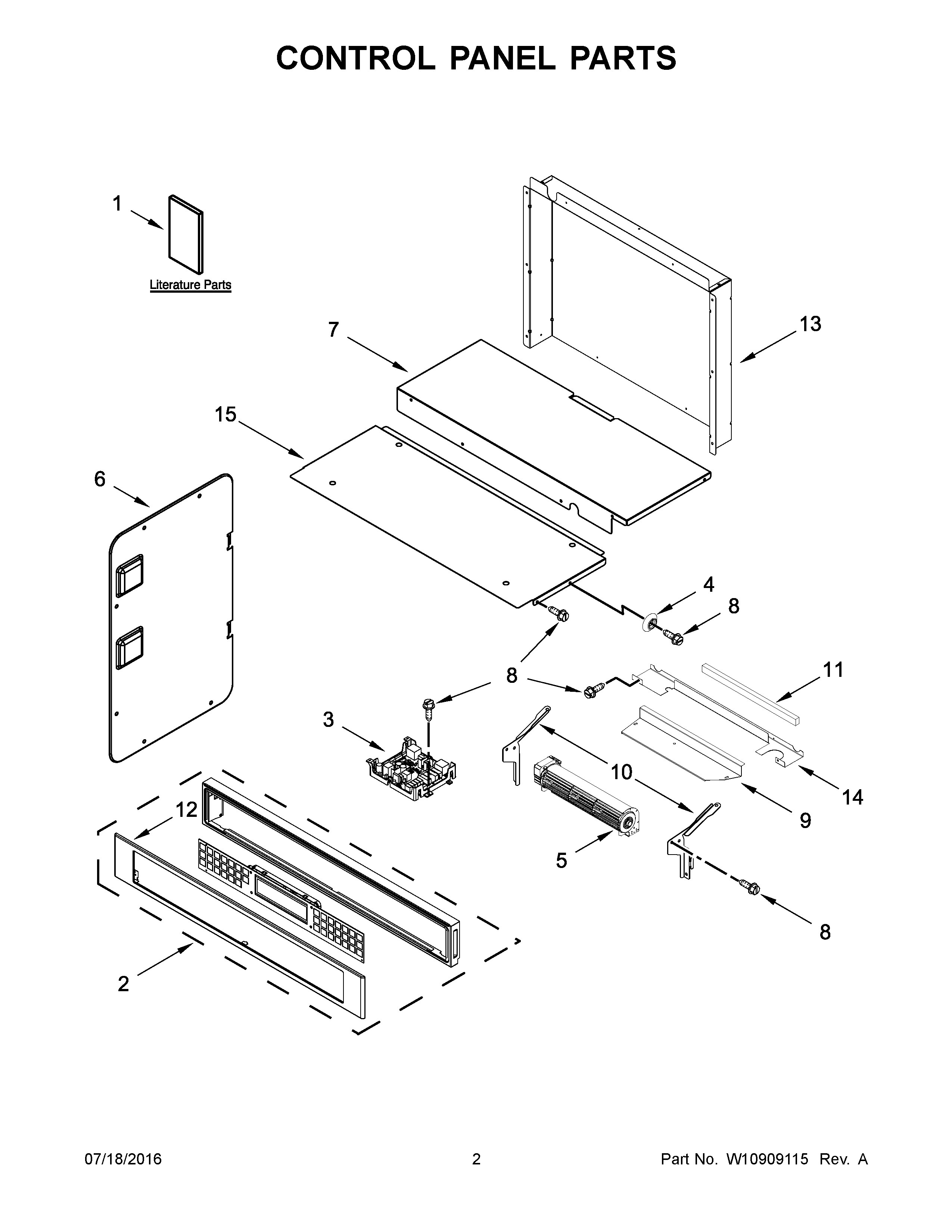

KOCE507EBS01 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11132989 Whirlpool Wire Harness
NI	W11226264 Whirlpool Wire Harness
NI	WPW10017410 Whirlpool Fuse
NI	W11157180 Whirlpool Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10789995 Whirlpool Wire Harness
NI	W10603949 Whirlpool Wire Harness
NI	W10874060 Whirlpool Microwave Wire Harness
NI	4454949 Whirlpool Oven Fuse Block
1B	GUIDE, USE & CARE (MICROWAVE OVEN)
1A	GUIDE, USE & CARE (OVEN)
1C	TECH SHEET (ENGLISH)
1D	TECH SHEET (FRENCH)
1	INSTRUCTIONS, INSTALLATION
2	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK STAINLESS)
3	W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	W11245567 Whirlpool Blower Assembly
6	W10655467 Whirlpool Side Cover
7	CHASSIS, COVER TOP BACK 27``
8	SCREW
9	W10681157 Whirlpool Fan Cover
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12	W10909789 Whirlpool Control Panel
13	W10519703 Whirlpool Rear Cover
14	CHASSIS, BACK DIVIDER
15	W10318159 Whirlpool Access Cover
