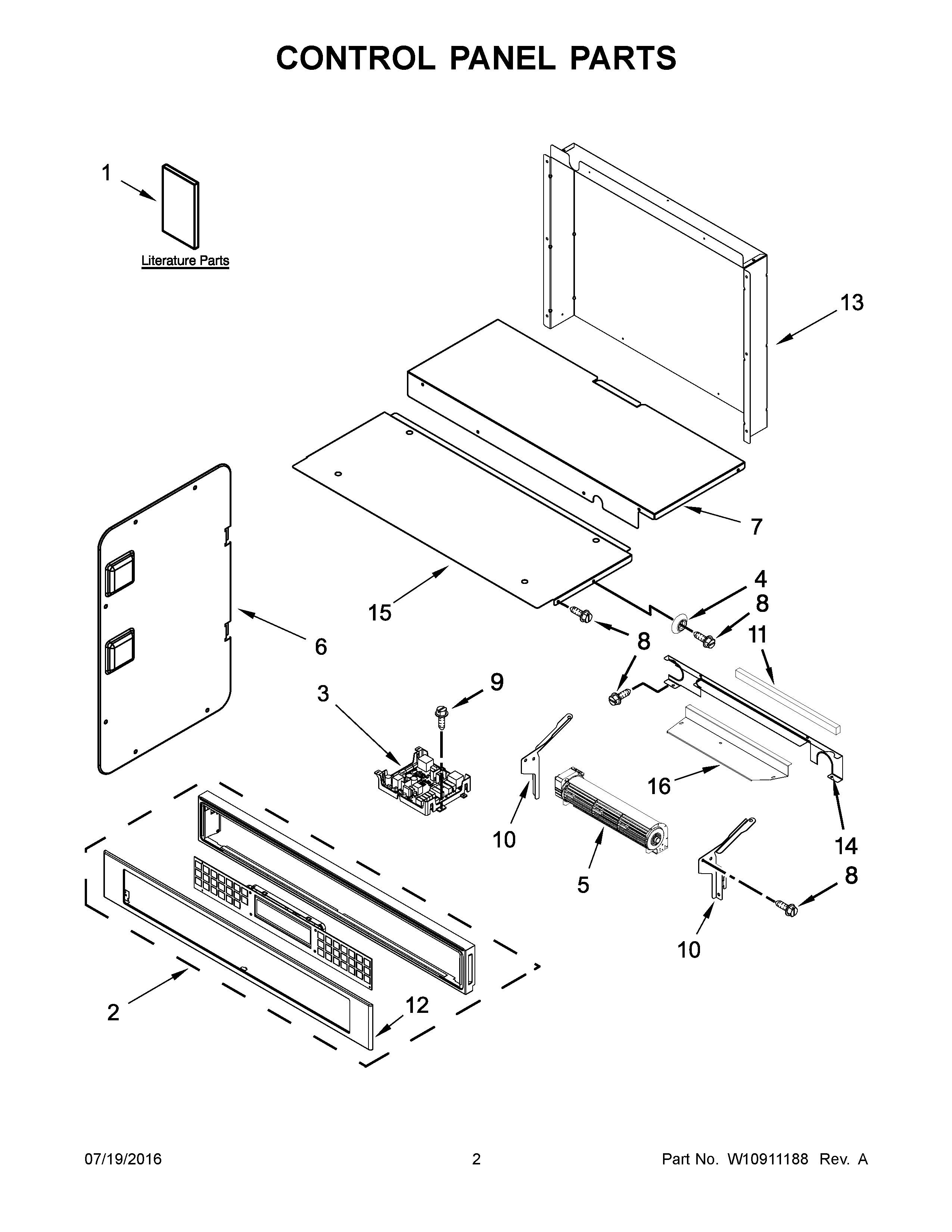

KOCE507EBS02 02 – CONTROL PANEL PARTS

KOCE507EBS02 02 – CONTROL PANEL PARTS

Written by

in

KOCE507EBS02 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW10874060 Whirlpool Microwave Wire Harness
NIW11132989 Whirlpool Wire Harness
NIW10603949 Whirlpool Wire Harness
NIWPW10017410 Whirlpool Fuse
NIW11226264 Whirlpool Wire Harness
NI4454949 Whirlpool Oven Fuse Block
NIW10789995 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIW11157180 Whirlpool Wire Harness
1AGUIDE, USE & CARE (OVEN)
1BGUIDE, USE & CARE (MICROWAVE OVEN)
1INSTRUCTIONS, INSTALLATION
1CTECH SHEET (ENGLISH)
2W10916780 Whirlpool Membrane Switch
3W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4W10618105 Whirlpool Spacer
5W11245567 Whirlpool Blower Assembly
6W10655467 Whirlpool Side Cover
7CHASSIS, COVER TOP BACK 27“
8SCREW
9SCREW
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12W10909789 Whirlpool Control Panel
13W10519703 Whirlpool Rear Cover
14CHASSIS, BACK DIVIDER
15W10318159 Whirlpool Access Cover
16W10681157 Whirlpool Fan Cover
