KOCE507EBS05 02 – CONTROL PANEL PARTS
Written by
in

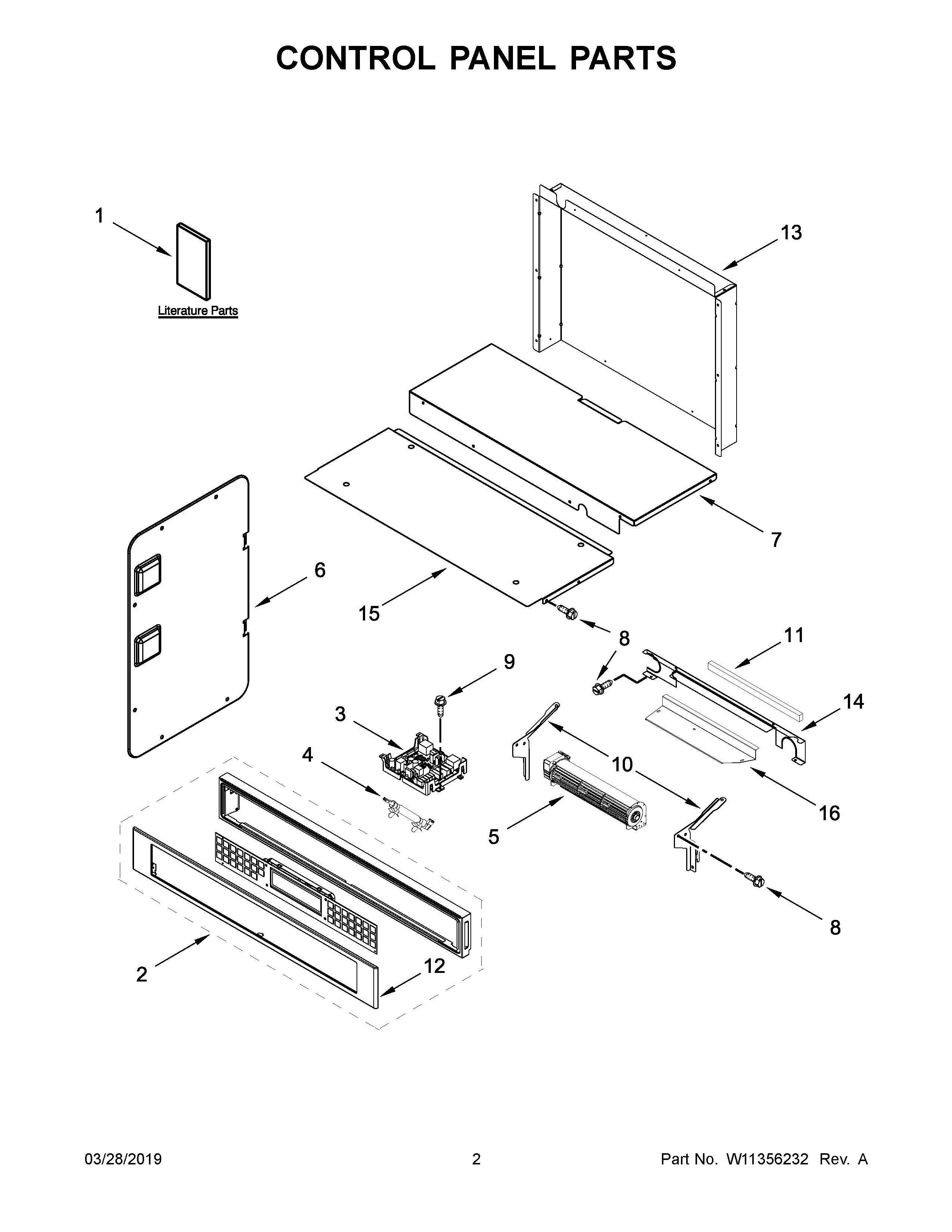

KOCE507EBS05 02 – CONTROL PANEL PARTS
Products
Position
Product
NI
W11325605 Whirlpool Wire Harness
NI
W10874060 Whirlpool Microwave Wire Harness
NI
W11229448 Whirlpool Wire Harness
NI
W11356977 Whirlpool Wire Harness
NI
WPW10017410 Whirlpool Fuse
NI
W11226264 Whirlpool Wire Harness
NI
4454949 Whirlpool Oven Fuse Block
NI
W11132989 Whirlpool Wire Harness
NI
W11157180 Whirlpool Wire Harness
NI
4450800 Whirlpool Oven Screw
NI
4448664 Whirlpool Oven Mounting Bracket
NI
CABINET (NOT A SERVICEABLE PART)
NI
W11157223 Whirlpool Wire Harness
1
INSTRUCTIONS, INSTALLATION
1B
GUIDE, USE & CARE (MICROWAVE OVEN)
1C
SHEET, TECH (ENGLISH)
1D
SHEET, TECH (FRENCH)
1A
GUIDE, USE & CARE (OVEN)
2
W10916780 Whirlpool Membrane Switch
3
W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4
WPW10545255 Whirlpool Thermal Fuse
5
W11245567 Whirlpool Blower Assembly
6
W10655467 Whirlpool Side Cover
7
CHASSIS, COVER TOP BACK 27 IN WIFI
8
SCREW
9
SCREW
10A
W10655462 Whirlpool Mounting Bracket
10
W10655463 Whirlpool Bracket Mounting
11
W10491987 Whirlpool Foam Seal
12
W10909789 Whirlpool Control Panel
13
W11037653 Whirlpool Rear Cover
14
CHASSIS, BACK DIVIDER
15
W10318159 Whirlpool Access Cover
16
W10681157 Whirlpool Fan Cover
←
