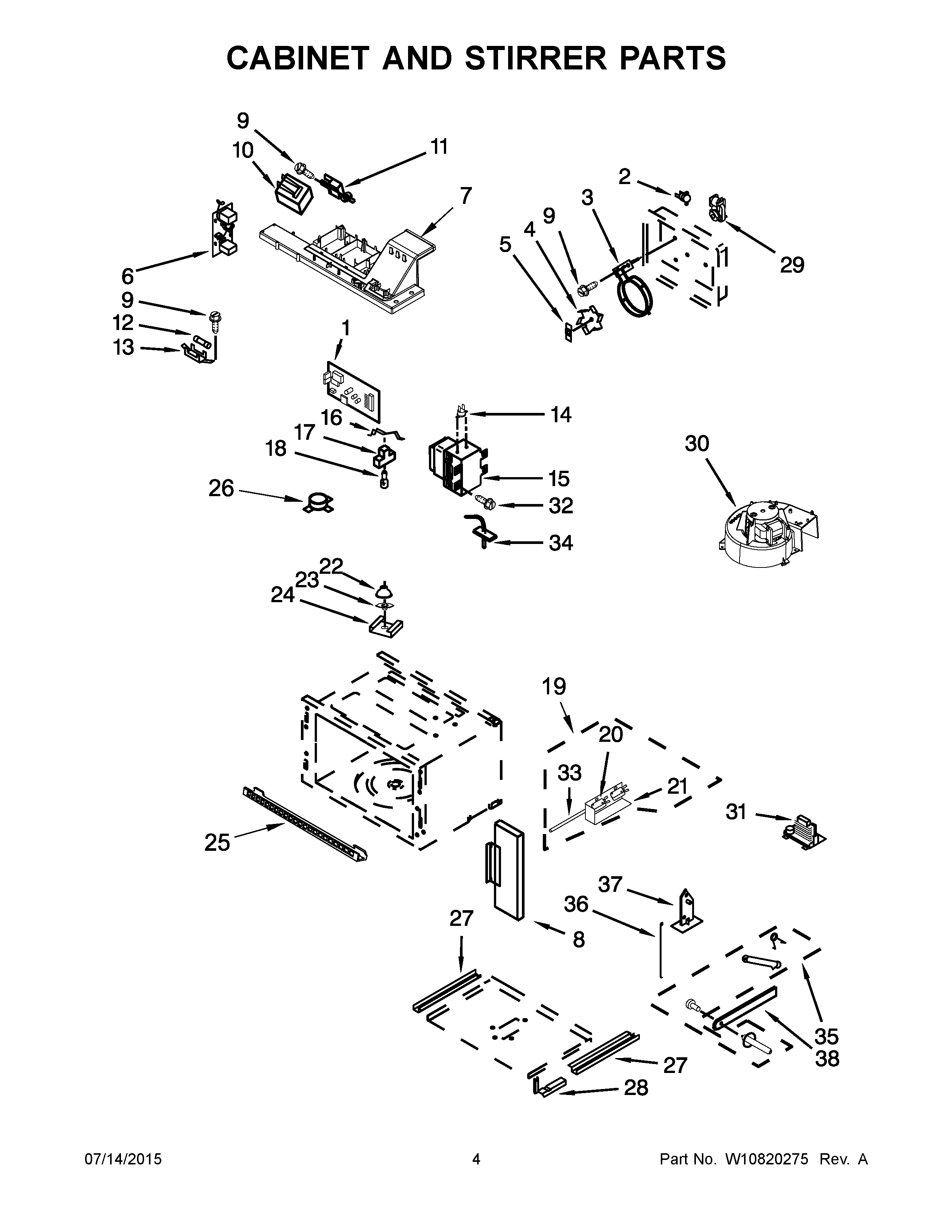

KOCE507ESS02 03 – CABINET AND STIRRER PARTS

Products

Position	Product
NI	W10389372 Whirlpool Microwave Wire Harness
1	W10915648-includeCORE Whirlpool W10915648 WPL Microwave Electronic Control Board
2	W11607085 Whirlpool Microwave Thermostat Fix
3	WPW10493735 Whirlpool Microwave Heater
4	W11512064 Whirlpool Microwave Fan
5	W11724411 Whirlpool Support
6	W11398764 Whirlpool Microwave Filter
7	461967754821 Whirlpool Microwave Magnetic Duct
8A	W11044584 Whirlpool Microwave Trim
8	461967017511 Whirlpool Microwave Trim
9	461967825321 Whirlpool Microwave Screw
10	W11238401 Whirlpool Microwave Transformer
11	461967842541 Whirlpool Microwave Actuator
12	W11188752 Whirlpool Microwave Fuse
13	W10245194 Whirlpool Microwave Fuse Block
14	W11233913 Whirlpool Microwave Sensor
15	W11346197 Whirlpool Magnetron
16	W10465869 Whirlpool Microwave Spring
17	WPW10490593 Whirlpool Microwave Lamp Housing
18	W10886919 Whirlpool Light Bulb
19	W11449277 Whirlpool Microwave Wire Harness
20	W10211972 Whirlpool Microwave Switch
21	WP8205683 Whirlpool Microwave Interlock
22	423107022541 Whirlpool Microwave Reflector
23	W11193483 Whirlpool Microwave Lamp Lens
24	W11440819 Whirlpool Clip
25	461968973251 Whirlpool Microwave Door Trim
26	W11699906 Whirlpool Sensor
27	8205707 Whirlpool Microwave Support
28	W10874474 Whirlpool Door Hinge
29	461969000371 Whirlpool Microwave Convection Motor
30	W11344874 Whirlpool Microwave Fan Motor
31	W10217711 Whirlpool Microwave Inverter
32	461967825971 Whirlpool Oven Screw
33	WPW10120235 Whirlpool Microwave Relief Rod
34	W11208292 Whirlpool Microwave Sensor
35	WPW10128850 Whirlpool Microwave Arm
36	W11700292 Whirlpool Spring
37	W11684510 Whirlpool Support
38	W11214480 Whirlpool Microwave Arm
