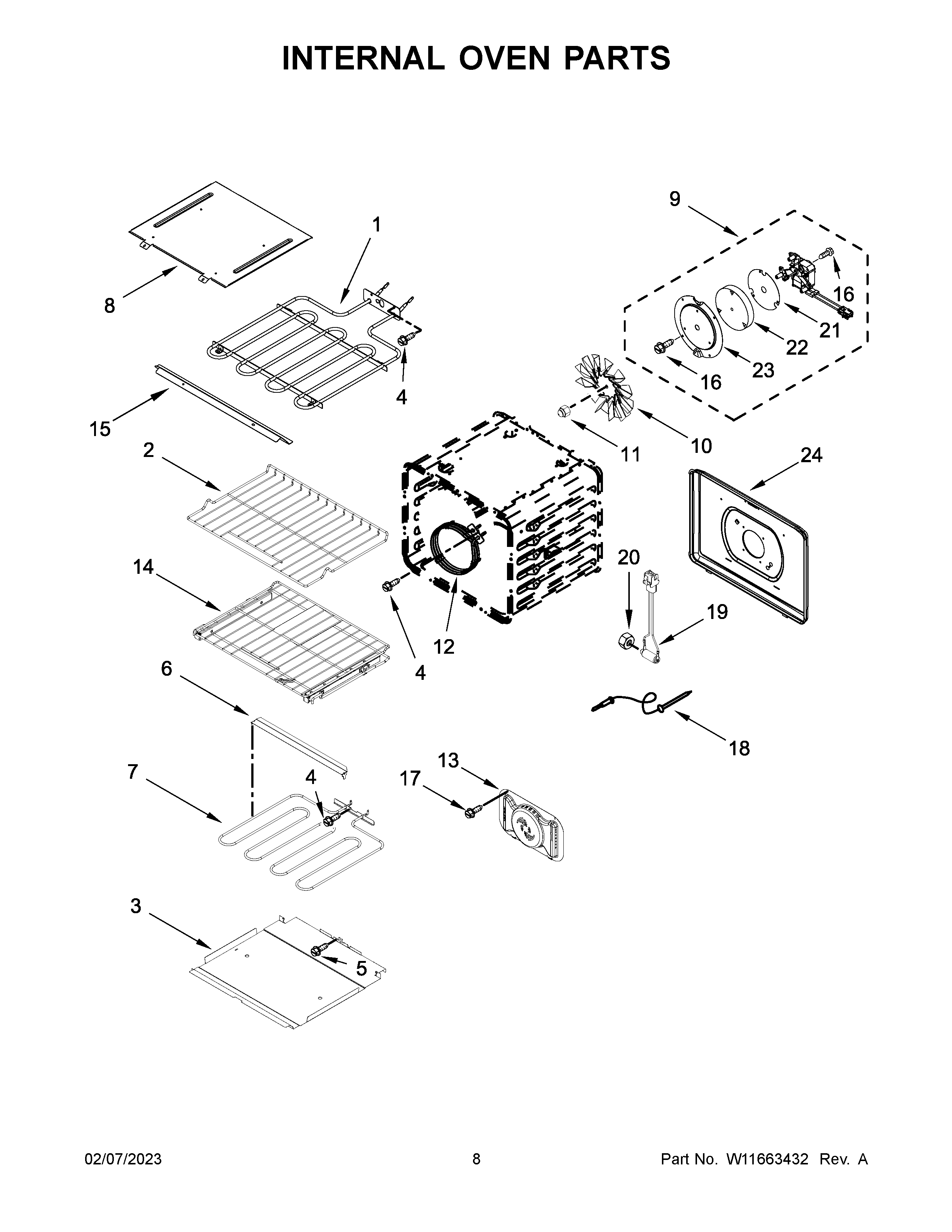

KOCE507ESS22 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	W11598122 Whirlpool Broil Element
2	WPW10554529 Whirlpool Oven Rack
3	W10318198 Whirlpool Bake Tray
4	SCREW
5	SCREW
6	W10282957 Whirlpool Bracket Support
7	BAKE ELEMENT
8	TOP-CABNT
9	W11617227 Whirlpool Fan Motor
10	W11548753 Whirlpool Convection Fan
11	W11548755 Whirlpool Nut
12	W11678579 Whirlpool Element
13	W11234761 Whirlpool Baffle Convector
13A	W11234763 Whirlpool Convection Baffle
15	SHIELD-HT
16	W10850807 Whirlpool Screw
17	WP74003976 Whirlpool Screw
18	WP9755542 Whirlpool Oven Meat Probe
19	W11252826 Whirlpool Probe Jack
20	W11231343 Whirlpool Lock Nut
21	PLATE, CONVECT MOTOR
22	INSULATION, CONVECT MOTOR
23	COVER, CONVECT PLATE
24	BACK, 27 IN CAVITY BAFFLE BOWTIE
