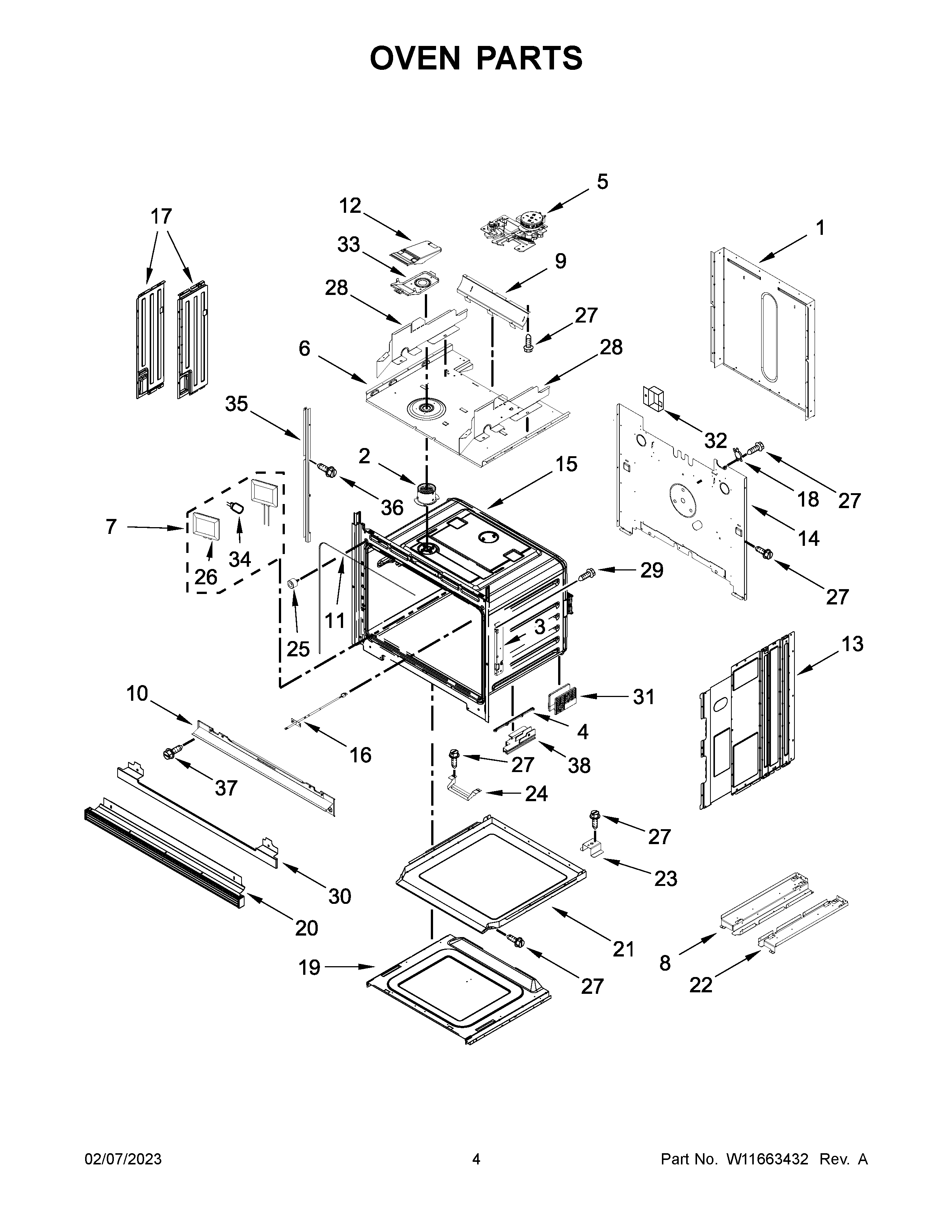

KOCE507EWH22 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	CABINET (NOT A SERVICEABLE PART)
NI	INSULATION, BACK
1	W11134657 Whirlpool Rear Cover
2	W11240525 Whirlpool Vent Tube
3A	W11712406 Whirlpool Receiver Hinge
3	W11712405 Whirlpool Receiver Hinge
4	W11598116 Whirlpool Spacer
5	W11686858 Whirlpool Door Latch
6	TOP, CHASSIS
7	W11292252 Whirlpool Oven Light
8	W10283020 Whirlpool Support
9	W10904163 Whirlpool Vent Deflector
10	W11518348 Whirlpool Vent
11	W11608109 Whirlpool Gasket
12	COVER, VENT EXHAUST
13	W11165274 Whirlpool Side Panel
16	W11598120 Whirlpool Thermostat
17A	W11598151 Whirlpool Side Cover
17	W11598150 Whirlpool Side Cover
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	BASE, CHASSIS
20	W11598191 Whirlpool Vent
20A	W11598189 Whirlpool Vent
20B	W11369893 Whirlpool Heat Deflector
21	COVR-ACESS
22	W10283021 Whirlpool Support
23	SUPPORT, AIR CHANNEL
24	SPACER, CHASSIS BOTTOM DUCT
25	W11598125 Whirlpool Bumper
26	WPW10519866 Whirlpool Light
27	SCREW
28	DEFLECTOR, CHASSIS (LEFT)
28A	DEFLECTOR, CHASSIS (RIGHT)
29	WPW10254050 Whirlpool Screw
30	W11712432 Whirlpool Trim Assembly
31	W11598170 Whirlpool Level Foot
32	8285593 Whirlpool Oven Wire Cover
33	BASE, VENT EXHAUST
34	WPW10472384 Whirlpool Light Bulb
35	TRIM
35A	TRIM
36	W11602623 Whirlpool Screw
37	WPY706189 Whirlpool Stove Screw
38	W11598169 Whirlpool Foot Level Assembly
38A	W11598168 Whirlpool Leveling Foot
