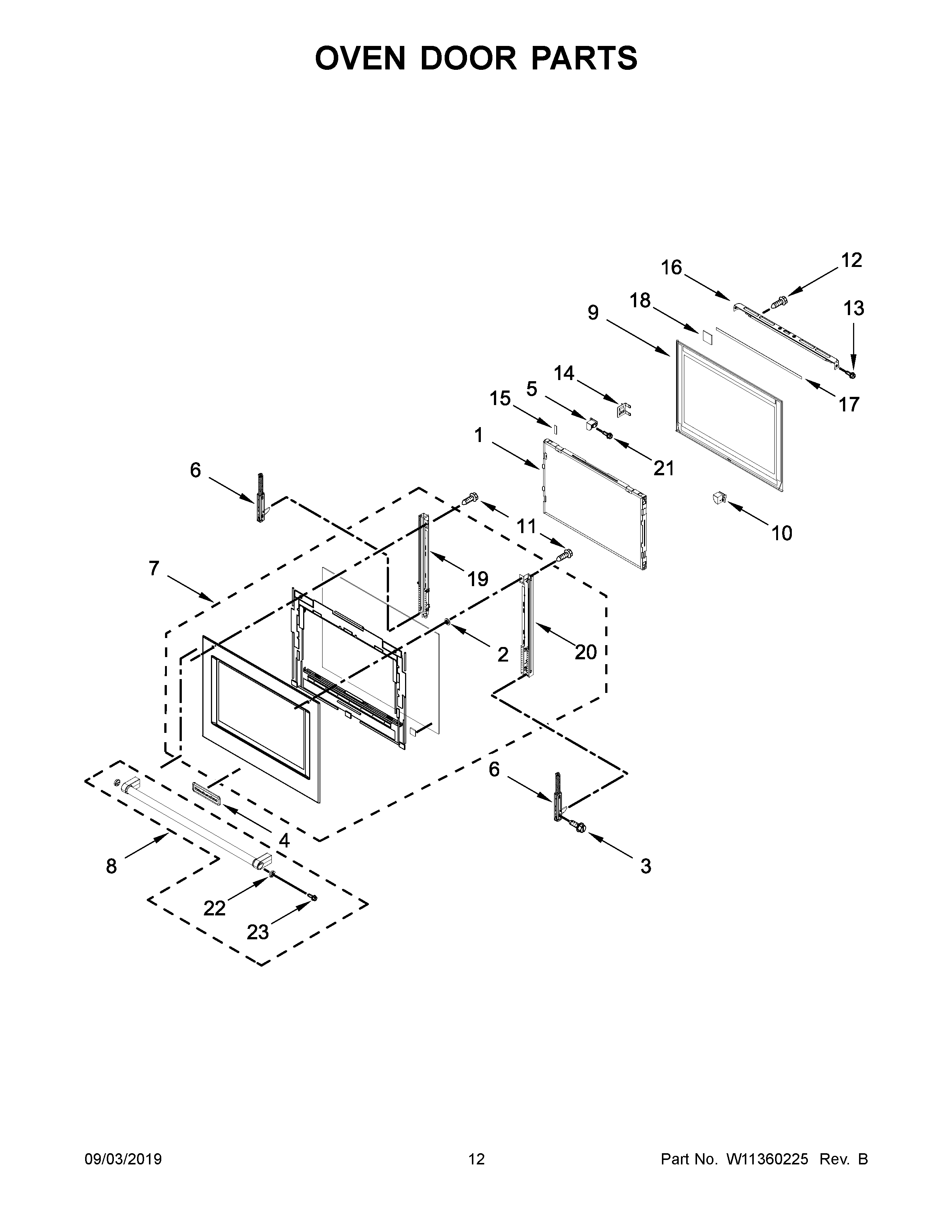

KOCE900HBS01 07 – OVEN DOOR PARTS

Products

Position	Product
1	W11295339 Whirlpool Door Glass
2	W11676355 Whirlpool Washer
3	WP3196183 Whirlpool Screw
4	W10839793 Whirlpool Refrigerator Nameplate
5	BRACKET, DOOR (LEFT)
6	W11295341 Whirlpool Hinge Receptacle
7A	W11294839 Whirlpool Door Glass
7	W11294840 Whirlpool Door Glass
8	W11518518 Whirlpool Door Handle
9	W11295340 Whirlpool Door Glass
10	WPW10581826 Whirlpool Support Bracket
11	W10831019 Whirlpool Stove Door Screw
12	SCREW
13	W11690596 Whirlpool Screw
14	WPW10549747 Whirlpool Clip
15	W10840861 Whirlpool Spacer
16	W11280091 Whirlpool Vent Trim
17	W11082539 Whirlpool Vent Gasket
18	WPW10517428 Whirlpool Spacer
19	W11355410 Whirlpool Support Bracket Assembly
20	W11355411 Whirlpool Support Bracket
21	SCREW
22	W10846207 Whirlpool KA Handle MEDALLIONS-RED
23	W10920281 Whirlpool Screw
