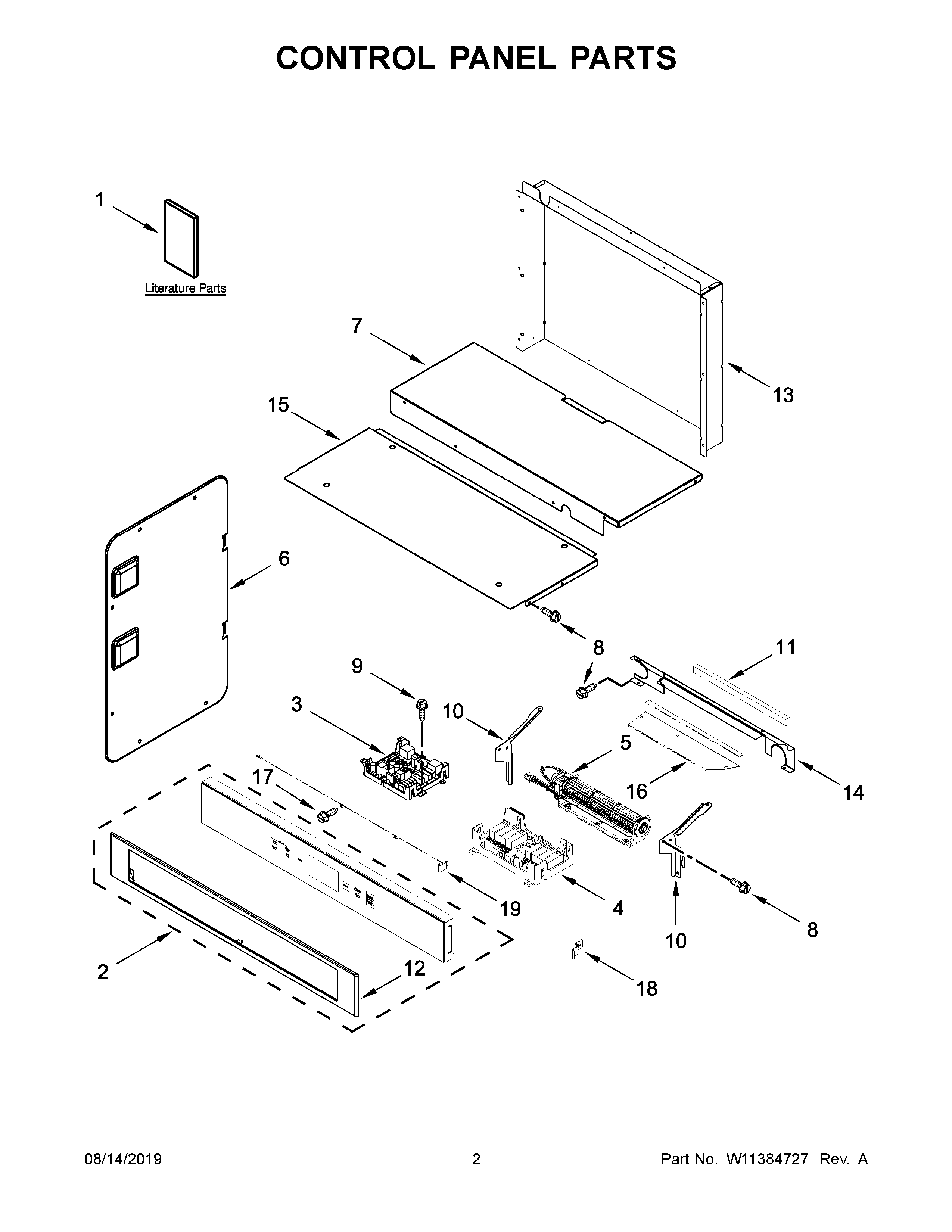

KOCE900HBS02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	WPW10017410 Whirlpool Fuse
NI	W11219538 Whirlpool Wire Harness
NI	W11325605 Whirlpool Wire Harness
NI	W11356968 Whirlpool Wire Harness
NI	W10760039 Whirlpool Hardware
NI	W11356990 Whirlpool Wire Harness
NI	W11356991 Whirlpool Wire Harness
NI	W11136143 Whirlpool Wire Harness
NI	4454949 Whirlpool Oven Fuse Block
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10339879 Whirlpool Wire Tie
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
1A	GUIDE, USE & CARE
1B	GUIDE, USE & CARE (MICROWAVE OVEN)
1C	GUIDE, INTERNET CONNECTIVITY
1D	DIAGRAM, WIRING
1	INSTRUCTIONS, INSTALLATION
2A	W11396718 Whirlpool Console + Core
2	W11396218 Whirlpool Console + Core
3	W11294388-includeCORE Whirlpool W11294388 Refrigerator Electronic Control Board
4	W11294389-includeCORE Whirlpool W11294389 Washer Electronic Control Board + Core
5	W11248652 Whirlpool Blower
6	W10655467 Whirlpool Side Cover
7	W10588732 Whirlpool Cover Access
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	W10588740 Whirlpool Control Panel
12A	W10776407 Whirlpool Control Panel
13	W11037653 Whirlpool Rear Cover
14	CHASSIS, BACK DIVIDER
15	W10318158 Whirlpool Access Cover Assembly
16	W10681157 Whirlpool Fan Cover
17	WPY706189 Whirlpool Stove Screw
18	W10347649 Whirlpool Spacer
19	W11537624 Whirlpool Antenna Assembly
