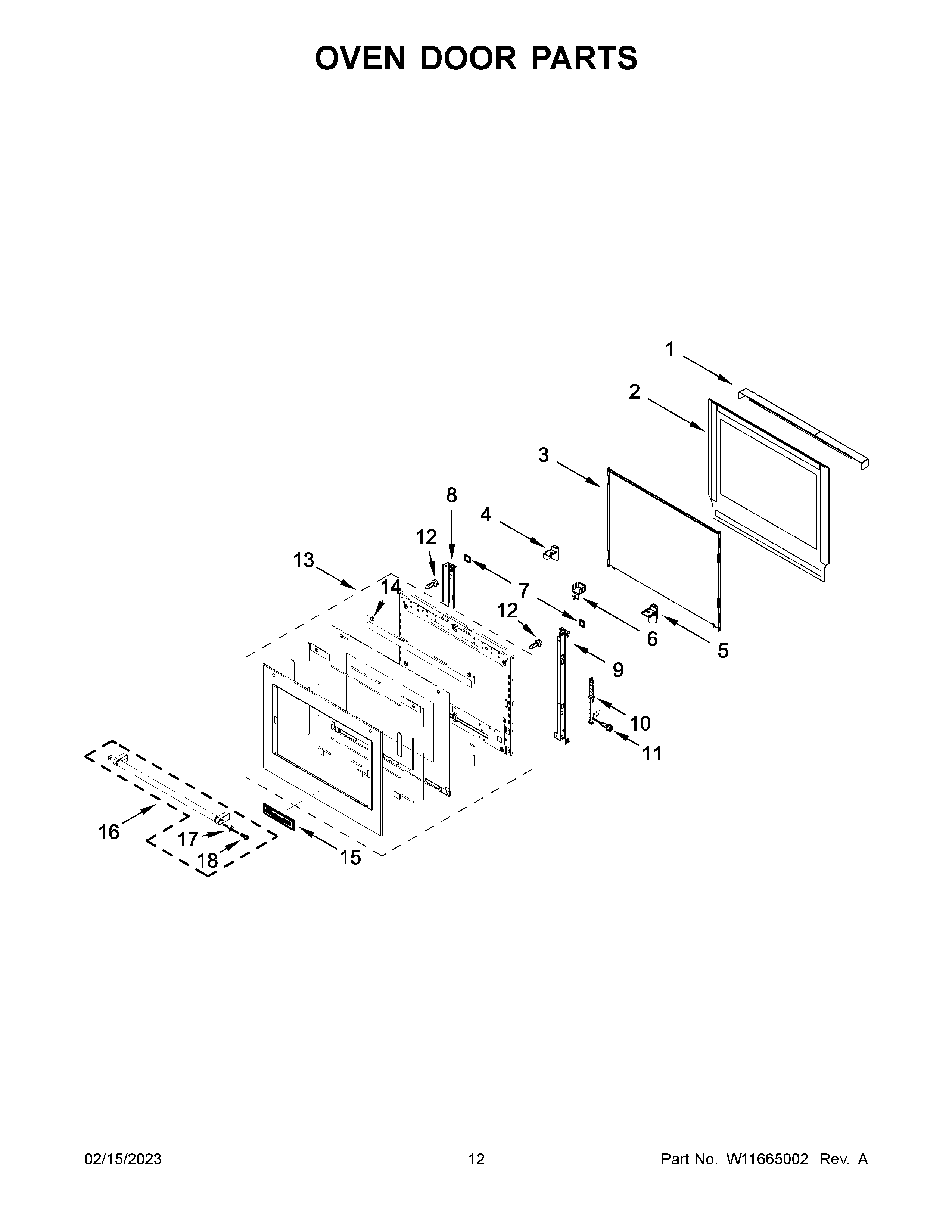

KOCE900HBS22 07 – OVEN DOOR PARTS

Products

Position	Product
1	TRIM-VENT
2	W11602610 Whirlpool Oven Glass Door
3	W11600213 Whirlpool Oven Door Glass
4	W11598130 Whirlpool Oven Support Bracket
5	W11598128 Whirlpool Oven Support Bracket
6	W11598131 Whirlpool Oven Clip
7	WPW10517428 Whirlpool Spacer
8	W11598126 Whirlpool Support Bracket
9	W11598127 Whirlpool Support Bracket
10A	HINGE, DOOR (RIGHT)
10	HINGE, DOOR (LEFT)
11	WP3196183 Whirlpool Screw
12	W11602624 Whirlpool Oven Screw
13	W11600222 Whirlpool Door Glass
13A	W11600221 Whirlpool Door Glass
14	W11676355 Whirlpool Washer
15	W10839793 Whirlpool Refrigerator Nameplate
16	W11518518 Whirlpool Door Handle
17	W10846207 Whirlpool KA Handle MEDALLIONS-RED
18	W10920281 Whirlpool Screw
