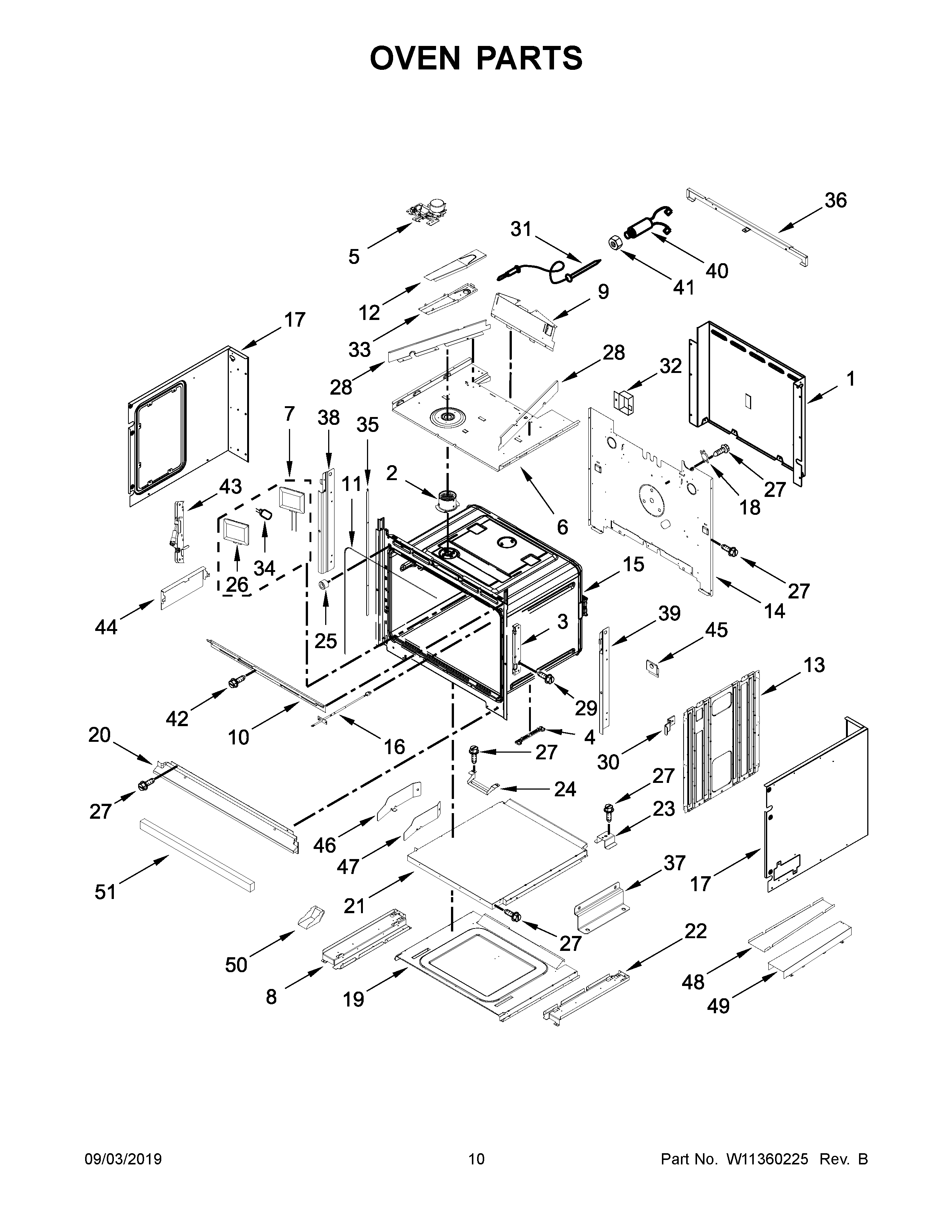

KOCE900HSS01 06 – OVEN PARTS

KOCE900HSS01 06 – OVEN PARTS

Written by

in

KOCE900HSS01 06 – OVEN PARTS

Products

PositionProduct
NIW11292324 Whirlpool Insulation
NICABINET (NOT A SERVICEABLE PART)
NIW11688731 Whirlpool Insulation
NIW11685004 Whirlpool Insulation
1COVER, BACK DUCT
2W11240525 Whirlpool Vent Tube
3W11613828 Whirlpool Hinge Receptacle
4W11292538 Whirlpool Spacer
5W10883049 Whirlpool Door Latch
6TOP, CHASSIS
7W11292252 Whirlpool Oven Light
8W10283020 Whirlpool Support
9W10904163 Whirlpool Vent Deflector
10VENT, CENTER 30"
11GASKET
12COVER, VENT EXHAUST
13PANEL-SIDE
13ASIDE, CHASSIS
14BACK, CHASSIS
16W11290976 Whirlpool Thermostat
17CHASSIS, COMBO SIDE (LEFT)
17AW11037649 Whirlpool Side Cover
18WP4449751 Whirlpool Range Oven Thermostat Fix
19W11238787 Whirlpool Manifold Pipe
20AW11348370 Whirlpool Oven Vent
20W11348369 Whirlpool Oven Vent Assembly
21CHASSIS, BOTTOM DUCT
22W10283021 Whirlpool Support
23W10213759 Whirlpool Support
24W10351308 Whirlpool Support Bracket
25WPW10351278 Whirlpool Bumper
26WPW10519866 Whirlpool Light
27SCREW
28W10681156 Whirlpool Vent Deflector
29WPW10254050 Whirlpool Screw
30SPACERS, FRONT
31WP9755542 Whirlpool Oven Meat Probe
328285593 Whirlpool Oven Wire Cover
33BASE, VENT EXHAUST
34WPW10472384 Whirlpool Light Bulb
35AW10536162 Whirlpool Microwave Trim Cover Kit
36W10283022 Whirlpool Support
37W10283024 Whirlpool Mounting Bracket
38W10710302 Whirlpool Mounting Bracket
39W10710309 Whirlpool Mounting Bracket
40W11220388 Whirlpool Jack Probe
41W11231343 Whirlpool Lock Nut
42W11193480 Whirlpool Screw
43W11045086 Whirlpool Hinge Receptacle
44SHIELD, SLOW CLOSE HINGE
45SPACER, CENTER
46ANGLE, BOTTOM DUCT CORNER (LH)
47ANGLE, BOTTOM DUCT CORNER (RH)
48FLUE, BOTTOM
49FLUE, TOP
50DEFLECTOR, BACK DUCT
51GASKET, RUBBER (652MM)
