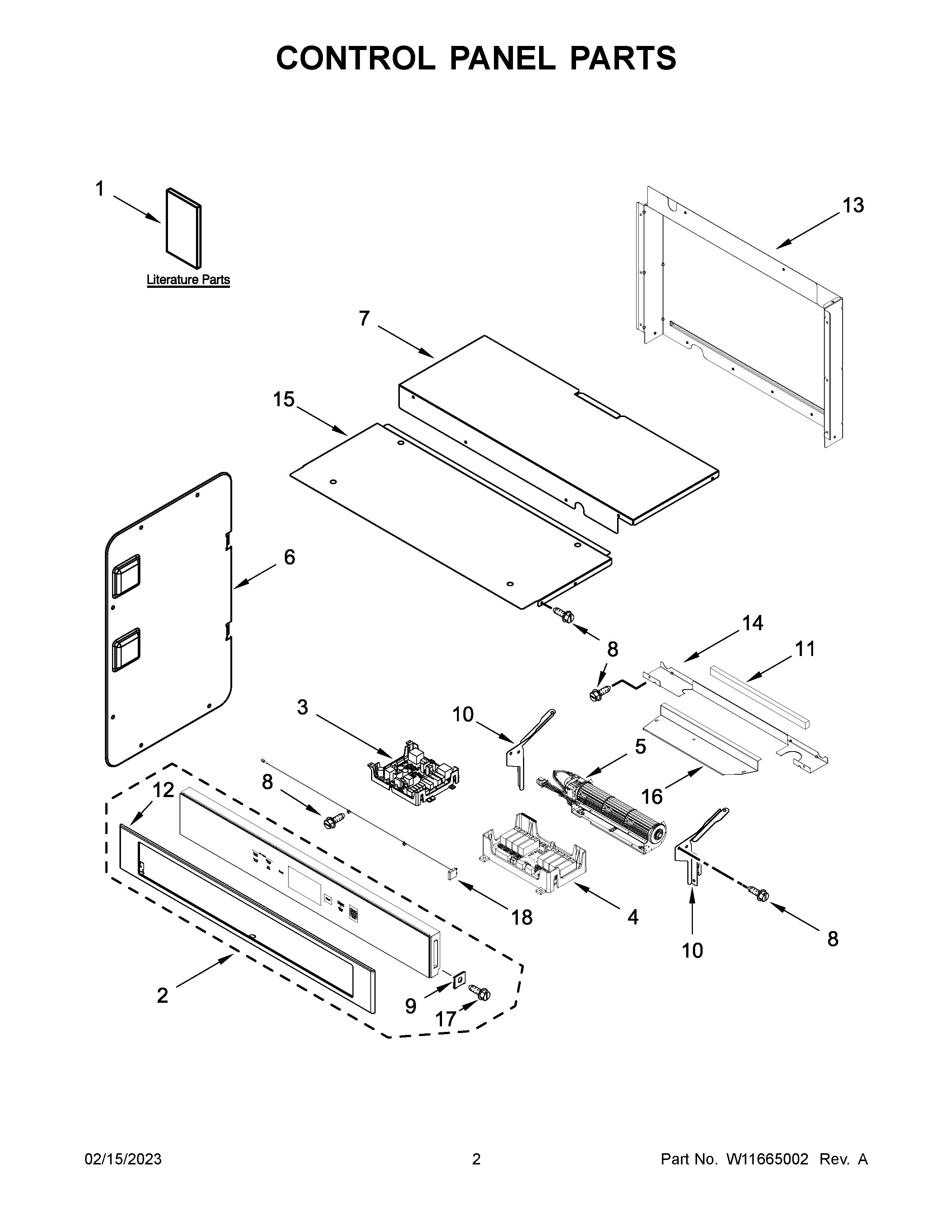

KOCE900HSS22 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	HARNESS, SIGNAL
NI	W11356991 Whirlpool Wire Harness
NI	W11602626 Whirlpool Oven Microwave Hardware
NI	16515 Whirlpool Clip
NI	W11727826 Whirlpool Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11659375 Whirlpool Wire Harness
NI	W11356990 Whirlpool Wire Harness
1B	TECH SHEET
1A	QUICK START GUIDE
1	OWNER'S MANUAL
2	W11598199 Whirlpool Console + Core
2A	W11598196 Whirlpool Console + Core
3	W11294388-includeCORE Whirlpool W11294388 Refrigerator Electronic Control Board
4	W11294389-includeCORE Whirlpool W11294389 Washer Electronic Control Board + Core
5	BLOWER
6	W10655467 Whirlpool Side Cover
7	W10588732 Whirlpool Cover Access
8	SCREW
9	WP4450118 Whirlpool Nut
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12A	W10776407 Whirlpool Control Panel
12	W10588740 Whirlpool Control Panel
13	COVER-REAR
14	DIVIDER, CHASSIS BACK
15	W10318158 Whirlpool Access Cover Assembly
16	W10681157 Whirlpool Fan Cover
17	SCREW (BLACK)
18	W11537624 Whirlpool Antenna Assembly
