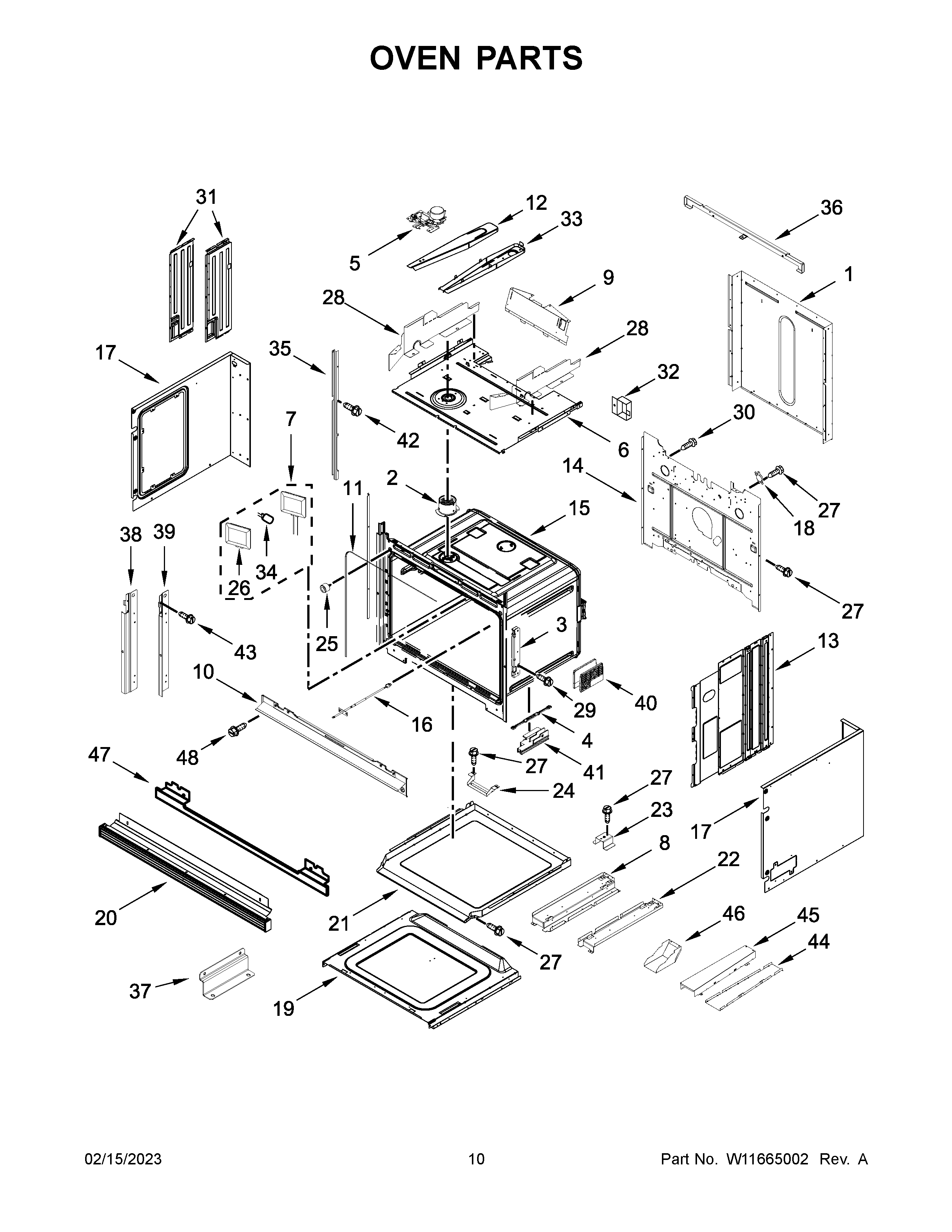

KOCE900HSS22 06 – OVEN PARTS

KOCE900HSS22 06 – OVEN PARTS

Written by

in

KOCE900HSS22 06 – OVEN PARTS

Products

PositionProduct
NIINSULATION, CAVITY
NICABINET (NOT A SERVICEABLE PART)
NIINSULATION, WRAP
1W11134657 Whirlpool Rear Cover
2W11240525 Whirlpool Vent Tube
3W11712405 Whirlpool Receiver Hinge
3AW11712406 Whirlpool Receiver Hinge
4W11598152 Whirlpool Spacer
5W11686858 Whirlpool Door Latch
6TOP, CHASSIS
7W11292252 Whirlpool Oven Light
8W10283020 Whirlpool Support
9W10904163 Whirlpool Vent Deflector
10VENT-OVEN
11W11676903 Whirlpool Gasket
12COVER, TOP BACK EXHAUST
13W11165274 Whirlpool Side Panel
16W11598120 Whirlpool Thermostat
17SIDE, COMBO CHASSIS (LEFT)
17ASIDE, COMBO CHASSIS (RIGHT)
18WP4449751 Whirlpool Range Oven Thermostat Fix
19COVR-ACESS
20W11369892 Whirlpool Vent
20AASSEMBLY, BOTTOM VENT (BLACK STAINLESS)
21COVR-ACESS
22W10283021 Whirlpool Support
23SUPPORT, AIR CHANNEL
24SPACER, CHASSIS BOTTOM DUCT
25W11598125 Whirlpool Bumper
26WPW10519866 Whirlpool Light
27SCREW
28DEFLECTOR, CHASSIS (LEFT)
28ADEFLECTOR, CHASSIS (RIGHT)
29WPW10254050 Whirlpool Screw
30WP693995 Whirlpool Screw
31W11598150 Whirlpool Side Cover
31AW11598151 Whirlpool Side Cover
328285593 Whirlpool Oven Wire Cover
33BASE, TOP BACK EXHAUST
34WPW10472384 Whirlpool Light Bulb
35TRIM
35ATRIM
36W10283022 Whirlpool Support
37W10283024 Whirlpool Mounting Bracket
38W11627410 Whirlpool Mounting Rail
39W11627411 Whirlpool Mounting Rail
40W11598170 Whirlpool Level Foot
41AW11598168 Whirlpool Leveling Foot
41W11598169 Whirlpool Foot Level Assembly
42W11602623 Whirlpool Screw
43SCREW
44BASE, LOWER BACK EXHAUST
45COVER, LOWER BACK EXHAUST
46DEFLECTOR, LOWER BACK EXHAUST
47W11598135 Whirlpool Trim
48WPY706189 Whirlpool Stove Screw
