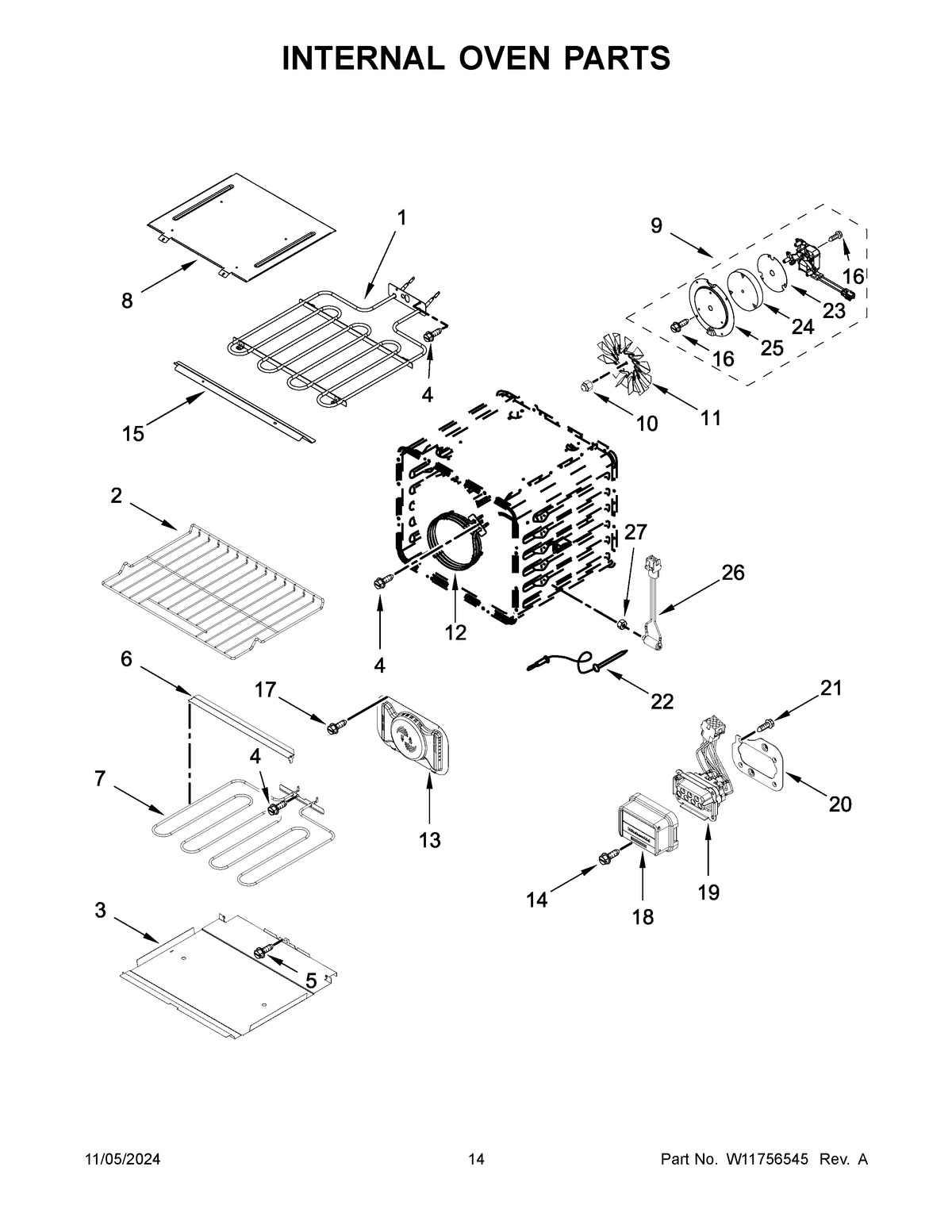

KOCE900HSS24 08 – INTERNAL OVEN PARTS

Products

Position	Product
1	W11598122 Whirlpool Broil Element
2	WPW10554526 Whirlpool Oven Rack
3	W10318198 Whirlpool Bake Tray
4	SCREW
5	SCREW
6	W10282957 Whirlpool Bracket Support
7	BAKE ELEMENT
8	TOP-CABNT
9	CONVECT MOTOR ASSEMBLY
10	W11548755 Whirlpool Nut
11	W11548753 Whirlpool Convection Fan
12	W11678579 Whirlpool Element
13	W11234763 Whirlpool Convection Baffle
14	SCREW
15	SHIELD-HT
16	W10850807 Whirlpool Screw
17	SCREW
18	COVER, CONNECTOR
19	W11291121 Whirlpool Male Plug
20	PLATE, CAVITY BACKER
21	WPY706189 Whirlpool Stove Screw
22	WP9755542 Whirlpool Oven Meat Probe
23	PLATE, CONVECT MOTOR
24	INSULATION, CONVECT MOTOR
25	COVER, CONVECT PLATE
26	W11252826 Whirlpool Probe Jack
27	W11231343 Whirlpool Lock Nut
