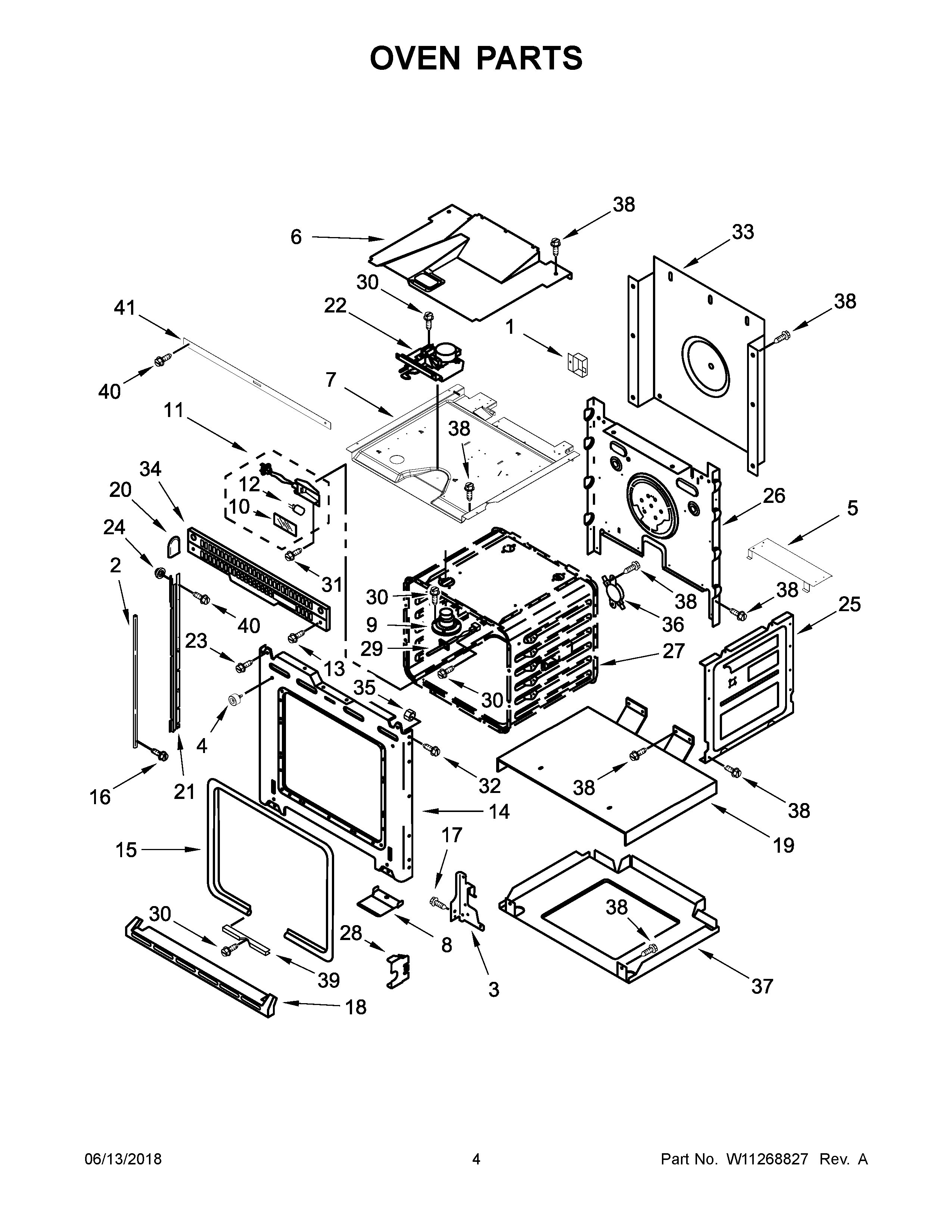

KODC304EBL01 03 – OVEN PARTS

Products

PositionProduct
NIWP4449314 Whirlpool Insulation
NICABINET (NOT A SERVICEABLE PART)
NIINSULATION, SIDE RAIL
NIWP4450363 Whirlpool Insulation
18285593 Whirlpool Oven Wire Cover
2DWPW10144986 Whirlpool Trim Assembly
2BW10756497 Whirlpool Trim
2CW10756498 Whirlpool Trim Assembly
2W10756501 Whirlpool Trim
2AW10756502 Whirlpool Trim
2EWPW10144985 Whirlpool Trim
3WP4455605 Whirlpool Left Hand Hinge
3AWP4455606 Whirlpool Right Hand Hinge
4W10105790 Whirlpool Bumper
5W10804302 Whirlpool Support
68302347 Whirlpool Vent Panel
7W10784377 Whirlpool Top
84455807 Whirlpool Oven Vent Deflector
9W10861715 Whirlpool Vent Tube
10W10169756 Whirlpool Light Lens
11W11233684 Whirlpool Oven Light Assembly
12BULB-LIGHT
13SCREW
149760754 Whirlpool Oven Front Frame
15WP4455380 Whirlpool Door Gasket
16WP8281236 Whirlpool Screw
17WP4449743 Whirlpool Screw
18AW10339573 Whirlpool Oven Vent
18BW11193481 Whirlpool Oven Vent
18W10339572 Whirlpool Oven Vent
194451476 Whirlpool Support
20Cap, Spacer
21814374 Whirlpool Oven Rail Mount
21A814373 Whirlpool Oven Rail Mount
22WPW10195934 Whirlpool Door Latch
23Screw
24WP4448444 Whirlpool Grommet
25W10782197 Whirlpool Side Panel
26W10784207 Whirlpool Rear Cover
284452152 Whirlpool Oven Mounting Bracket
29W10859573 Whirlpool Range Oven Temperature Sensor
30WP4449154 Whirlpool Screw
31W10850807 Whirlpool Screw
32WP4450038 Whirlpool Screw
33WP4451747 Whirlpool Rear Cover
34W10358914 Whirlpool Oven Vent
35WP4450118 Whirlpool Nut
36W11034459 Whirlpool Thermostat
36AW11165152 Whirlpool Thermostat
374450525 Whirlpool Oven Bottom Assembly
38SCREW
39WP4448933 Whirlpool Retainer
40SCREW
41RETAINER, SIDE RAIL INSULATION
