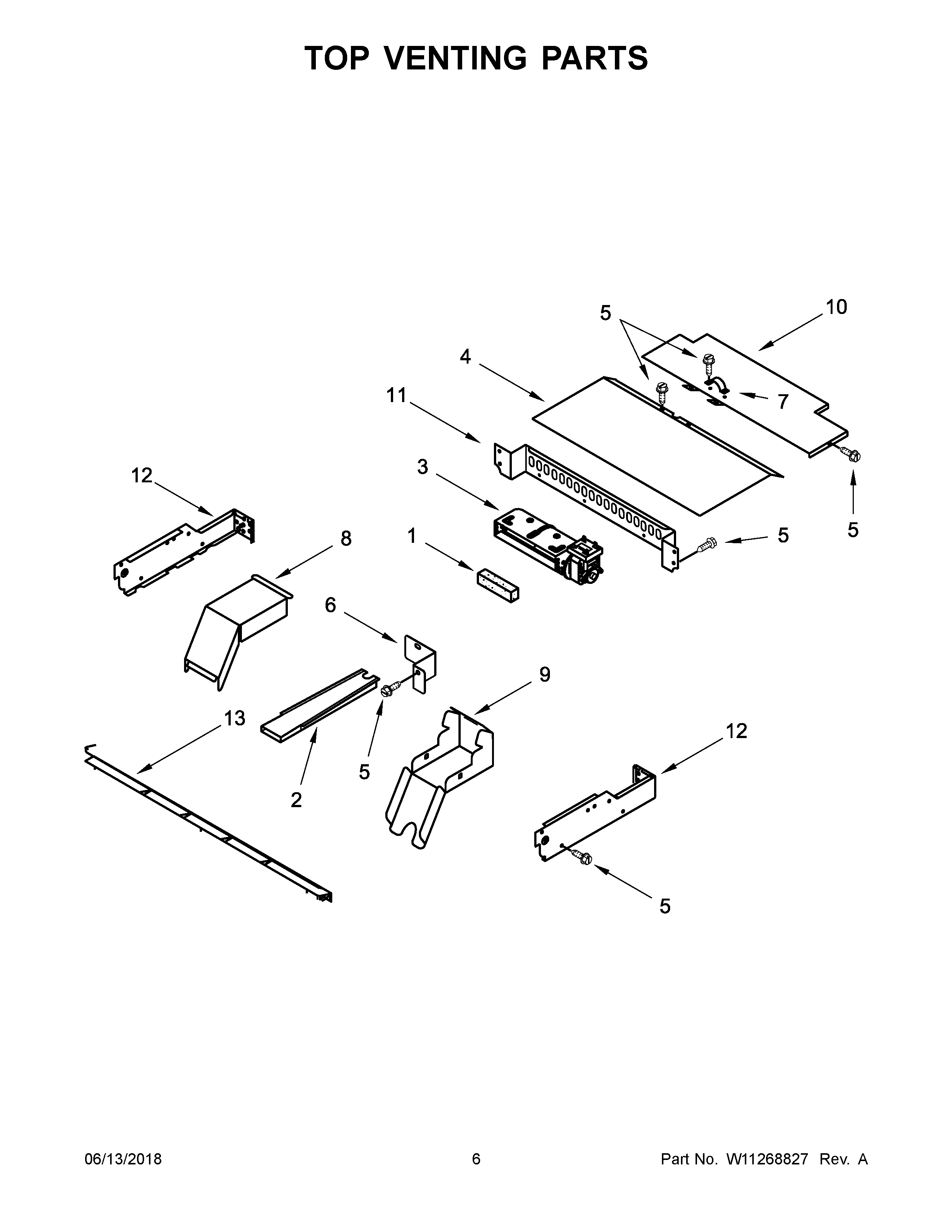

KODC304EBL01 04 – TOP VENTING PARTS

KODC304EBL01 04 – TOP VENTING PARTS

Written by

in

KODC304EBL01 04 – TOP VENTING PARTS

Products

PositionProduct
1W10491987 Whirlpool Foam Seal
24451759 Whirlpool Oven Exhaust Vent
3WPW10016550 Whirlpool Blower Cooling Fan
3AWPW10176670 Whirlpool Blower
4Cover, Top Front
5SCREW
68302390 Whirlpool Support Bracket
74448664 Whirlpool Oven Mounting Bracket
84455178 Whirlpool Oven Top Elbow
94455177 Whirlpool Oven Bottom Elbow
104450549 Whirlpool Oven Top Cover
11Back, Control
12AW10755214 Whirlpool Side Complete
12W10790240 Whirlpool Side Assembly Complete
134448547 Whirlpool Oven Vent Control
