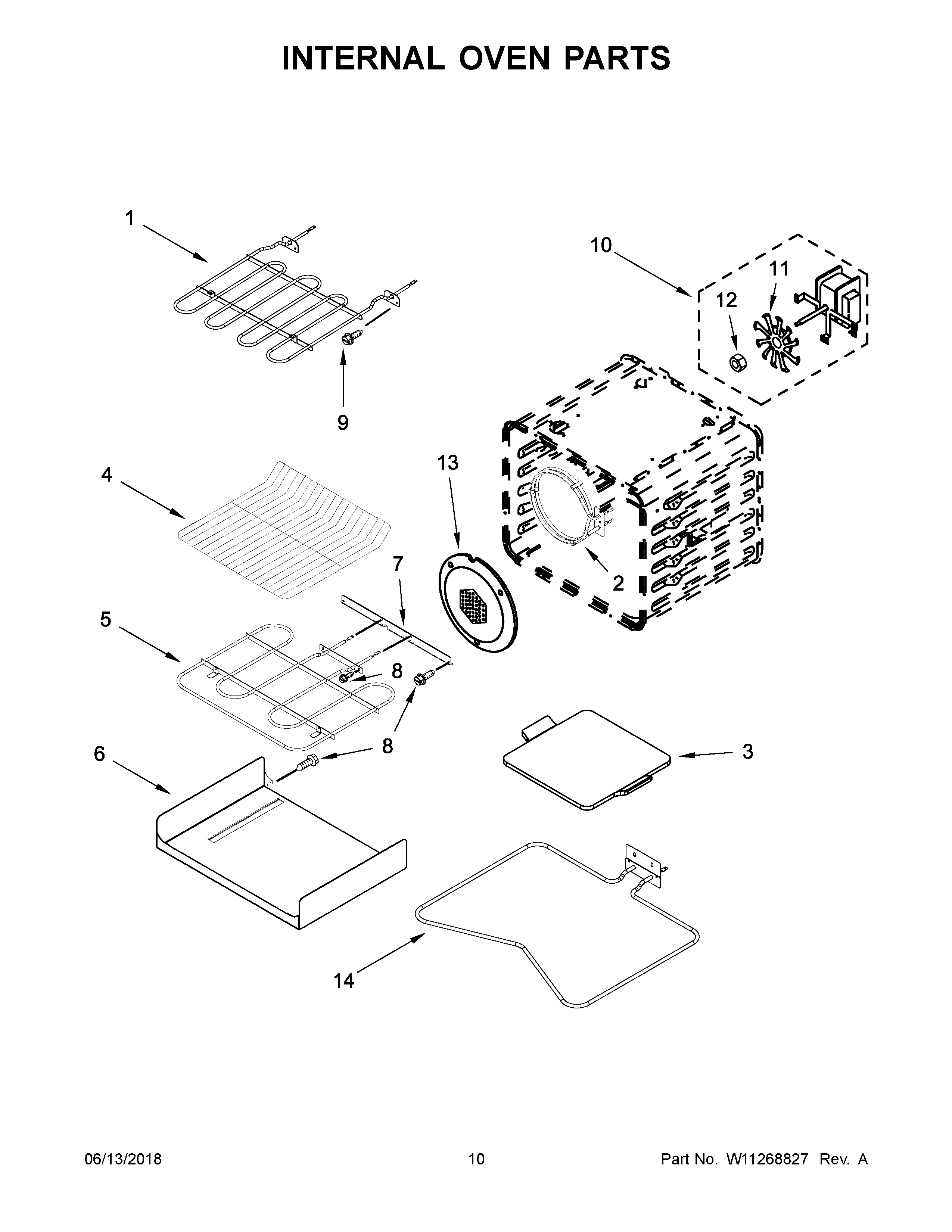

KODC304EBL01 06 – INTERNAL OVEN PARTS

KODC304EBL01 06 – INTERNAL OVEN PARTS

Written by

in

KODC304EBL01 06 – INTERNAL OVEN PARTS

Products

PositionProduct
1W10685631 Whirlpool Broil Element
2WP9760769 Whirlpool Element Assembly
3W10696057 Whirlpool Bake Stone
44448716 Whirlpool Oven Rack 24"
5ELMNT-BAKE
64455035 Whirlpool Bake Tray
74450039 Whirlpool Oven Access Cover
8SCREW
9WP4449154 Whirlpool Screw
10W10860984 Whirlpool Fan Motor
11W10819914 Whirlpool Convection Fan
12W10794042 Whirlpool Nut
13WPW10160821 Whirlpool Fan Cover
14W11628765 Whirlpool Bake Element
