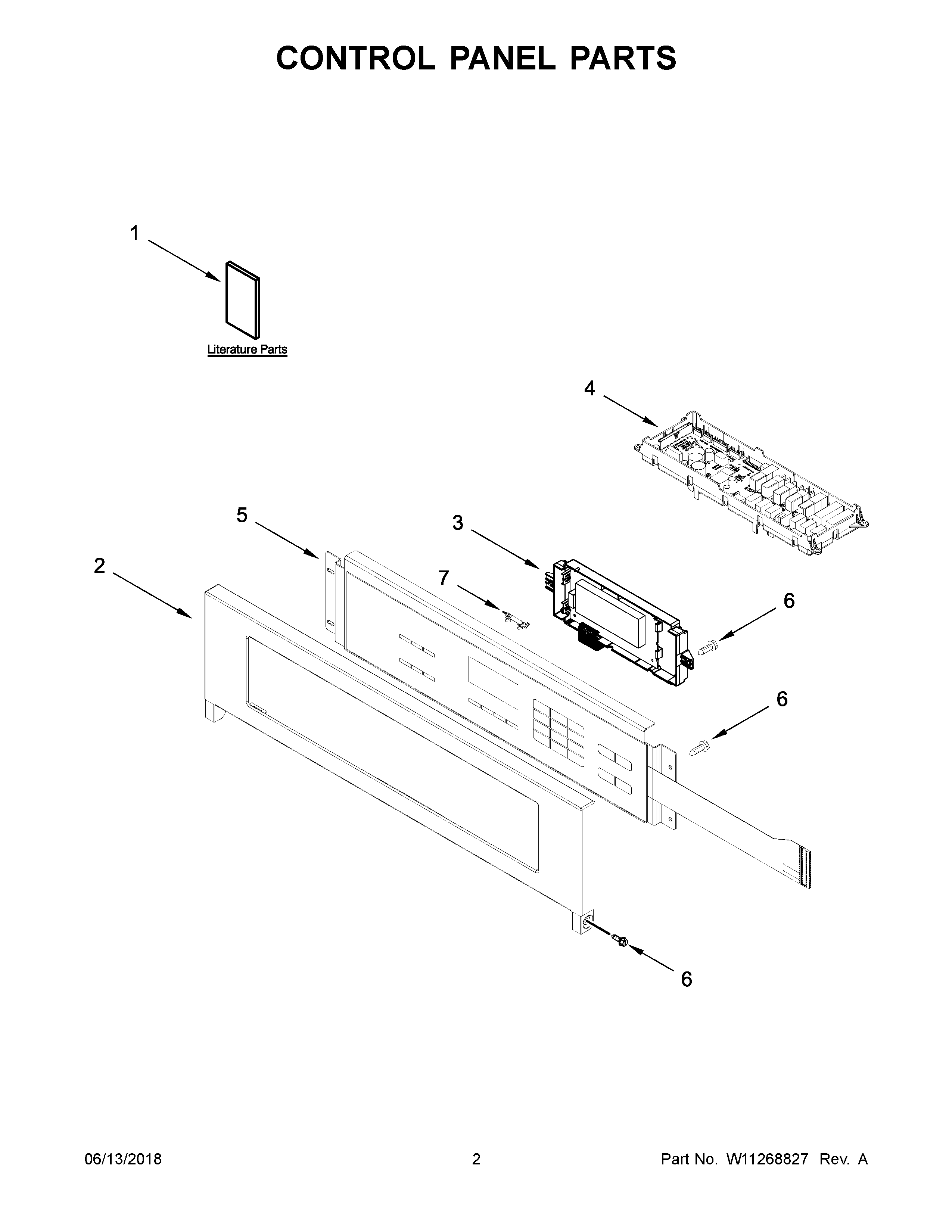

KODC304ESS01 02 – CONTROL PANEL PARTS

KODC304ESS01 02 – CONTROL PANEL PARTS

Written by

in

KODC304ESS01 02 – CONTROL PANEL PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11157777 Whirlpool Wire Harness
NIW11157775 Whirlpool Wire Harness
NI4451761 Whirlpool Oven Support Bracket
NI4455191 Whirlpool Oven Mounting Plate
NI8528351 Whirlpool Clip
NIWPW10339879 Whirlpool Wire Tie
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NIW11177680 Whirlpool Wire Harness
1CDIAGRAM, WIRING
1GUIDE, USE & CARE
1AINSTRUCTIONS, INSTALLATION
1BSHEET, TECH
2W10702189 Whirlpool Control Panel
2BW10704699 Whirlpool Control Panel
2AW10704698 Whirlpool Control Panel
3WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
4WPW10721210-includeCORE Whirlpool WPW10721210 Washer Electronic Control Board + Core
5W10694995 Whirlpool Membrane Switch
5AW10694996 Whirlpool Membrane Switch
6SCREW
7FUSE-THRML WALL OVEN
