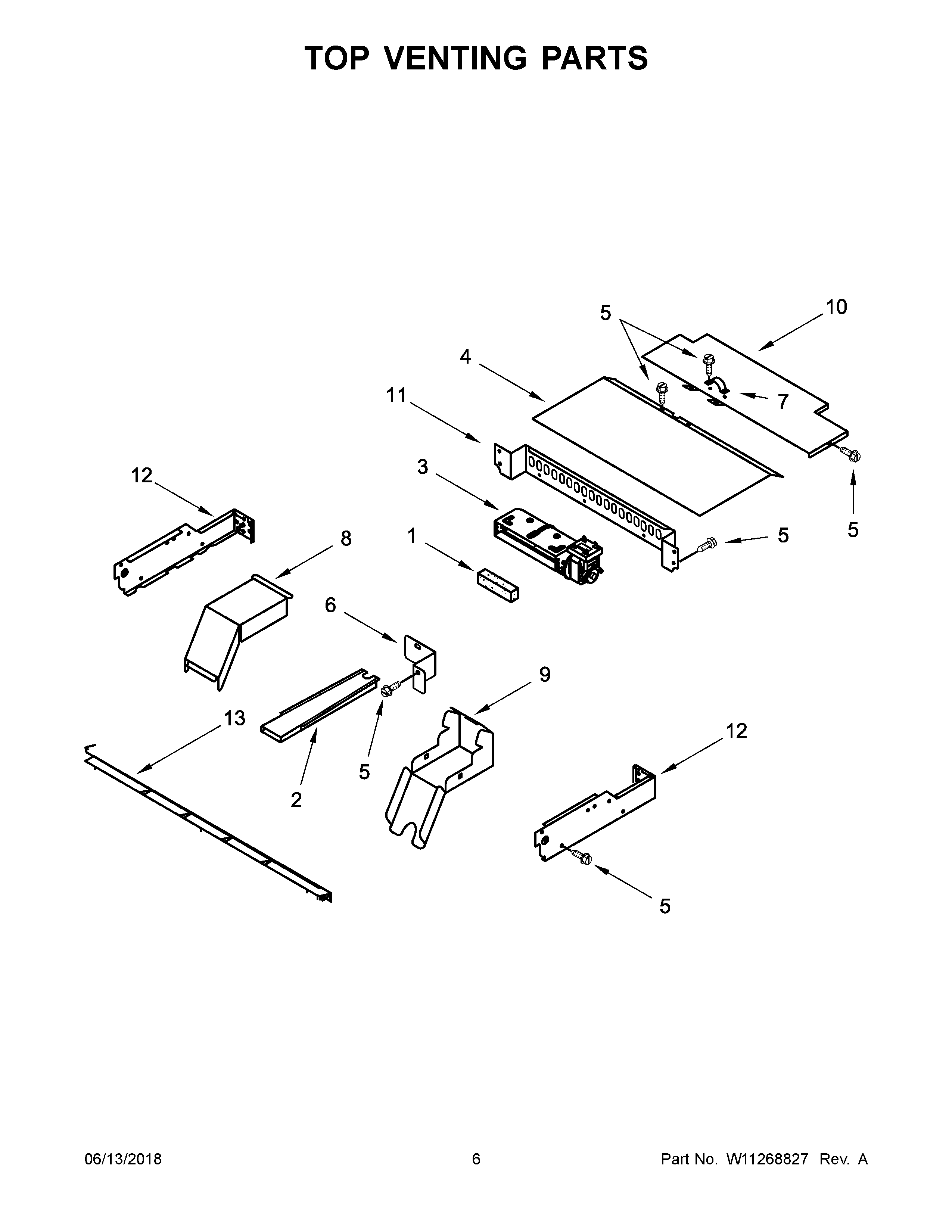

KODC304ESS01 04 – TOP VENTING PARTS

Products

Position	Product
1	W10491987 Whirlpool Foam Seal
2	4451759 Whirlpool Oven Exhaust Vent
3	WPW10016550 Whirlpool Blower Cooling Fan
3A	WPW10176670 Whirlpool Blower
4	Cover, Top Front
5	SCREW
6	8302390 Whirlpool Support Bracket
7	4448664 Whirlpool Oven Mounting Bracket
8	4455178 Whirlpool Oven Top Elbow
9	4455177 Whirlpool Oven Bottom Elbow
10	4450549 Whirlpool Oven Top Cover
11	Back, Control
12A	W10755214 Whirlpool Side Complete
12	W10790240 Whirlpool Side Assembly Complete
13	4448547 Whirlpool Oven Vent Control
