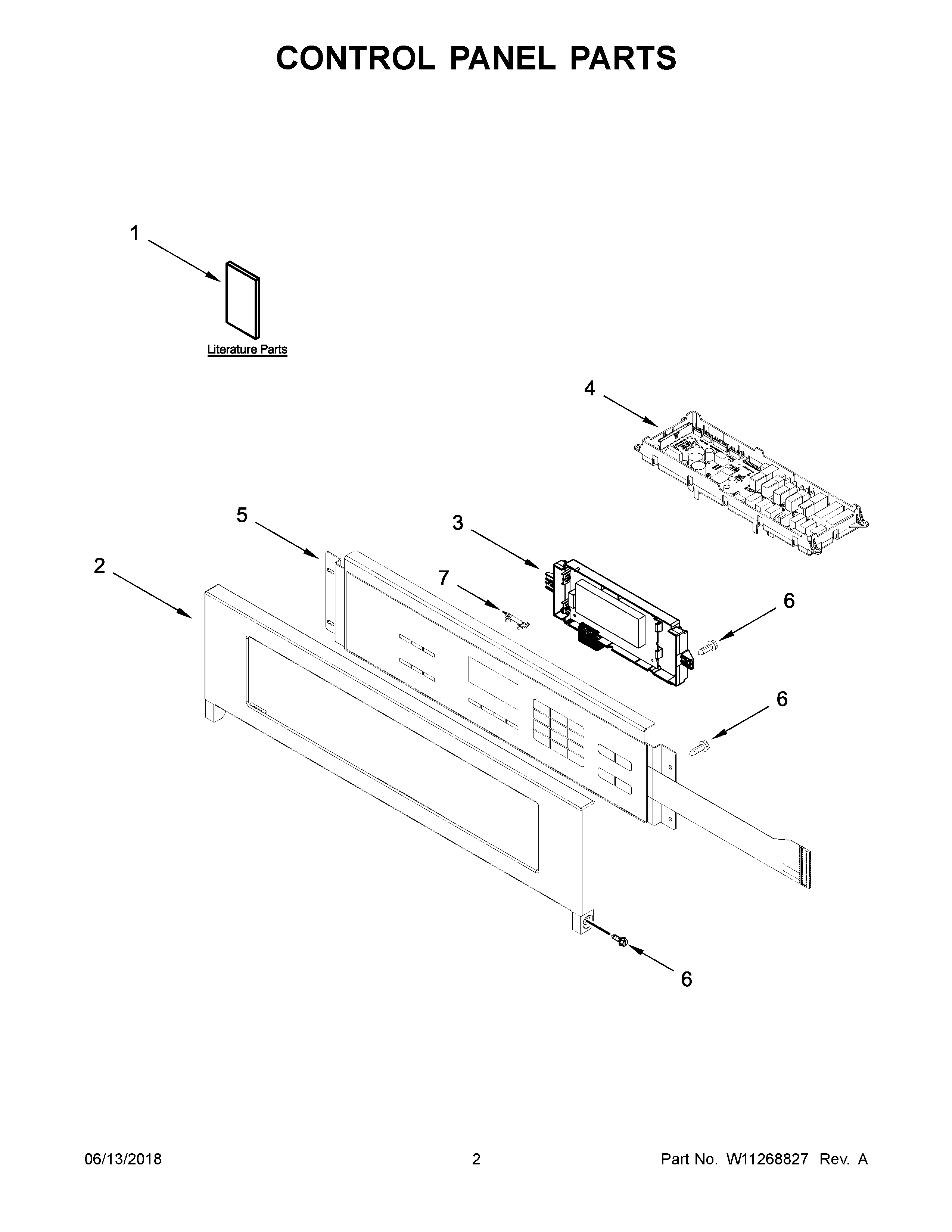

KODC304EWH01 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11157777 Whirlpool Wire Harness
NI	W11157775 Whirlpool Wire Harness
NI	4451761 Whirlpool Oven Support Bracket
NI	4455191 Whirlpool Oven Mounting Plate
NI	8528351 Whirlpool Clip
NI	WPW10339879 Whirlpool Wire Tie
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	W11177680 Whirlpool Wire Harness
1C	DIAGRAM, WIRING
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
2	W10702189 Whirlpool Control Panel
2B	W10704699 Whirlpool Control Panel
2A	W10704698 Whirlpool Control Panel
3	WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
4	WPW10721210-includeCORE Whirlpool WPW10721210 Washer Electronic Control Board + Core
5	W10694995 Whirlpool Membrane Switch
5A	W10694996 Whirlpool Membrane Switch
6	SCREW
7	FUSE-THRML WALL OVEN
