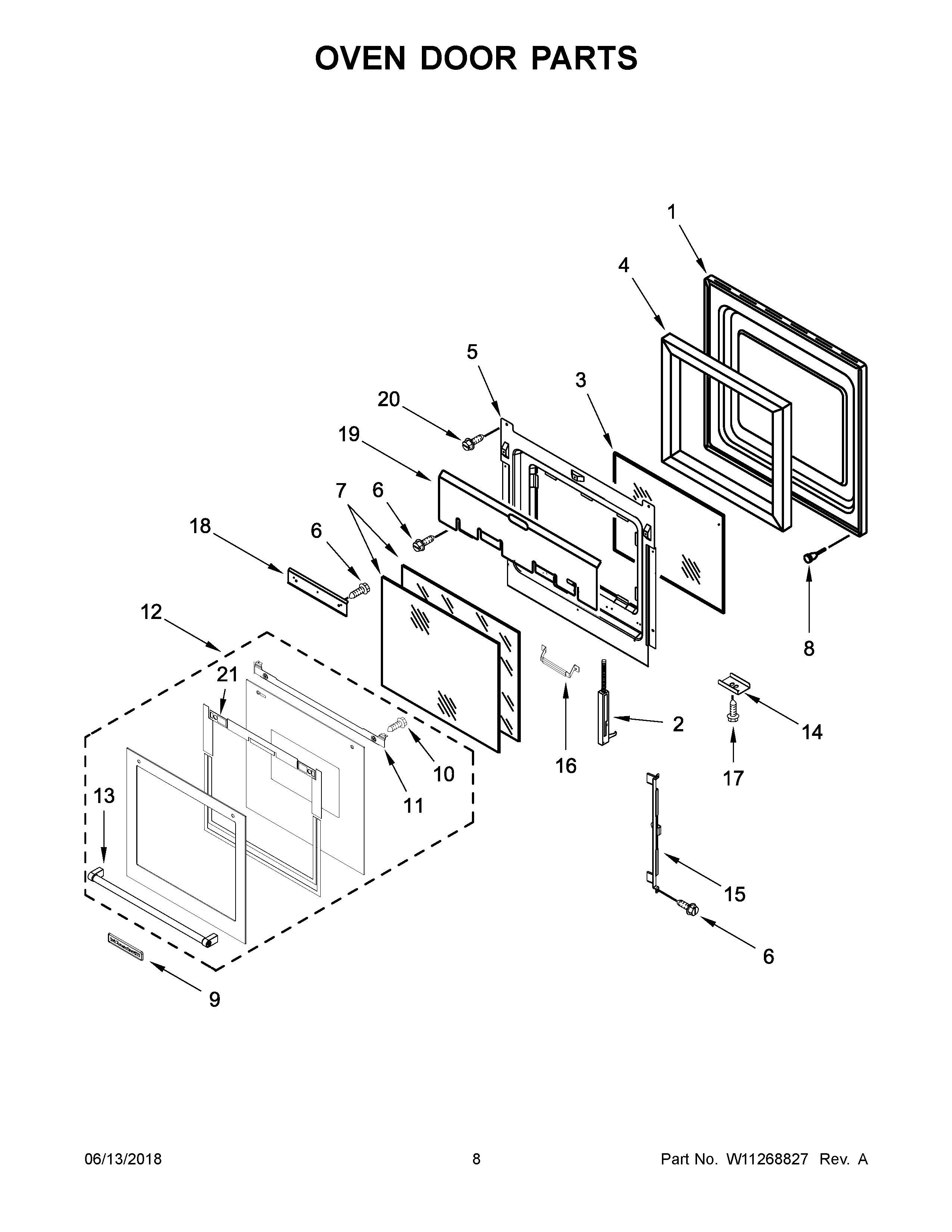

KODC304EWH01 05 – OVEN DOOR PARTS

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
2	WP9760572 Whirlpool Door Hinge
2A	WP9760571 Whirlpool Door Hinge
3	WP4449247 Whirlpool Inner Door Glass
4	W11688413 Whirlpool Insulation
5	4457130 Whirlpool Oven Retainer
6	SCREW
7	WP9759223 Whirlpool Door Glass
8	4448520 Whirlpool Oven Bumper
9	W10839793 Whirlpool Refrigerator Nameplate
10	W10831019 Whirlpool Stove Door Screw
11	BRACKET, HANDLE
12B	W10801071 Whirlpool Glass Door Assembly
12	W10801069 Whirlpool Door Glass
12A	W10801070 Whirlpool Door Glass
13	W10737395 Whirlpool Door Handle
14B	W10789032 Whirlpool Clip
14A	CLIP, RETAINER (WHITE)
14	CLIP, RETAINER (BLACK)
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
17	WP3400832 Whirlpool Screw
18	4457112 Whirlpool Oven Heat Shield
19	4457101 Whirlpool Oven Shield
20	WPW10292297 Whirlpool Screw
21	W10650497 Whirlpool Spacer
