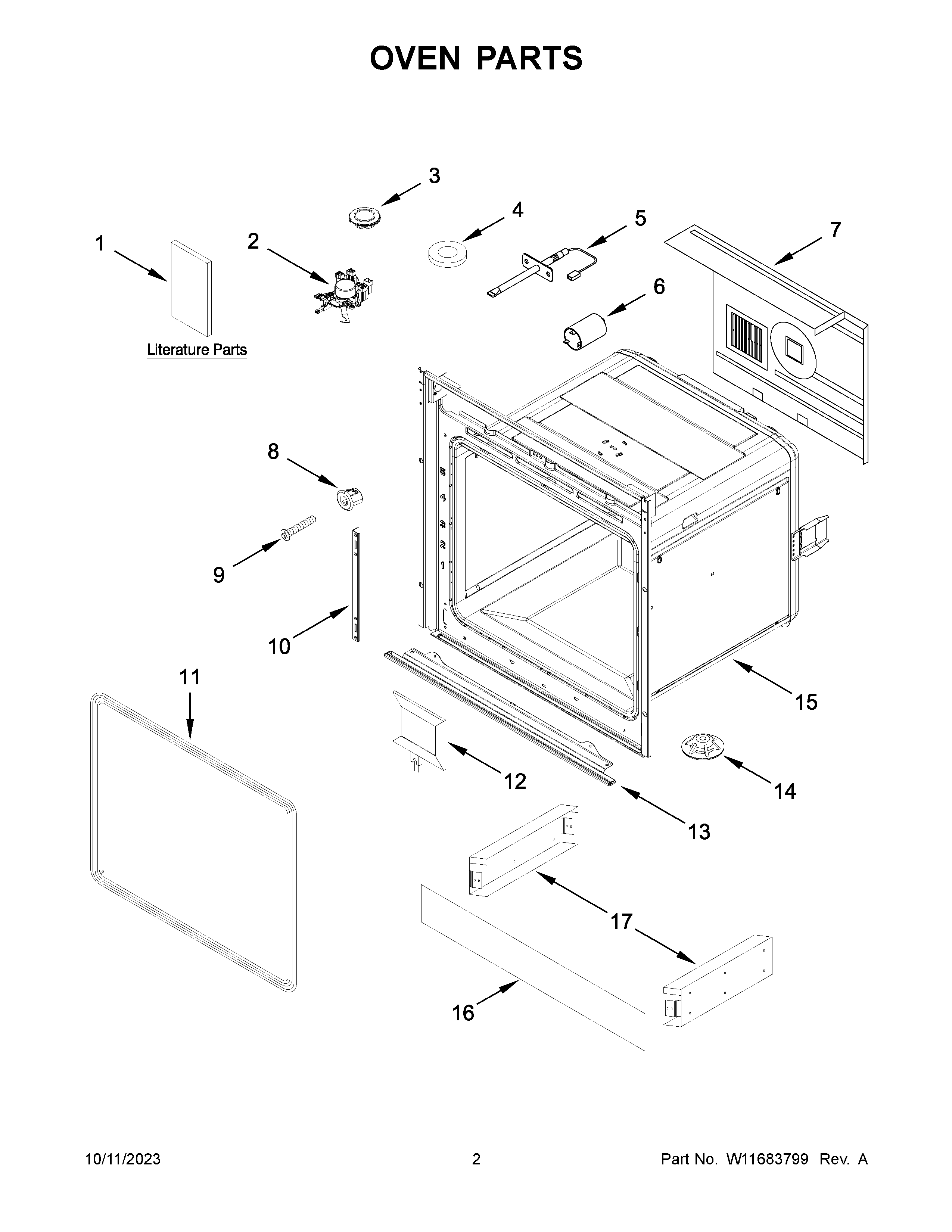

KODC504PPS00 02 – OVEN PARTS
Written by
in
KODC504PPS00 02 – OVEN PARTS
Products
Position
Product
NI
FOLLOWING PARTS NOT ILLUSTRATED
NI
W11594182 Whirlpool Wire Harness
NI
SCREW KIT, INSERT PANEL
NI
KIT, POWER CORD (NO PLUG)
1A
MANUAL, OWNER'S
1B
TECH SHEET
1
INSTRUCTIONS, INSTALLATION
2
W11347847 Whirlpool Door Latch
3
CAP
4
WASHER, TEFLON
5
PROBE, OVEN TEMPERATURE
6
W10549523 Whirlpool Microwave Filter
7
PANEL, REAR OVEN
8
BUMPER
9
W10519818 Whirlpool Screw
10
W11581007 Whirlpool Hinge Bracket
11
W10518387 Whirlpool Oven Door Gasket
12
W11348087 Whirlpool Light Bulb
13
W10517979 Whirlpool Trim Assembly
14
FOOT, LEVEL OVEN
15
LINER, OVEN (NOT SERVICEABLE)
16
W11683044 Whirlpool Trim Panel
17
W11594960 Whirlpool Bracket
←
