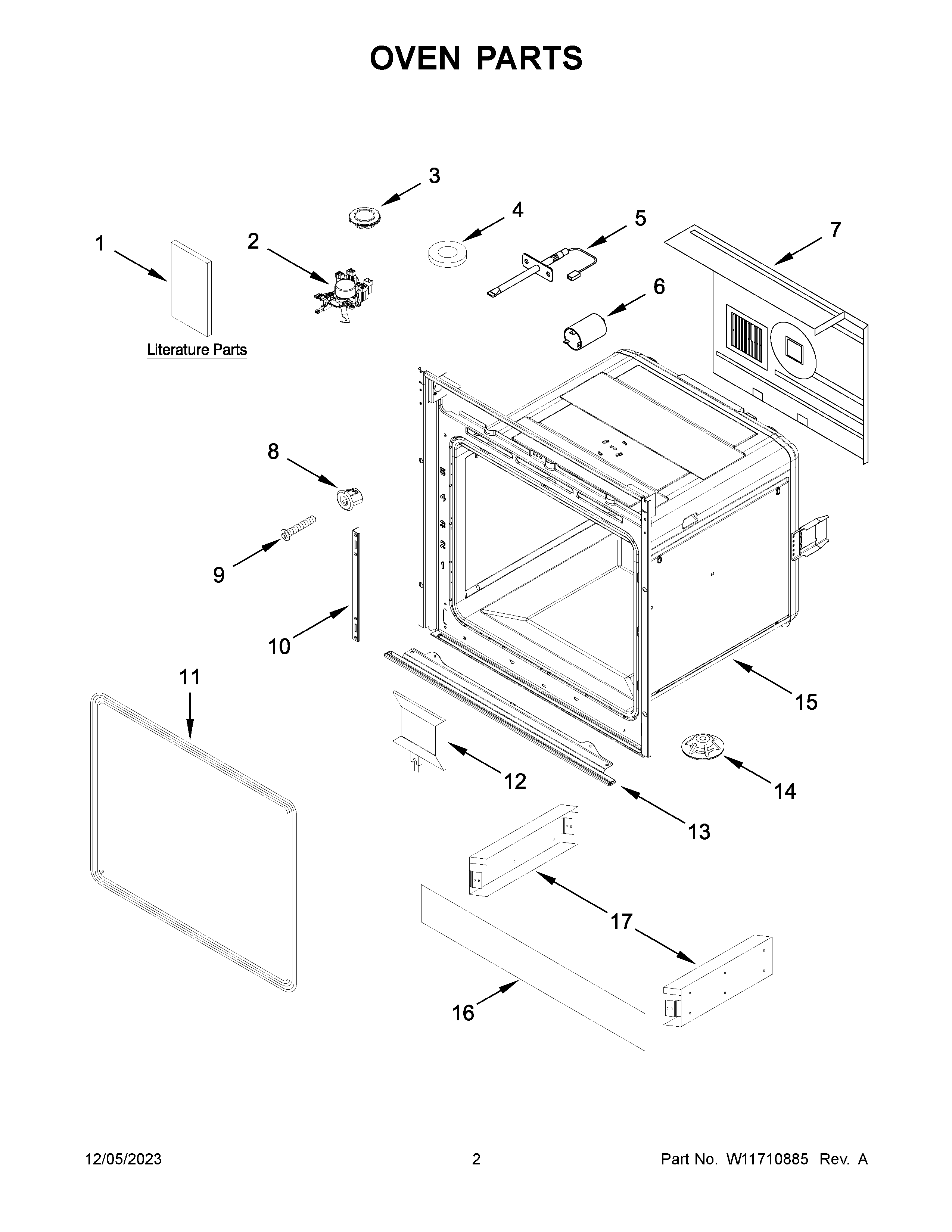

KODC504PPS01 02 – OVEN PARTS

Products

PositionProduct
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW11594182 Whirlpool Wire Harness
NISCREW KIT, INSERT PANEL
NIKIT, POWER CORD (NO PLUG)
1AMANUAL, OWNER'S
1BTECH SHEET
1INSTRUCTIONS, INSTALLATION
2W11347847 Whirlpool Door Latch
3CAP
4WASHER, TEFLON
5PROBE, OVEN TEMPERATURE
6W10549523 Whirlpool Microwave Filter
7PANEL, REAR OVEN
8BUMPER
9W10519818 Whirlpool Screw
10W11581007 Whirlpool Hinge Bracket
11W10518387 Whirlpool Oven Door Gasket
12W11348087 Whirlpool Light Bulb
13W10517979 Whirlpool Trim Assembly
14FOOT, LEVEL OVEN
15LINER, OVEN (NOT SERVICEABLE)
16W11683044 Whirlpool Trim Panel
17W11594960 Whirlpool Bracket
