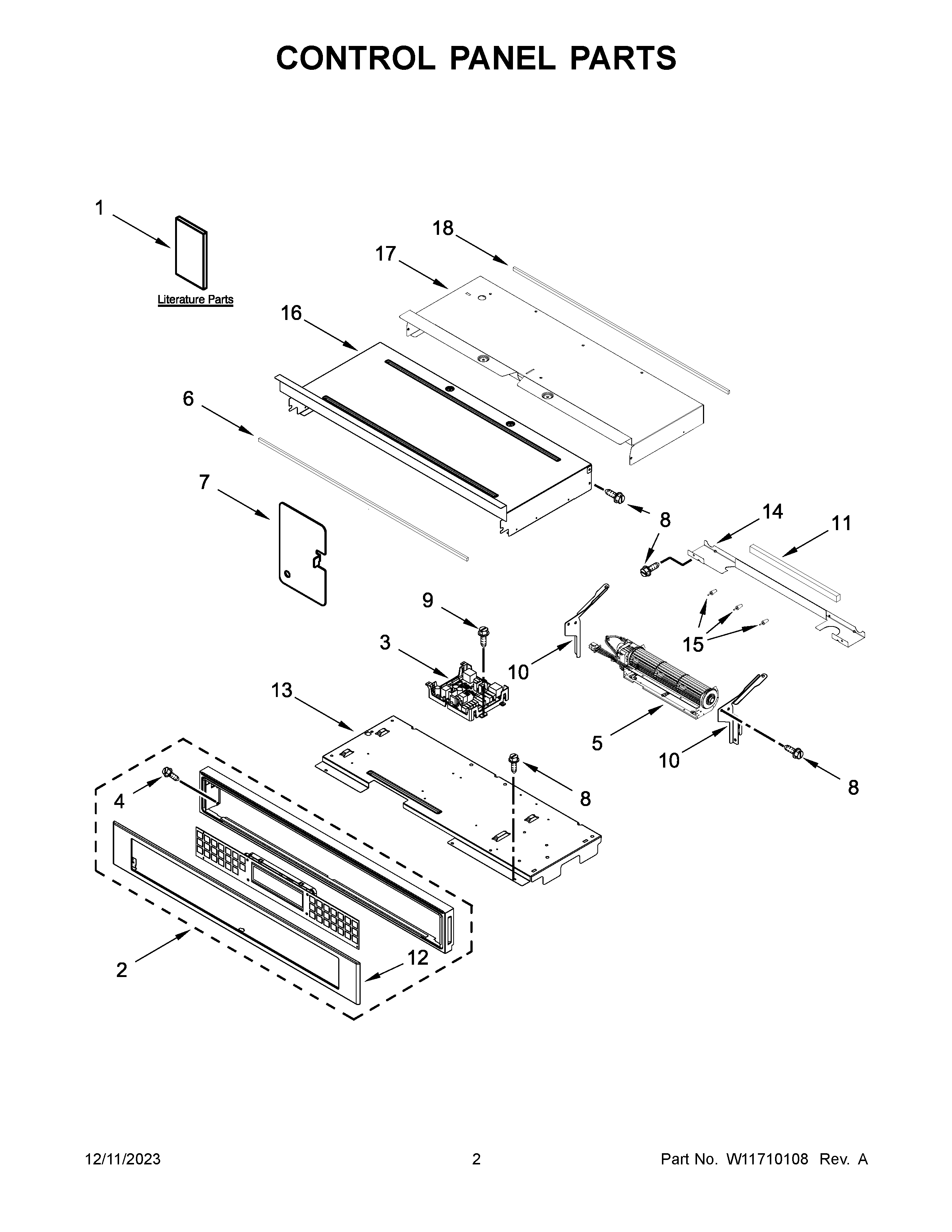

KODE300ESS21 02 – CONTROL PANEL PARTS

KODE300ESS21 02 – CONTROL PANEL PARTS

Written by

in

KODE300ESS21 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIHARNESS, SIGNAL
NI4450800 Whirlpool Oven Screw
NIW10655464 Whirlpool Bracket
NIW11699910 Whirlpool Wire Harness
NIW11727826 Whirlpool Wire Harness
NIFOLLOWING PARTS NOT ILLUSTRATED
NISTRAP, LEAD GROUND
NI16515 Whirlpool Clip
NIW11602626 Whirlpool Oven Microwave Hardware
NIHARNESS, MAIN
NI4448664 Whirlpool Oven Mounting Bracket
1BTECH SHEET
1AQUICK START GUIDE
1OWNER'S MANUAL
2PANL-CNTRL
3W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
3AW11598200-includeCORE Whirlpool W11598200 Washer Electronic Control Board + Core
4SCREW (BLACK)
5BLOWER
6GASKET, RUBBER
7COVER, WIFI
8SCREW
9SCREW
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12W10588740 Whirlpool Control Panel
13TRAY, ELECTRONIC
14DIVIDER, CHASSIS BACK
15W10351295 Whirlpool Bumper Assembly
16COVER, 30 IN CHASSIS TOP FRONT
17COVER, 30 IN CHASSIS TOP BACK
18W10728475 Whirlpool Foam Seal
