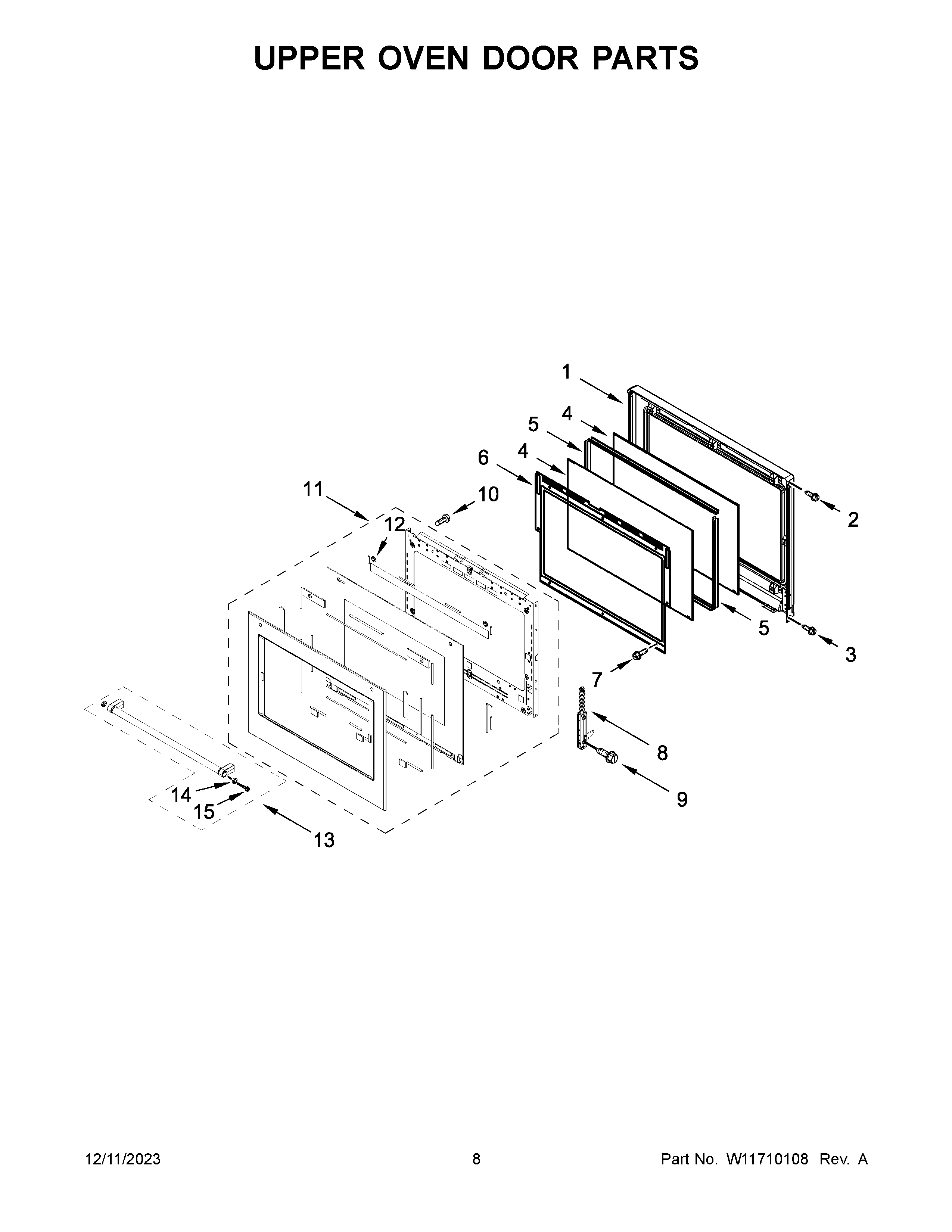

KODE300ESS21 05 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	W11617223 Whirlpool Glass Frame
2	SCREW
3	W11617225 Whirlpool Oven Screw
4	WPW10618107 Whirlpool Door Glass Assembly
5	SPACER
6	W11598182 Whirlpool Retainer Clip
7	SCREW
8	W11700313 Whirlpool Door Hinge
8A	W11699927 Whirlpool Door Hinge
9	WP3196183 Whirlpool Screw
10	W11602624 Whirlpool Oven Screw
11	W11600222 Whirlpool Door Glass
12	W11676355 Whirlpool Washer
13	W11518518 Whirlpool Door Handle
14	W10846207 Whirlpool KA Handle MEDALLIONS-RED
15	W10920281 Whirlpool Screw
