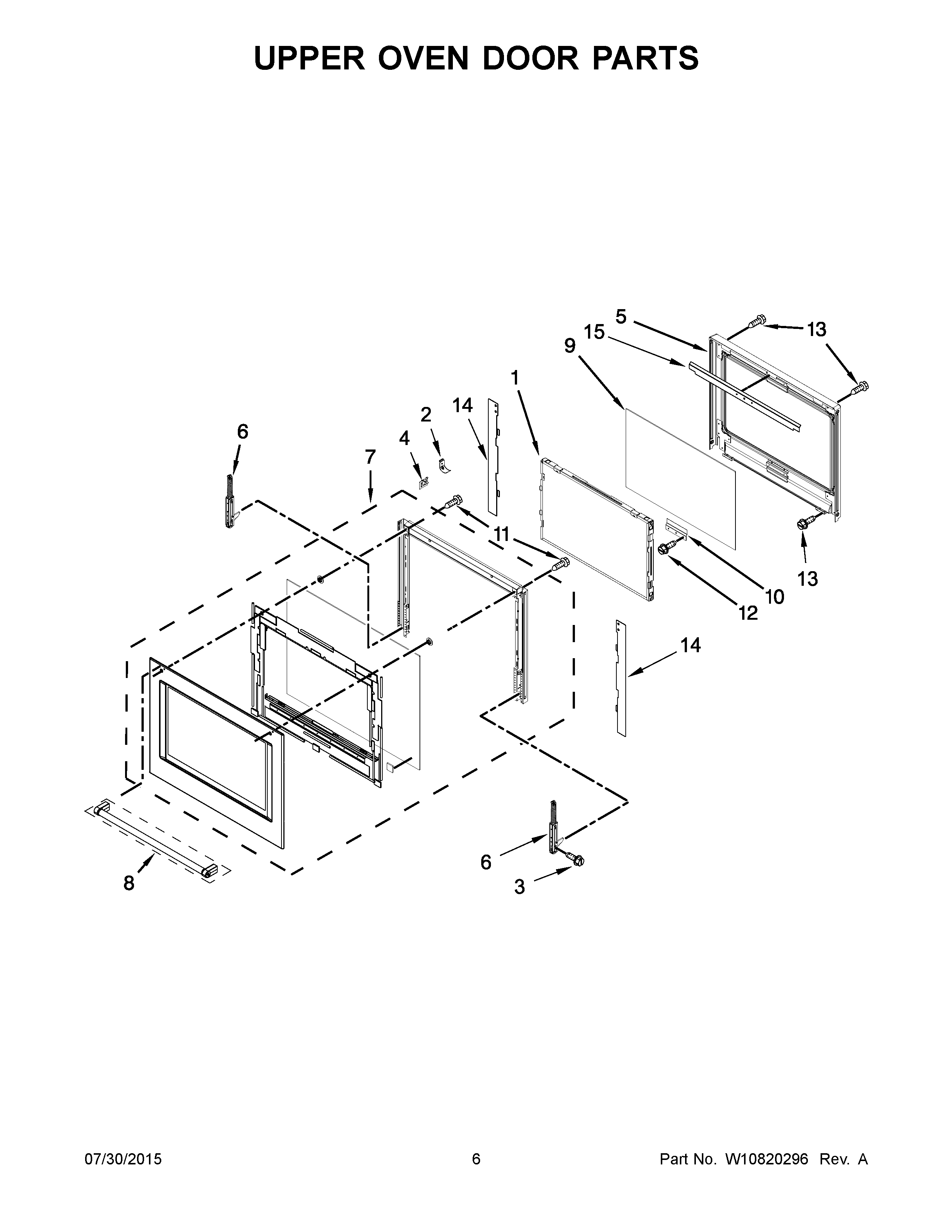

KODE307ESS01 04 – UPPER OVEN DOOR PARTS

KODE307ESS01 04 – UPPER OVEN DOOR PARTS

Written by

in

KODE307ESS01 04 – UPPER OVEN DOOR PARTS

Products

PositionProduct
1WPW10347597 Whirlpool Door Glass
2W10812024 Whirlpool Glass Bracket
3WP3196183 Whirlpool Screw
4W11025615 Whirlpool Glass Bracket
5WPW10320793 Whirlpool Glass Frame
6W11642291 Whirlpool Door Hinge
7W10774423 Whirlpool Door Glass
8W11525064 Whirlpool Door Handle
9WPW10284902 Whirlpool Door Glass
10W10853628 Whirlpool Oven Range Glass Bracket
11W10920281 Whirlpool Screw
12SCREW
13SCREW (BLACK)
14W10687815 Whirlpool Glass Bracket
14AW10687814 Whirlpool Glass Bracket
15W10669415 Whirlpool Glass Bracket
