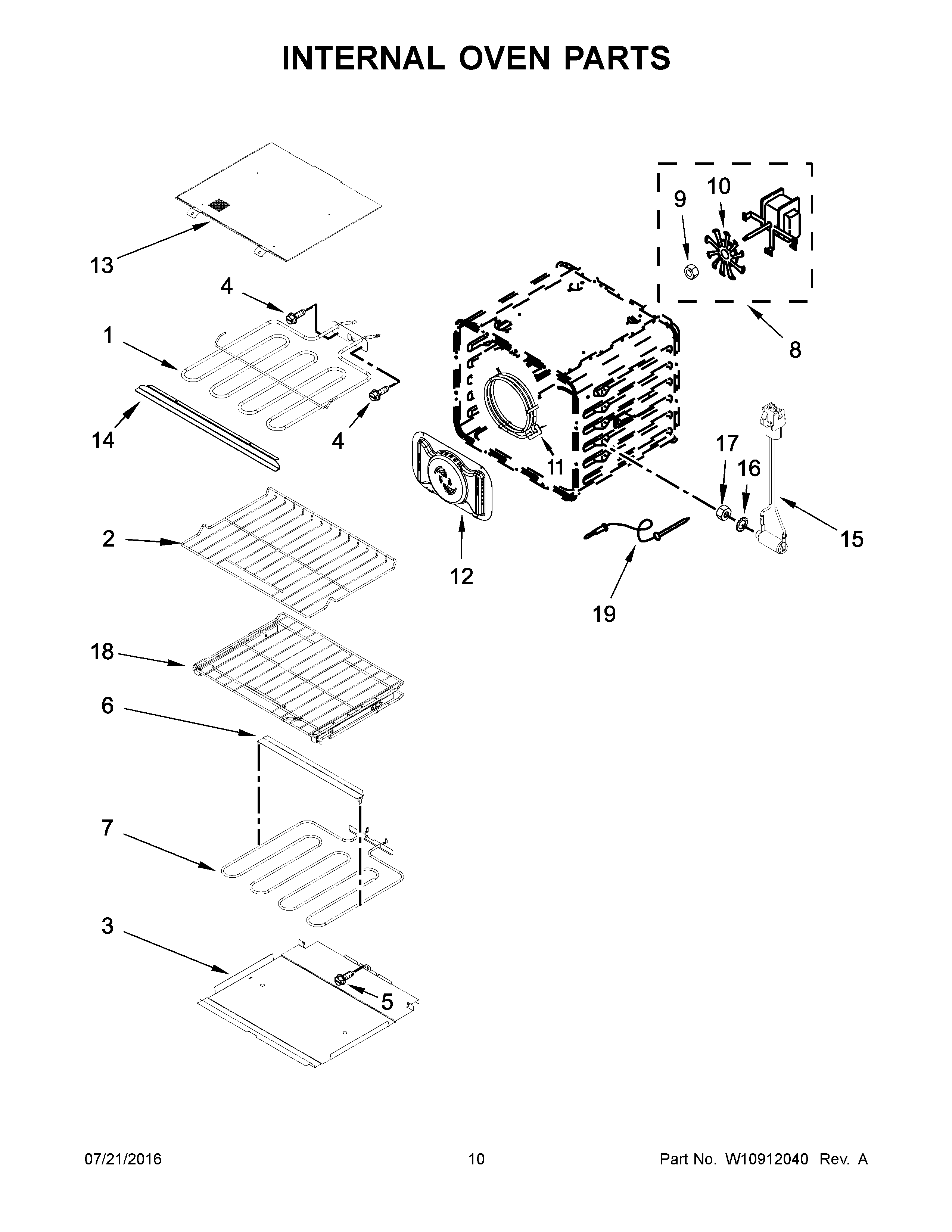

KODE500EBL02 06 – INTERNAL OVEN PARTS

Products

Position	Product
1	W10804429 Whirlpool Broil Element
2	WPW10554526 Whirlpool Oven Rack
3	W10318198 Whirlpool Bake Tray
4	SCREW
5	SCREW
6	W10282957 Whirlpool Bracket Support
7	BAKE ELEMENT
8	W10860984 Whirlpool Fan Motor
9	W10794042 Whirlpool Nut
10	W10819914 Whirlpool Convection Fan
11	W11678579 Whirlpool Element
12A	W10725944 Whirlpool Convection Baffle
12	W11234761 Whirlpool Baffle Convector
13	W11290999 Whirlpool Shield Heat
14	W10588738 Whirlpool Heat Shield
15	W11220388 Whirlpool Jack Probe
16	WP9755547 Whirlpool Lockwasher
17	WP9755546 Whirlpool Locknut
18	W11718046 Whirlpool Rack
19	WP9755542 Whirlpool Oven Meat Probe
